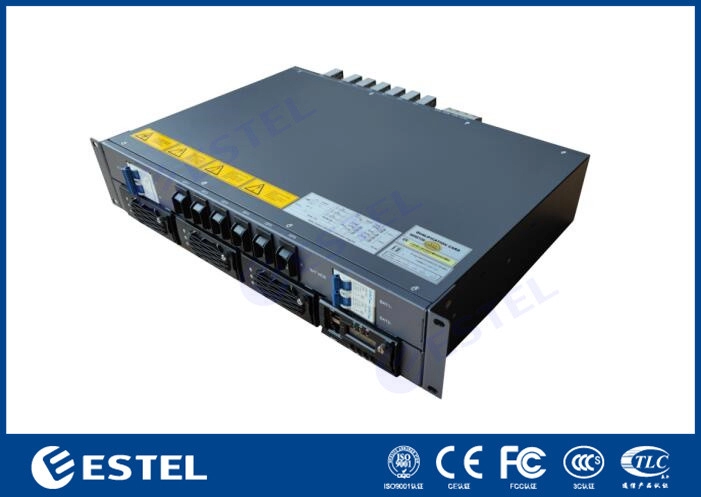

A power rectifier system converts alternating current (AC) to direct current (DC), supplying stable power to devices. Its capacity directly impacts system performance and reliability. Recent trends show growing demand for efficient rectifiers due to renewable energy applications and innovations like Schottky diodes. When building outdoor power cabinets, knowing how to calculate capacity ensures optimal configuration.
Begin by checking the input voltage and output current. Correct measurements help the system work well and stay reliable.
Think about efficiency when figuring out capacity. Better efficiency saves energy and makes the system work better.
Add safety margins to your calculations. A 20-30% extra buffer handles surprise power needs and keeps the system dependable.
When I calculate capacity for a power rectifier system, I always start by understanding the input voltage and output current. These two parameters form the foundation of any capacity calculation. Input voltage refers to the AC power supplied to the rectifier, while output current is the DC power delivered to the connected devices.
One thing I’ve learned is that input voltage can vary depending on the power source. For example, fluctuations in AC voltage can affect the rectifier's performance. The ratio of DC output power to AC input power is always less than 1 because some energy is lost as heat. In systems without proper filtering, additional losses occur due to the heating of load resistors. Even in filtered systems, components like filter capacitors and diodes contribute to power losses. These factors highlight why precise measurements of input voltage and output current are critical.
To ensure accuracy, I recommend using tools like power analyzers. These devices can measure over 100 parameters, including power factor and harmonic distortion. They also provide real-time calculations, which help identify inefficiencies caused by nonlinear loads or harmonics. By addressing these issues, I can optimize the rectifier's performance and improve its capacity.
Efficiency plays a significant role in determining the capacity of a power rectifier system. When I evaluate efficiency, I look at how much of the input power is converted into usable output power. Higher efficiency means less energy is wasted, which directly impacts the system's capacity.
For industrial applications or outdoor power cabinets, efficiency improvements can lead to substantial energy savings. Manufacturers are constantly enhancing rectifier modules to meet the growing demand for energy-efficient solutions. This trend not only reduces energy losses but also supports sustainability efforts. For instance, high-efficiency rectifiers are essential in transportation systems and power utilities, where large-scale power demands exist.
I’ve noticed that even small improvements in efficiency can make a big difference. For example, reducing energy losses in components like diodes and capacitors can significantly enhance overall performance. When I calculate capacity, I always factor in the rectifier's efficiency rating to ensure the system can handle the required load without unnecessary energy waste.
Understanding the load requirements is another key step when I calculate capacity. The load refers to the total power demand of all devices connected to the rectifier system. To determine this, I add up the power consumption of each device. However, I never stop there. I also include a safety margin to account for unexpected increases in demand or future expansions.
Safety margins are crucial for system reliability. Without them, the rectifier might struggle to handle sudden surges in power demand. I typically add a 20-30% buffer to the total load requirement. This ensures the system operates efficiently even under peak conditions.
Another factor I consider is the impact of harmonics on the load. Nonlinear loads, such as those found in modern power-conversion equipment, can distort voltage and current waveforms. This distortion reduces the system's efficiency and can lead to overheating in transformers. To address this, I use active power factor correction (PFC) techniques. PFC minimizes the negative effects of harmonics and ensures the power factor remains close to 1.0, which is ideal for efficient operation.
By carefully analyzing load requirements and incorporating safety margins, I can design a rectifier system that meets current needs while remaining flexible for future demands.
When I calculate capacity for a power rectifier system, I always start with the basic formula:
Power (P) = Voltage (V) x Current (I)
This formula helps me determine the total power output of the rectifier. Voltage (V) represents the DC output voltage, while Current (I) is the total current drawn by the connected devices. For example, if my system operates at 120 volts and delivers 10 amps of current, the total power output would be:
P = 120 V x 10 A = 1200 W
This calculation gives me a clear understanding of the rectifier's capacity to support the connected load. I always ensure that the rectifier's rated capacity exceeds this value to account for efficiency losses and safety margins.
To illustrate, let me walk you through an example calculation for an outdoor power cabinet. Suppose I need to support devices with a combined energy demand of 3245 Wh. I also consider several adjustment factors to ensure the system operates reliably under real-world conditions. Here's a breakdown:
Parameter | Value |
---|---|
Energy Demand (E_de) | 3245 Wh |
Adjustment Factor (k_af) | 1.30 |
Temperature Correction Factor (k_tcf) | 0.96 |
Cycle Life Adjustment Factor (k_crt) | 1.12 |
DC Voltage (V_dc) | 120 V |
Minimum Depth of Discharge (k_mdod) | 0.75 |
Minimum Battery Capacity (C_min) | 50.4 Ah |
Using these values, I calculate the minimum battery capacity as follows:
C_min = (E_de x k_af x k_tcf x k_crt) / (V_dc x k_mdod)
C_min = (3245 x 1.30 x 0.96 x 1.12) / (120 x 0.75)
C_min ≈ 50.4 Ah
This calculation shows that I need a battery with a minimum capacity of 50.4 Ah to meet the energy demand. For instance, a 50 Ah battery operating at a 2C rate can deliver 100 amps, which is sufficient for this setup. This step ensures I select the right components for my outdoor power cabinet.
Real-world conditions often differ from ideal scenarios. I always adjust my calculations to account for factors like temperature variations, aging components, and unexpected load increases. For example, high temperatures can reduce battery efficiency, while aging rectifiers may lose some of their capacity over time.
To address these challenges, I include safety factors in my calculations. I typically add a 20-30% buffer to the total load requirement. This ensures the system can handle sudden surges in power demand without compromising performance. Additionally, I monitor the ripple voltage, which can affect sensitive devices. Keeping the ripple voltage within acceptable limits helps maintain system stability.
By considering these adjustments, I can design a power rectifier system that performs reliably under various conditions. This approach not only ensures optimal performance but also extends the lifespan of the system components.
When I calculate capacity for a power rectifier system, I often encounter challenges that require careful attention. One common issue involves diode characteristics. Diodes can behave unpredictably under varying input power levels, which affects the rectifier's efficiency. Impedance behavior also plays a role. High impedance can limit the system's ability to handle fluctuating loads effectively.
Another challenge arises when designing rectifiers for systems with wide-ranging input power levels. I’ve found that using two-branch topologies can help manage these variations. This design approach ensures the rectifier performs well across different power levels. Load resistance is another factor to consider. High resistance can reduce the system's power-handling capability. To address this, I choose rectifiers that are less sensitive to input RF power, ensuring stable performance even under demanding conditions.
Configuring power distribution panels requires a systematic approach. I start by mapping out the load requirements for each connected device. This helps me allocate power efficiently and avoid overloading circuits. I always label each circuit clearly to simplify troubleshooting and maintenance.
To enhance reliability, I use circuit breakers or fuses that match the load capacity. These components protect the system from electrical faults. I also ensure proper grounding to prevent voltage spikes and reduce the risk of damage to sensitive equipment. For outdoor power cabinets, I select weather-resistant panels to withstand harsh conditions. This ensures the system remains operational in extreme environments.
Backup time is critical for uninterrupted operation during power outages. I calculate the required backup time based on the energy demand of connected devices. For example, if my system supports devices with a combined demand of 3000 Wh and I need 2 hours of backup, I select batteries with sufficient capacity to meet this requirement.
Ripple voltage is another important consideration. Excessive ripple voltage can interfere with sensitive devices, causing malfunctions. I use capacitors and filters to minimize ripple voltage and maintain system stability. Monitoring ripple voltage regularly helps me ensure the rectifier operates within acceptable limits.
Calculating rectifier capacity involves understanding key factors like input voltage, output current, efficiency, and load requirements. I always ensure to include safety margins and adjust for real-world conditions like temperature and aging components. For example, ripple voltage and load current directly influence required capacitance, as shown below:
Load Current (A) | Ripple Voltage (Vpp) | Frequency (Hz) | Required Capacitance (uF) |
---|---|---|---|
0.5 | 7 | 100 | 740 |
1.5 | 5 | 100 | 3000 |
By following these steps, I can design reliable systems. I encourage you to apply this guide to your outdoor power cabinets for optimal performance.
