Applications and Analysis of Different Cooling Methods for Telecom Cabinets

Efficient cooling systems play a critical role in maintaining the performance and reliability of telecom cabinets. Without effective temperature control, overheating can lead to equipment malfunctions, reduced hardware lifespan, and unexpected downtime. Cold water-based cooling systems, for instance, dissipate heat more efficiently due to water's superior heat capacity. These systems also provide targeted cooling to heat-generating components, preventing thermal fluctuations that could damage sensitive equipment. By maintaining optimal temperatures, cooling solutions not only enhance operational efficiency but also reduce maintenance costs and extend the lifespan of telecom hardware.

Key Takeaways

• Cooling systems stop telecom cabinets from overheating. Overheating can break equipment and raise repair costs.

• Natural cooling saves energy and works for low heat. But it’s not good for very hot or crowded setups.

• Fan cooling moves air around to control heat. It works well indoors and outdoors for medium heat levels.

• TEC air conditioning keeps temperatures exact. It’s great for tough conditions and protects delicate equipment.

• Heat exchangers handle heat well and block dirt. They are good for crowded setups and outdoor use.

• Picking the right cooling depends on weather, equipment needs, and budget to work best.

• Energy-saving cooling systems save money over time and help the planet.

• Taking care of cooling systems is key to making them last. Different systems need different levels of care.

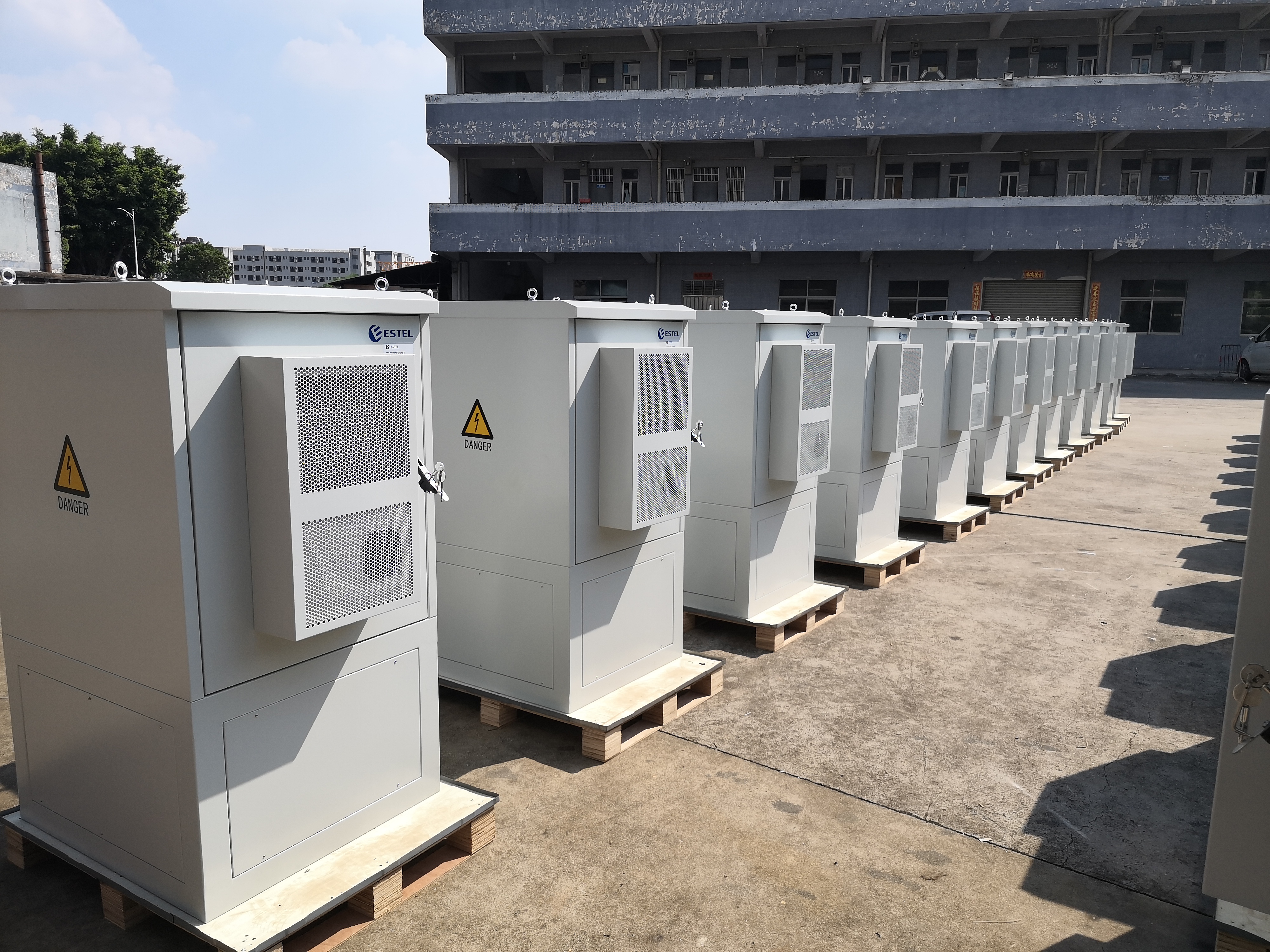

Cooling Methods for Telecom Cabinets

Natural Cooling

Mechanism and Functionality

Natural cooling relies on passive heat dissipation to regulate the temperature inside a telecom cabinet. This method uses the principles of convection and conduction to transfer heat from the internal components to the surrounding environment. Vents or perforations in the cabinet's design facilitate airflow, allowing hot air to escape while cooler air enters. Since it does not require mechanical components, natural cooling operates silently and consumes no additional energy. However, its effectiveness depends heavily on ambient temperature and airflow conditions.

Suitable Applications

Natural cooling is best suited for telecom cabinets in low-heat scenarios where equipment generates minimal thermal output. It works well in environments with moderate ambient temperatures and sufficient ventilation. For example, outdoor telecom cabinets in shaded areas with consistent airflow can benefit from this method. However, it may not be ideal for high-density setups or regions with extreme temperatures.

Fan Cooling

Mechanism and Functionality

Fan cooling enhances heat dissipation by actively circulating air within the telecom cabinet. Fans draw cooler air into the cabinet while expelling hot air, creating a continuous airflow cycle. This method significantly improves temperature regulation compared to natural cooling. According to a comparative study, fan cooling can maintain an internal cabinet temperature of 25°C when the ambient temperature is 40°C, resulting in a 15°C temperature difference. Without fans, the internal temperature rises to 44°C, demonstrating the method's efficiency.

Suitable Applications

Fan cooling is ideal for telecom cabinets with moderate heat loads. It is commonly used in indoor installations or outdoor setups with controlled ambient conditions. For instance, cabinets housing mid-range telecom equipment in data centers or urban environments often rely on fan cooling. This method provides a cost-effective solution for maintaining operational efficiency without the need for advanced cooling systems.

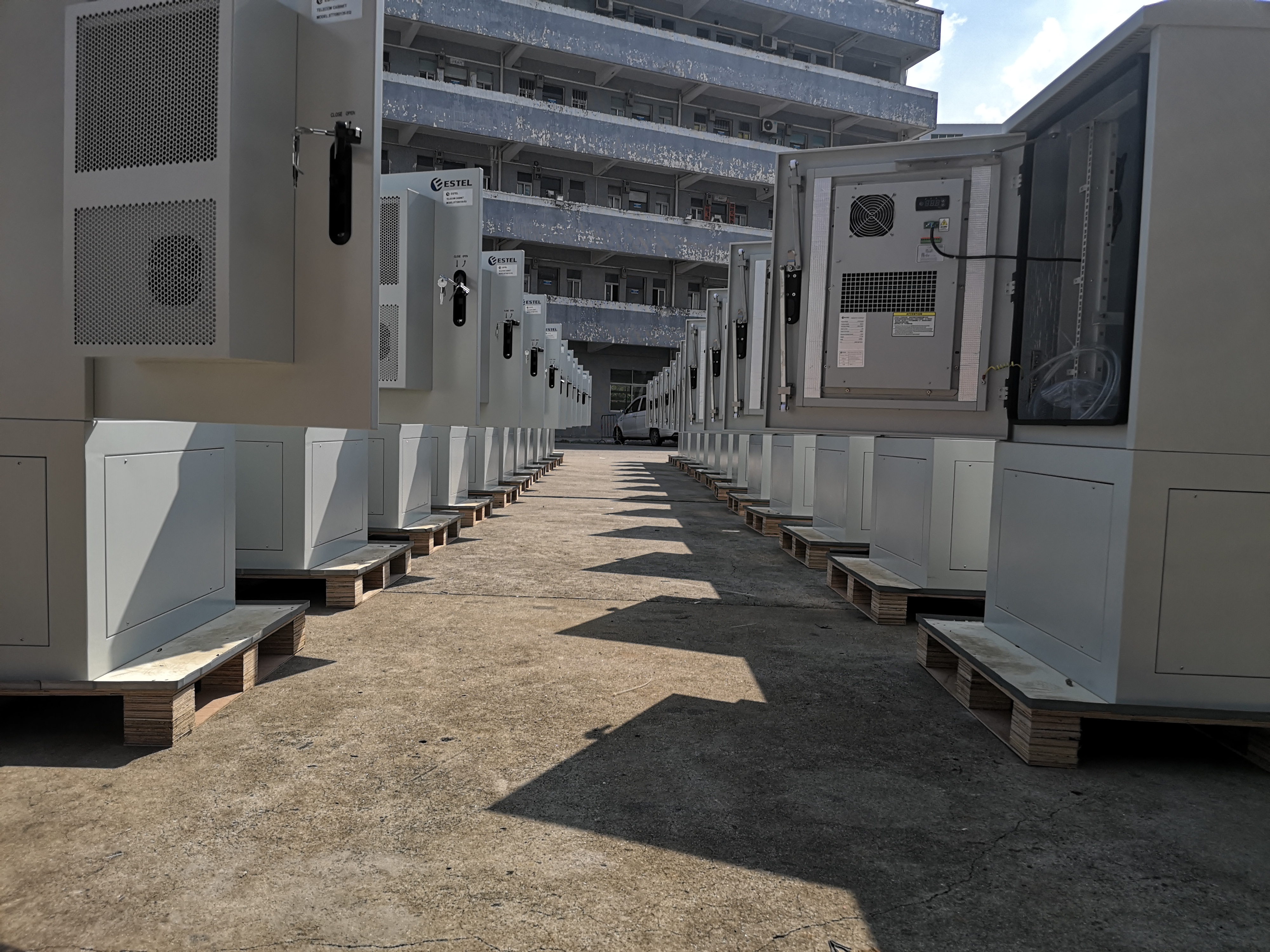

TEC Air Conditioning

Mechanism and Functionality

Thermoelectric cooling (TEC) air conditioning uses the Peltier effect to transfer heat from inside the telecom cabinet to the external environment. This method employs thermoelectric modules powered by electricity to create a temperature gradient. TEC systems are highly effective in maintaining stable internal temperatures, even in extreme conditions. For example, TEC air conditioners can reduce the internal temperature to 25°C when the ambient temperature is 40°C, achieving a 15°C temperature difference. This level of precision makes TEC air conditioning a reliable choice for high-performance cooling.

Suitable Applications

TEC air conditioning is best suited for telecom cabinets requiring precise temperature control, especially in high-density or high-performance scenarios. It is commonly used in outdoor installations exposed to harsh environmental conditions, such as remote telecom towers or industrial sites. TEC systems are also ideal for protecting sensitive equipment that cannot tolerate thermal fluctuations.

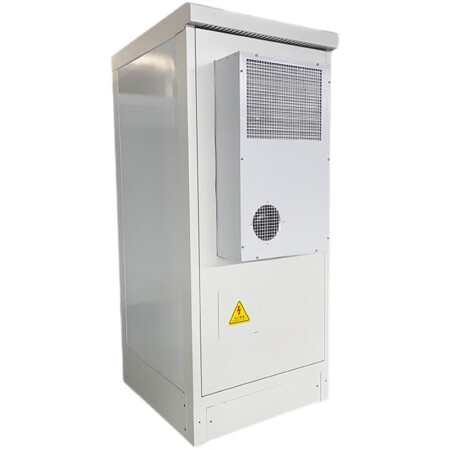

Heat Exchanger Systems

Mechanism and Functionality

Heat exchanger systems are highly efficient cooling solutions designed to regulate the internal temperature of telecom cabinets. These systems operate by transferring heat from the interior of the cabinet to the external environment without mixing the internal and external air. This process typically involves air-to-air or air-to-liquid heat exchangers. Air-to-air systems use fans to circulate air across heat-conductive surfaces, while air-to-liquid systems rely on a liquid medium to absorb and dissipate heat. Both methods ensure that sensitive electronic components remain protected from external contaminants like dust and moisture.

The efficiency of heat exchangers is well-documented. For instance, air-to-air heat exchangers with double-sided impingement cooling technology can handle twice the heat load compared to conventional systems. Additionally, these systems can cool cabinet interiors to within 5°F above ambient temperature, even under high electrical loads and extreme environmental conditions. The HTX Series from VoltAire Systems exemplifies this efficiency, featuring a rain guard deflector to prevent leaks and ensure durability. Similarly, Aavid Thermacore's HX series employs heat pipes for effective two-phase heat absorption, enhancing thermal management.

Compared to traditional cooling methods, heat exchangers also offer significant energy savings. Envicool's industrial cooling systems, for example, consume less power and achieve over 40% energy savings, making them an environmentally friendly choice for telecom applications.

Suitable Applications

Heat exchanger systems are versatile and can be deployed in various scenarios. Their ability to maintain stable temperatures and protect against contaminants makes them ideal for:

• High-density telecom cabinets: These systems efficiently manage the heat generated by densely packed electronic components.

• Outdoor installations: Heat exchangers perform well in harsh environments, such as remote telecom towers, where dust and moisture are prevalent.

• Industrial settings: Their robust design ensures reliable operation in facilities with high ambient temperatures and heavy electrical loads.

• Sensitive equipment protection: The closed-loop design prevents external air from entering, safeguarding delicate electronics from environmental pollutants.

By offering a combination of efficiency, reliability, and energy savings, heat exchanger systems provide a robust cooling solution for telecom cabinets across diverse applications.

Comparative Analysis of Cooling Methods

Temperature Control

Performance in Extreme Conditions

Effective cooling systems are essential for maintaining the functionality of telecom cabinets under extreme temperature conditions. High temperatures can severely damage electronic components, leading to erroneous readings or even fried circuit boards. Cooling methods like TEC air conditioning and heat exchanger systems excel in such scenarios. TEC air conditioning, for instance, can maintain a stable internal temperature of 25°C even when the ambient temperature reaches 40°C. This precision ensures the protection of critical telecom equipment and energy storage systems, especially in unattended base stations that operate continuously.

Evaluating cooling options during the design stage is crucial for optimal performance. Decisions regarding heat load and cooling methods should align with the equipment's thermal requirements. Intelligent cooling systems, such as heat exchangers, are particularly effective in harsh environments, where they prevent contaminants like dust and moisture from entering the cabinet. These systems ensure reliable operation, even in remote or industrial settings.

Suitability for High-Density Telecom Cabinets

High-density telecom cabinets generate significant heat due to the compact arrangement of electronic components. Cooling methods like heat exchangers and TEC air conditioning are well-suited for these scenarios. Heat exchangers, with their closed-loop design, efficiently manage heat loads while protecting sensitive equipment from external pollutants. For example, air-to-air heat exchangers can cool cabinet interiors to within 5°F above ambient temperature, even under heavy electrical loads.

TEC air conditioning offers precise temperature control, making it ideal for high-performance applications. Its ability to handle extreme heat loads ensures the longevity and reliability of densely packed telecom equipment. Fan cooling, while effective for moderate heat loads, may struggle to maintain optimal temperatures in high-density setups, highlighting the importance of selecting the right cooling method.

Energy Efficiency

Power Consumption and Environmental Impact

Energy efficiency is a critical factor when evaluating cooling methods for telecom cabinets. Systems like DAC Thermal Cooling demonstrate exceptional performance, reducing electricity consumption by up to 75% compared to traditional HVAC systems. This significant reduction not only lowers operational costs but also minimizes the environmental impact of cooling operations.

Heat exchangers also offer substantial energy savings. For instance, industrial cooling systems from Envicool achieve over 40% energy savings, making them an environmentally friendly choice. Natural cooling, while energy-efficient due to its passive design, is limited to low-heat scenarios and may not be suitable for high-density or extreme environments. Fan cooling strikes a balance between energy efficiency and performance, making it a cost-effective option for moderate heat loads.

Efficiency in Different Environments

The efficiency of a cooling method often depends on the environment in which it operates. Natural cooling performs well in shaded outdoor areas with consistent airflow but struggles in regions with high ambient temperatures. Fan cooling is versatile, functioning effectively in both indoor and outdoor settings with controlled conditions.

Heat exchangers and TEC air conditioning excel in harsh environments. Heat exchangers protect against contaminants like dust and moisture, ensuring reliable operation in industrial or remote locations. TEC air conditioning, with its precise temperature control, is ideal for extreme conditions, such as outdoor telecom towers exposed to fluctuating weather. These methods provide consistent performance across diverse environments, ensuring the protection of telecom equipment.

Cost-Effectiveness

Installation and Operational Costs

The cost-effectiveness of a cooling method depends on its installation and operational expenses. Modular systems, for example, reduce total cost of ownership by 18% while increasing equipment lifespan by 30%. Scalable systems offer similar benefits, with cost reductions ranging from 15-20%.

The table below compares the cost reduction and energy waste reduction percentages for various cooling methods:

Natural cooling has minimal installation costs but limited applicability. Fan cooling offers a cost-effective solution for moderate heat loads, while heat exchangers and TEC air conditioning require higher initial investments but provide long-term savings through energy efficiency and reduced maintenance.

Long-Term Financial Implications

Long-term financial performance is a key consideration when selecting a cooling method. DAC Thermal Cooling systems, for instance, achieve up to 75% energy savings compared to traditional HVAC systems, significantly reducing electricity costs over time. These savings make DAC solutions a cost-effective choice for telecom cabinets.

Heat exchangers also deliver long-term benefits by extending equipment lifespan and reducing maintenance requirements. Their closed-loop design minimizes exposure to contaminants, lowering the risk of equipment failure. TEC air conditioning, while more expensive initially, offers precise temperature control and reliability, ensuring the protection of high-value telecom equipment. These factors contribute to the overall cost-effectiveness of advanced cooling methods.

Reliability and Maintenance

Durability and Lifespan

The durability and lifespan of cooling systems directly impact the reliability of telecom cabinets. Proper cooling prevents overheating, which is a leading cause of equipment failure. Studies indicate that 65% of IT equipment faults stem from inadequate cooling, underscoring the importance of robust cooling solutions.

Cooling systems designed for harsh environments often feature advanced protective measures. For instance, ESTEL's cooling products include IP55-rated enclosures, which shield against dust and water ingress. These systems also operate effectively in extreme temperatures, ranging from -40°C to 70°C. Such resilience ensures uninterrupted performance, even in challenging conditions.

Materials used in cooling systems further contribute to their longevity. High-quality components resist wear and tear, reducing the likelihood of system breakdowns. This durability minimizes the need for frequent replacements, enhancing the overall reliability of the telecom cabinet.

Tip: Investing in durable cooling systems reduces the risk of equipment failure and extends the lifespan of telecom infrastructure.

Maintenance Requirements and Costs

Maintenance plays a crucial role in ensuring the long-term performance of cooling systems. Different cooling methods have varying maintenance needs, which influence their operational costs. The table below compares the maintenance requirements and expenses of refrigerant-based and water-cooling systems:

Refrigerant-based systems generally incur lower operating expenses due to minimal maintenance requirements. These systems do not require periodic flushing, and the cost of refrigerants like R134a is typically included in the initial investment. In contrast, water-cooling systems demand more frequent upkeep. Regular flushing is necessary to prevent blockages, and additives must be applied every two to three years to combat corrosion and microbial growth.

Maintenance costs also depend on the complexity of the cooling system. Advanced solutions, such as heat exchangers, often feature closed-loop designs that reduce exposure to contaminants. This design minimizes cleaning and repair needs, lowering long-term maintenance expenses. However, these systems may require higher initial investments.

Note: Choosing a cooling method with manageable maintenance requirements can significantly reduce operational costs over time.

Key Factors in Choosing a Cooling Method for Telecom Cabinets

Environmental and Installation Conditions

Indoor vs. Outdoor Applications

The environment where a telecom cabinet operates significantly influences the choice of cooling method. Indoor installations typically benefit from controlled ambient conditions, such as stable temperatures and minimal exposure to contaminants. In these settings, fan cooling or heat exchanger systems often provide sufficient thermal management. These methods ensure efficient heat dissipation without requiring advanced protective measures.

Outdoor applications, however, present unique challenges. Cabinets in these environments must endure fluctuating temperatures, high humidity, and potential exposure to dust and pollutants. Cooling systems designed for outdoor use, such as TEC air conditioning or closed-loop heat exchangers, offer robust solutions. These systems prevent external air from entering the cabinet, safeguarding sensitive equipment from environmental contaminants. For example, intelligent cooling technologies adjust cooling intensity based on internal temperatures, ensuring energy efficiency and equipment longevity.

Tip: When selecting a cooling method, consider the specific environmental conditions to ensure optimal performance and durability.

Impact of Ambient Temperature and Humidity

Ambient temperature and humidity levels directly affect the performance of cooling systems. High temperatures increase the thermal load on telecom cabinets, necessitating more efficient cooling solutions. For instance, TEC air conditioning can maintain stable internal temperatures even when external conditions are extreme. Conversely, natural cooling methods may struggle in such environments, as their effectiveness depends on moderate ambient temperatures.

Humidity poses additional challenges, particularly in outdoor installations. Excess moisture can lead to condensation, which may damage electronic components. Closed-loop systems, such as heat exchangers, mitigate this risk by isolating internal air from external conditions. A study titled "Evaluation of Free Cooling Technique at the Telecom Cell Site in Ghana" highlights the importance of considering ambient temperature and humidity when evaluating cooling methods.

Equipment and Space Considerations

Heat Sensitivity of Telecom Equipment

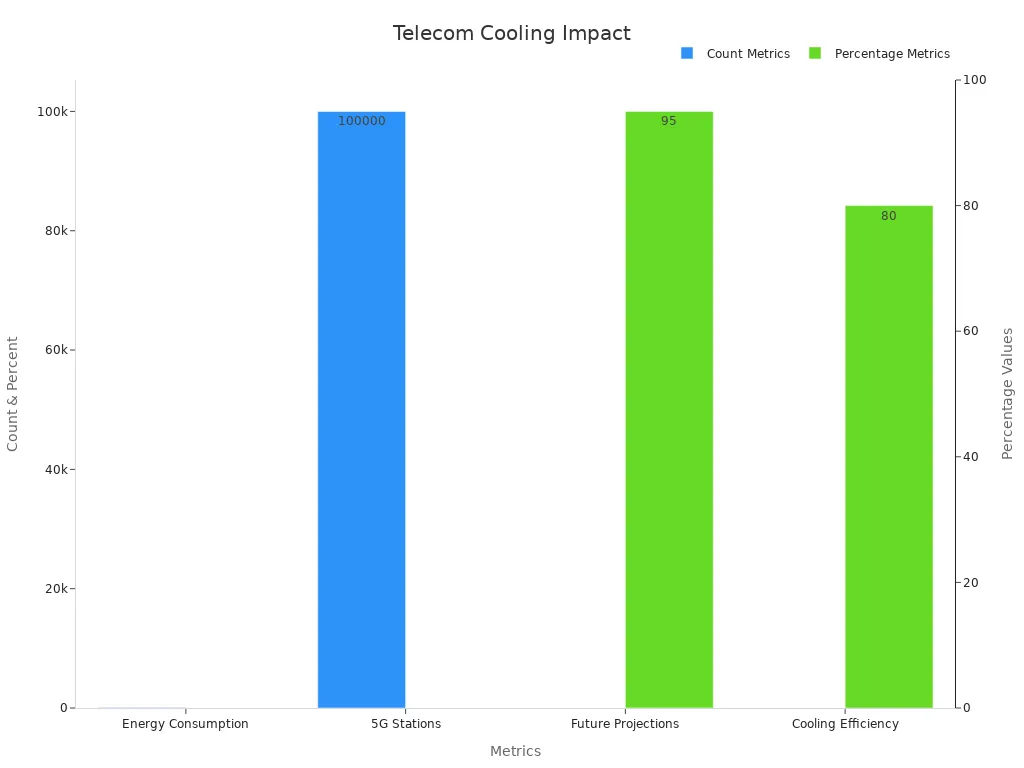

Telecom equipment generates significant heat during operation, particularly in high-density setups. The heat sensitivity of this equipment necessitates precise temperature control to prevent malfunctions and extend its lifespan. For instance, a single 5G station consumes as much power as 73 households, underscoring the importance of effective cooling.

Free cooling methods, such as natural ventilation, can reduce chiller operating hours and energy usage by an average of 80%. However, these methods may not be suitable for sensitive equipment in extreme environments. Advanced cooling solutions, like TEC air conditioning, provide the precision required to protect high-value assets.

Space Constraints in Telecom Cabinets

Space limitations within telecom cabinets also influence the choice of cooling method. Compact cabinets with densely packed components generate more heat and require efficient cooling solutions. Heat exchangers and TEC air conditioning systems are ideal for these scenarios, as they offer high performance without occupying excessive space.

Fan cooling, while effective for moderate heat loads, may not provide adequate cooling for high-density setups. Natural cooling methods, which rely on passive airflow, are similarly limited in their ability to manage heat in confined spaces. Selecting a cooling method that aligns with the cabinet's spatial constraints ensures optimal thermal management and equipment protection.

Budget and Sustainability Goals

Balancing Costs with Energy Savings

Budget considerations play a crucial role in selecting a cooling method. While advanced systems like TEC air conditioning and heat exchangers require higher initial investments, they offer long-term savings through reduced energy consumption and maintenance costs. For example, DAC Thermal Cooling systems achieve up to 75% energy savings compared to traditional HVAC systems, significantly lowering operational expenses.

Natural cooling methods, with minimal installation costs, provide an economical option for low-heat scenarios. Fan cooling strikes a balance between cost and performance, making it suitable for moderate heat loads. By evaluating both upfront costs and long-term savings, organizations can choose a cooling method that aligns with their financial goals.

Aligning with Sustainability Objectives

Sustainability has become a key consideration in the telecom industry. Cooling methods that minimize energy consumption and environmental impact are increasingly preferred. Heat exchangers, for instance, achieve over 40% energy savings, making them an environmentally friendly choice. Similarly, intelligent cooling technologies adjust cooling intensity based on internal temperatures, reducing energy waste and carbon emissions.

Organizations aiming to meet sustainability objectives should prioritize energy-efficient cooling solutions. By aligning cooling strategies with environmental goals, they can reduce their carbon footprint while ensuring the reliability of telecom cabinets.

Real-World Applications of Cooling Methods

Natural Cooling in Low-Heat Scenarios

Example Use Case

Natural cooling proves effective in environments where telecom equipment generates minimal heat. A practical example involves outdoor telecom cabinets installed in shaded areas with consistent airflow. These cabinets often house low-power equipment, such as signal repeaters or small-scale communication modules. The passive design of natural cooling systems allows heat to dissipate through vents or perforations, maintaining a stable internal temperature without additional energy consumption.

In a rural setting, a telecom provider deployed natural cooling for cabinets located in a temperate climate. The ambient temperature rarely exceeded 25°C, ensuring the system's efficiency. The absence of mechanical components reduced maintenance needs, while the silent operation minimized noise pollution. This approach demonstrated how natural cooling could provide a cost-effective and environmentally friendly solution for low-heat scenarios.

Fan Cooling for Moderate Heat Loads

Example Use Case

Fan cooling is widely used in telecom cabinets that handle moderate heat loads. A notable application can be found in urban data centers where mid-range telecom equipment operates. These cabinets often require active airflow to maintain optimal temperatures, especially in indoor environments with limited ventilation.

For instance, a mid-sized data center in a metropolitan area implemented fan cooling to manage the heat generated by its telecom cabinets. The system utilized multiple fans to circulate air, drawing cooler air into the cabinet while expelling hot air. This setup maintained an internal temperature of 25°C, even when the ambient temperature reached 35°C. The cost-effective nature of fan cooling made it an ideal choice for the facility, balancing performance with affordability. Regular maintenance, such as cleaning fan blades and replacing filters, ensured the system's longevity and reliability.

TEC Air Conditioning for High-Performance Needs

Example Use Case

TEC air conditioning excels in scenarios requiring precise temperature control and high-performance cooling. A prime example involves outdoor telecom cabinets located in remote areas with extreme environmental conditions. These cabinets often house sensitive equipment, such as 5G base stations or advanced networking modules, which demand consistent thermal management.

In a desert region, a telecom operator installed TEC air conditioning systems to protect its outdoor cabinets. The ambient temperature frequently exceeded 40°C, posing a significant challenge for traditional cooling methods. TEC systems maintained an internal temperature of 25°C, ensuring the equipment's reliability and performance. The closed-loop design prevented dust and moisture from entering the cabinet, safeguarding sensitive components. Although the initial investment was higher, the long-term benefits, including reduced maintenance and extended equipment lifespan, justified the cost.

Heat Exchangers in High-Density Telecom Cabinets

Example Use Case

Heat exchangers provide an efficient cooling solution for high-density telecom cabinets, especially in environments with significant heat loads. A notable example involves a telecom provider managing a data center with densely packed equipment. The facility faced challenges in maintaining optimal temperatures due to the high concentration of electronic components. Traditional cooling methods, such as fan cooling, proved insufficient in handling the heat generated by the equipment.

The provider implemented air-to-air heat exchangers to address the issue. These systems utilized a closed-loop design to transfer heat from the cabinet's interior to the external environment. This approach ensured that the internal air remained isolated from contaminants like dust and moisture. The heat exchangers maintained the cabinet's internal temperature within 5°F above the ambient temperature, even during peak operational hours.

The installation process highlighted the adaptability of heat exchangers. The compact design allowed seamless integration into the existing cabinet infrastructure without requiring significant modifications. The system's energy efficiency also contributed to reduced operational costs. For instance, the heat exchangers consumed 40% less energy compared to traditional cooling systems, aligning with the provider's sustainability goals.

Maintenance requirements for the heat exchangers were minimal. The closed-loop system reduced the need for frequent cleaning, as external air did not enter the cabinet. Routine inspections ensured the system's longevity and reliability. The provider reported a significant decrease in equipment failures, attributing this improvement to the consistent thermal management provided by the heat exchangers.

This example underscores the effectiveness of heat exchangers in high-density telecom cabinets. Their ability to handle substantial heat loads, combined with energy efficiency and low maintenance needs, makes them a preferred choice for modern telecom applications. By adopting heat exchangers, organizations can enhance the reliability and lifespan of their equipment while achieving cost savings and environmental benefits.

Tip: When selecting a cooling method for high-density setups, consider the long-term benefits of energy-efficient solutions like heat exchangers. Their closed-loop design ensures optimal performance and protection against environmental contaminants.

Selecting the appropriate cooling method is crucial for maintaining the performance and longevity of a telecom cabinet. Each cooling solution offers unique advantages and limitations. Natural cooling provides an energy-efficient option for low-heat scenarios, while fan cooling balances cost and performance for moderate heat loads. TEC air conditioning ensures precise temperature control in extreme conditions, and heat exchangers excel in high-density setups with significant heat loads.

To choose the most suitable solution, organizations should evaluate environmental conditions, equipment requirements, and budget constraints. Prioritizing energy efficiency and long-term reliability ensures optimal thermal management and reduced operational costs.

FAQ

What is the most energy-efficient cooling method for telecom cabinets?

Heat exchangers and TEC air conditioning systems are among the most energy-efficient options. Heat exchangers, in particular, can achieve up to 40% energy savings by isolating internal air and reducing power consumption. TEC systems also optimize energy use while maintaining precise temperature control.

Can natural cooling be used in high-density telecom cabinets?

Natural cooling is not suitable for high-density telecom cabinets. It relies on passive airflow, which cannot handle the significant heat generated by densely packed equipment. Advanced methods like heat exchangers or TEC air conditioning are better suited for such scenarios.

How does ambient temperature affect cooling performance?

Ambient temperature directly impacts cooling efficiency. High temperatures increase the thermal load, requiring more robust cooling solutions like TEC air conditioning. Conversely, natural cooling performs well in moderate climates but struggles in extreme heat. Selecting a method based on environmental conditions ensures optimal performance.

What are the maintenance requirements for cooling systems?

Maintenance needs vary by method. Natural cooling requires minimal upkeep, while fan cooling involves regular cleaning of blades and filters. Heat exchangers and TEC systems demand occasional inspections but have lower maintenance costs due to their closed-loop designs, which prevent contamination.

Are cooling systems for outdoor cabinets different from indoor ones?

Yes, outdoor cooling systems must withstand harsh conditions like temperature fluctuations, humidity, and pollutants. Closed-loop systems, such as heat exchangers and TEC air conditioning, are ideal for outdoor use. Indoor systems, like fan cooling, operate effectively in controlled environments with stable temperatures.

What factors should guide the choice of a cooling method?

Key factors include environmental conditions, equipment heat sensitivity, cabinet density, and budget. For example, TEC air conditioning suits extreme climates, while fan cooling works for moderate heat loads. Evaluating these factors ensures the chosen method aligns with operational needs and sustainability goals.

How do cooling systems contribute to equipment longevity?

Effective cooling prevents overheating, which can damage electronic components and reduce their lifespan. Systems like heat exchangers and TEC air conditioning maintain stable temperatures, protecting sensitive equipment. This reduces the risk of failures and extends the operational life of telecom hardware.

Is fan cooling a cost-effective solution?

Fan cooling offers a balance between cost and performance. It is affordable to install and maintain, making it suitable for moderate heat loads. However, it may not provide sufficient cooling for high-density setups or extreme environments, where advanced systems like heat exchangers are more effective.
