What Are DC Power Systems for Telecommunications and How They Work
DC power systems for telecommunications provide steady energy for telecommunication facilities. They convert alternating current into direct current to prevent interruptions. Reliable power is essential, especially with the increasing demand from 5G networks that require greater efficiency.
These systems ensure that power remains available, allowing communication to function effectively. They are designed to operate even during power outages, making DC power systems for telecommunications vital for today’s technology and ensuring that important connections run smoothly.
Key Takeaways
DC power systems give steady energy for telecom, keeping communication running during power outages.
Rectifiers change AC to DC well, with new ones reaching 99% efficiency, saving energy and money.
Batteries are key for backup power; picking the right kind and taking care of them keeps systems working in emergencies.
Monitoring systems improve reliability by spotting problems early, helping fix them fast and cutting downtime.
DC power systems can grow, making them perfect for expanding telecom networks, especially with 5G technology growing.
Components of DC Power Systems for Telecommunications
Rectifiers and AC to DC Conversion
Rectifiers are important in DC power systems. They change alternating current (AC) into direct current (DC). This gives telecom equipment a steady power supply. High efficiency is key, especially for 5G networks. Modern rectifiers can be 99% efficient. This lowers energy waste and saves money. They are also small but powerful, with up to 73 watts per cubic inch.
Rectifiers are judged by several factors:
Efficiency Ratings: Full-wave rectifiers work better than half-wave ones.
Peak Inverse Voltage (PIV): Keeps diodes within safe voltage limits.
Ripple Factor: Shows how smooth the DC output is.
Transformer Utilization Factor (TUF): Measures how well the circuit uses power.
Metric | Description |
|---|---|
Efficiency Ratings | Shows how well AC is turned into DC. Full-wave rectifiers are more efficient than half-wave ones. |
Peak Inverse Voltage (PIV) | Ensures diodes stay within their voltage limits to avoid damage. |
Ripple Factor | Checks how steady the DC output is. |
Transformer Utilization Factor (TUF) | Compares DC output to AC input to see circuit efficiency. |
Rectifiers are the heart of DC power systems. They keep telecom networks running smoothly.
Batteries for Backup and Energy Storage
Batteries store energy and provide backup power. They keep systems running during blackouts. Telecom batteries must be strong and reliable. For example, nickel-cadmium (NiCd) batteries handle extreme heat or cold. Lithium-ion batteries last longer, so they need fewer replacements.
Battery reliability depends on these factors:
Redundant setups let systems work even if some batteries fail.
Advanced models predict failure rates using battery parts.
Better battery tech has cut failures from 9 per gigawatt in 2018 to less than 1 by 2023.
Aspect | Evidence |
|---|---|
Reliability Model | Uses batteries and MOSFETs to calculate system reliability. |
Operational Failure Rate | Based on failure rates of batteries and MOSFETs. |
Redundant Battery Topology | Keeps systems working even if some batteries fail. |
Durability | Batteries must handle tough conditions. NiCd batteries work well in extreme temperatures. |
Lifespan Comparison | Lithium-ion batteries last longer than lead-acid ones. |
Failure Rate Improvement | Failures dropped from 9 per GW in 2018 to less than 1 by 2023. |
With strong battery backups, telecom systems stay online during emergencies.
Power Distribution and Load Management
Power distribution sends DC power to telecom devices. Load management balances power use to avoid overloading. This ensures all parts get the power they need.
Modern tools help find and fix power issues. They also reduce wasted energy. Load-sharing spreads power across sources, avoiding strain on one part.
Component | AC Efficiency | DC Efficiency | Efficiency Improvement |
|---|---|---|---|
IT Power Supply | 90.25% | 91.75% | 1.50% |
Overall Power Path | 1.25% | N/A | N/A |
Reduction in Electrical Consumption | N/A | N/A | 0.94% |
Good power distribution and load management keep DC systems reliable and long-lasting.
Monitoring and Control Systems
Monitoring and control systems are key to DC power systems. They help every part work well and stay reliable. By checking power flow, battery health, and system performance, problems can be avoided and operations improved.
Why Monitoring Matters
Monitoring systems watch important details all the time. They warn early when something is wrong, so fixes happen fast. For example:
Watching each battery cell gives clear and correct readings.
Tiny measurements like millivolts and milliamps ensure accurate data.
Special data formats keep system information safe and correct.
These tools keep telecom networks steady, even in tough situations.
Key Features of Control Systems
Control systems handle tasks automatically, reducing manual work. They check DC power system health and spot problems early. A Battery Management System (BMS) is very helpful. It tests itself, finds issues, and fixes them during use or standby.
Critical Parameter | Description |
|---|---|
Continuous Monitoring | Watches battery details to catch problems early. |
Automated Notifications | Alerts workers when limits are passed. |
Data Evaluation | Shows real-time system health and trends. |
Remote Monitoring | Lets experts check data from far away, lowering outage risks. |
Maintenance Cost Reduction | Saves money by cutting on-site checks with good monitoring. |
These features keep systems working well and reduce downtime and repair costs.
Benefits of Monitoring and Control
Using advanced monitoring and control systems has many perks:
Finding problems early stops expensive failures.
Remote checks save time and money by avoiding visits.
Automatic alerts keep you updated without constant checking.
Adding these systems to your DC power setup boosts reliability and makes equipment last longer.
Tip: Look at monitoring data often to find patterns and improve performance. This can stop outages and save repair costs.
Monitoring and control systems are crucial for keeping telecom networks strong. They help you fix problems early and keep services running smoothly.
How DC Power Systems Work
Power Conversion Process
DC power systems change alternating current (AC) into direct current (DC). This gives telecom devices steady energy without interruptions. Rectifiers handle this conversion, making power stable for sensitive equipment.
Voltage regulation keeps the DC output consistent. It stops damage from power surges or drops. Advanced rectifiers save energy and cut costs by being more efficient.
Integration of Components
DC power systems work well because their parts work together. Rectifiers, batteries, power units, and monitoring tools all play a role. They must work as a team to keep services running.
Batteries store energy and help during blackouts. Monitoring tools check battery health and warn about problems. Power units send DC power to devices that need it. When these parts connect properly, the system becomes stronger and more reliable.
Redundancy and Failover Mechanisms
Redundancy and failover systems keep DC power running if something breaks. Backup rectifiers and batteries take over when one fails. This stops service interruptions.
Failover systems switch to backups during outages without stopping operations. This is important because downtime can be very expensive. Tier 4 data centers, with high redundancy, have less than 0.5 hours of downtime yearly.
Tip: Pick a system with strong redundancy to avoid downtime and protect your business.
Applications of DC Power Systems in Telecommunications
Mobile Communication Base Stations

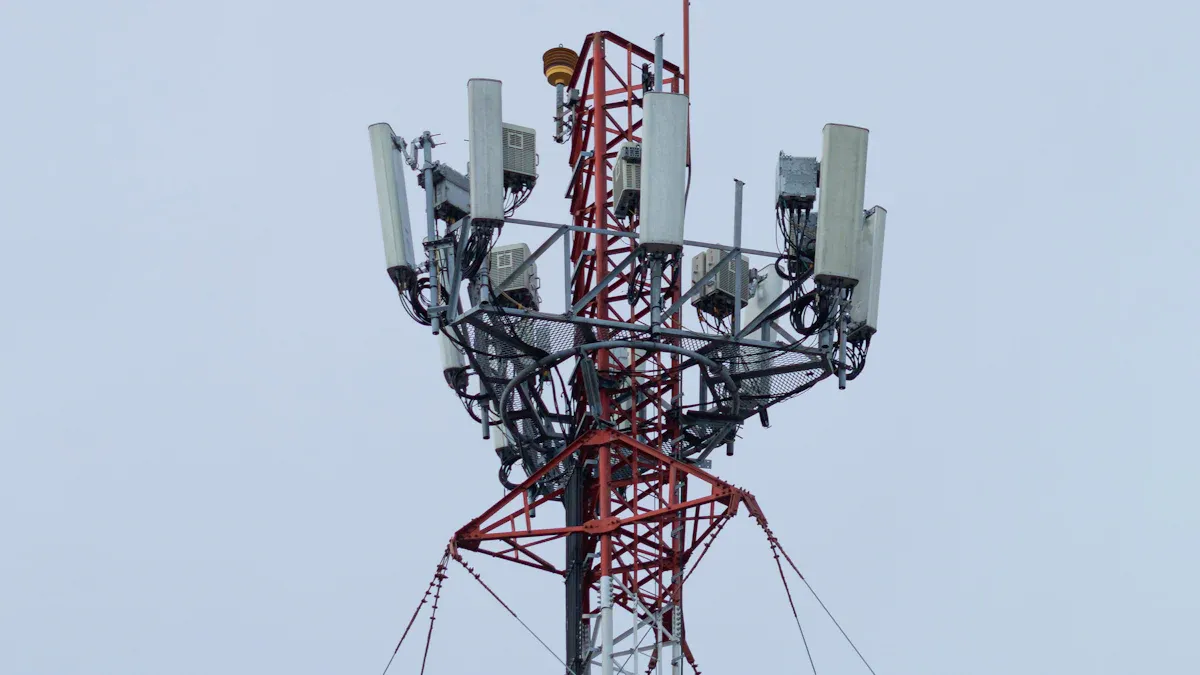

Mobile base stations use DC power systems for steady energy. These systems power important parts like transceivers and signal processors. Their small size makes them easy to install anywhere, like rooftops or remote areas. They are very reliable, even where the power grid is weak.
DC systems save energy by reducing power conversion losses. This lowers costs and helps the environment. For example, hybrid systems with batteries and solar panels are used off-grid. These setups cut diesel use, reduce pollution, and improve sustainability.
Advantage | Description |
|---|---|
High Energy Efficiency | DC systems give direct power to telecom devices, saving energy. |
Compact Size | Small systems fit in tight spaces, like remote locations. |
Reliable Power Supply | They work well even in places with poor grid power. |
The need for mobile networks is growing fast. DC power systems ensure smooth communication, even in tough conditions.
Data Centers and Server Rooms
Data centers need DC power systems for steady energy and uptime. These systems keep IT equipment running without interruptions. Efficiency is measured using Power Usage Effectiveness (PUE). PUE compares total power used to the power IT devices need. Lower PUE means better energy use.
Metric | Description |
|---|---|
Power Usage Effectiveness (PUE) | Measures energy efficiency by dividing total power by IT power. Lower numbers mean better efficiency. |
DC systems also save space with their compact design. This lets you add more equipment in small areas. They also cut cable costs by up to 90%, saving money.
Reliable power is key in today’s digital world.
Utility grids face more pressure, needing smarter power solutions.
Downtime is costly, so better systems are necessary.
Using DC power systems improves reliability and reduces downtime. Your network stays online, even during power outages.
Remote Communication and Rural Networks
DC power systems are crucial for rural and remote networks. They provide steady energy to base stations and routers. This ensures reliable communication in areas with little or no grid power.
Hybrid systems with batteries and solar panels make off-grid setups better. These systems lower diesel use, cut costs, and help the environment. As telecom networks expand to remote areas, DC power systems are in higher demand. They are expected to grow by 9.6% yearly in the coming years.
DC systems help connect rural areas to the world. They ensure even faraway communities stay linked, boosting growth and development.
Emergency Communication Systems
Emergency communication systems use DC power systems to work during crises. These systems keep communication running when the main power fails. They are crucial during disasters, blackouts, or other emergencies.
Why DC Power Systems Are Important
DC power systems give steady energy to emergency devices. They power radios, satellite phones, and control centers. Without them, rescue teams may face delays in helping people.
Note: Reliable power is key for emergency communication. It ensures life-saving messages reach the right people on time.
Features of DC Power Systems for Emergencies
Emergency systems need special features to handle tough situations. DC power systems provide these:
Battery Backup: Stores energy to keep systems working during outages.
Redundancy: Backup parts take over if something breaks.
Durability: Works well in extreme weather like heat or storms.
Remote Monitoring: Lets you check systems from far away.
Feature | Benefit |
|---|---|
Battery Backup | Keeps communication running during power failures. |
Redundancy | Avoids downtime by switching to backups. |
Durability | Works reliably in harsh conditions like floods or storms. |
Remote Monitoring | Helps find and fix problems without being there. |
These features make DC power systems perfect for emergencies.
Real-Life Uses
Emergency systems are used in many places. They are in disaster centers, hospitals, and public safety networks. They also help rural areas with weak power grids.
For example, during hurricanes, DC power systems keep hotlines and alerts active. In remote areas, they power satellite devices, keeping isolated communities connected.
Benefits of DC Power Systems in Emergencies
DC power systems offer many advantages for emergencies:
Reliability: They provide steady power, avoiding blackouts.
Energy Efficiency: They save energy by reducing waste.
Scalability: You can add more parts as needs grow.
These benefits make emergency communication systems reliable and effective.
Tip: Pick DC power systems with strong backups and durable parts for better reliability in emergencies.
Emergency communication systems rely on DC power systems for steady and reliable service. With advanced features and strong designs, these systems help save lives and maintain order during crises.
Advantages of DC Power Systems
Reliability and Uptime
DC power systems are very reliable for telecom networks. They keep systems running by reducing energy loss during power use. Unlike older systems, DC systems waste less energy in cooling and conversion. For example, 380 V DC systems work better than AC ones because they need fewer steps to convert power. This simple design lowers the chance of problems, keeping your network working even in tough times.
Tests using Monte-Carlo simulations show DC systems are more reliable. These tests found that 380 V DC setups perform better than AC ones. One DC system saved about 500 KW of power, which equals over $0.2 million in savings. This mix of reliability and cost savings makes DC systems great for telecom use.
Tip: Choose DC systems with higher voltage to save energy and avoid downtime.
Energy Efficiency and Cost Savings
DC power systems use energy wisely, cutting costs for telecom setups. They can reach over 92% efficiency, lowering energy use. This is helpful for big systems like 5G networks. Using new tech like Gallium Nitride transistors can make DC systems even more efficient and cheaper to run.
DC systems are simple, so they cost less to install and fix. They have fewer parts and take up less space, saving money. Their small size is perfect for tight spaces like telecom centers. Lightweight DC equipment also helps use space better, adding to the savings.
Note: Energy-efficient DC systems save money and help the environment.
Integration with Renewable Energy
DC power systems work well with renewable energy sources like solar panels. Solar and wind power create DC energy directly, skipping extra conversion steps. This makes them more efficient and wastes less energy.
Hybrid systems that mix DC power with renewables are great for places without grid power. These setups use less diesel fuel, cutting costs and pollution. As more people use renewable energy, DC systems will help build greener telecom networks.
Tip: Use hybrid DC systems to save money and lower your carbon footprint.
Scalability for Future Expansion
DC power systems can grow with your telecom network. As communication needs increase, these systems allow easy upgrades. Their modular setup lets you add rectifiers, batteries, or power units. This makes it simple to handle new challenges like 5G or bigger data centers.
Why Scalability Matters
Telecom networks are changing fast. Mobile data use may hit 131 exabytes monthly by 2024. This has grown 30% each year since 2018. Each 5G frequency uses 3.5 to 4.5 kW of power. That’s almost three times more than 4G. Without scalable systems, meeting these needs would cost too much and waste energy.
South Korea’s DongAh Elecomm installed over 300,000 small cell systems. This shows how big telecom infrastructure is growing.
Key Factors Driving Scalability
Key Factors | Description |
|---|---|
Market Growth | Telecom DC Power Systems are growing with higher bandwidth needs. |
Key Catalysts | 5G, data centers, and cloud computing drive demand. |
Market Segmentation | Used in Macro BTS, Outdoor BTS, and Enterprise Networks. |
Current Market Share | Macro BTS and Outdoor BTS lead due to 5G growth. |
Long-term Benefits | High upfront costs save money later with less downtime. |
Benefits of Scalable DC Power Systems
Cost-Effective Growth: Add to your system without replacing old parts.
Future-Ready Design: Handle new tech like 5G and cloud computing.
Operational Efficiency: Avoid downtime and save energy as you expand.
Scalable DC power systems keep your network ready for the future. Investing in them ensures growth while staying efficient and reliable.
Choosing and Maintaining a DC Power System
Key Factors for Selection
Picking the right DC power system is important. It should work well and adapt to changes. A good system keeps things running smoothly and saves energy. Focus on these key points:
Saves energy and works efficiently.
Easy to upgrade when needed.
Can grow with future demands.
Backup features to avoid downtime.
Reliable for steady performance.
Keeps voltage stable at all times.
Controls noise for smooth power flow.
Handles sudden power changes easily.
Choosing a system with these features keeps your network strong and ready for the future.
Battery Selection and Maintenance
Batteries are the heart of a DC power system. Picking the right type and taking care of them is crucial. Here's a simple comparison of battery types:
Battery Type | Temperature Range | Lifespan |
|---|---|---|
VRLA | -20°C to 50°C | 3-8 Years |
Pure Lead Max | -20°C to 50°C | 8-10 Years |
Flooded Lead Acid VLA | -20°C to 50°C | 10-20 Years |
Lithium-Ion | -20°C to 45°C | 8-10 Years |
Lithium-Titanate | -20°C to 55°C | 10-15 Years |
Sodium-Ion | -20°C to 60°C | 10-15 Years |
Nickel Zinc | 0°C to 40°C | 5-10 Years |
Nickel Cadmium | -20°C to 50°C | 10-15 Years |
Taking care of batteries is just as important. Check and clean battery terminals often to stop rust. Watch temperature and humidity to keep conditions right. Test backup systems regularly to make sure they work during emergencies.
Tip: Follow the maker's instructions to avoid problems and make batteries last longer.
Preventative Maintenance Practices
Preventative maintenance helps your DC power system last longer. Regular checks can catch problems early. Using maintenance-free batteries and modular systems makes repairs easier. Monitoring tools also help keep everything running.
Maintenance Task | Benefit |
|---|---|
Regular Checks | Finds problems before they get worse. |
Monitoring Tools | Shows system health in real-time. |
Modular Systems | Makes fixing issues faster and easier. |
Prediction Tools | Helps avoid outages by spotting risks early. |
Taking care of your system regularly improves its life and performance. It also reduces downtime and saves money in the long run.
Note: Preventative maintenance isn’t just about saving money; it’s key to keeping your telecom system working well.
Environmental and Enclosure Considerations
When picking a DC power system, think about the environment and enclosure strength. These factors help your system work well and protect the planet.
Energy-saving DC power systems cut down on carbon emissions. As 5G grows, power use rises a lot. Using energy-smart designs reduces waste and helps the environment. Modern systems use smart setups to save power. This supports bigger networks and meets green goals.
The enclosure is also important. It shields parts from dust, water, and heat. Strong enclosures keep systems working in tough conditions. Look for enclosures with high IP ratings. These ratings show how well they block water and dirt. Outdoor setups need IP65 or better.
Key enclosure tips:
Material: Pick rust-proof materials like stainless steel or aluminum.
Ventilation: Good airflow stops overheating.
Sealing: Tight seals keep out dust and water.
Enclosure Feature | Benefit | Example Material |
|---|---|---|
Rust Resistance | Stops corrosion and lasts longer | Stainless Steel |
High IP Rating | Blocks water and dirt | IP65 or higher |
Heat Control | Prevents overheating | Aluminum with vents |
Focusing on eco-friendly systems and strong enclosures keeps your DC power system reliable. This helps your telecom setup and supports a cleaner planet.
Tip: Check your enclosure often to keep it working well and protect your system.
DC power systems are very important for telecommunications. They keep networks working well, even when the power goes out. These systems give steady energy, helping mobile networks, data centers, and emergency services stay connected.
Key Takeaway: DC power systems are the core of today’s telecom networks. They handle current needs and are ready for future tech like 5G and renewable energy.
Using these systems makes your network stronger and ready for future challenges.
FAQ
1. What do DC power systems do in telecom?
DC power systems give steady energy to telecom devices. They keep networks running during blackouts and cut energy waste, making communication reliable.
2. How are DC power systems different from AC systems?
DC systems send direct current, which is steady and efficient. Unlike AC systems, they skip extra steps, saving energy and boosting reliability.
3. Can DC power systems use renewable energy?
Yes, DC systems work well with solar or wind power. These sources make direct current, so they are efficient and eco-friendly together.
4. How do you take care of a DC power system?
Check batteries often, clean connections, and watch system health. Use tools to find problems early and follow maker instructions to make it last longer.
5. Why are DC power systems needed for 5G?
5G needs reliable and efficient power. DC systems save energy and keep working during outages, making them perfect for advanced telecom tech.
See Also
Essential Insights for Newcomers on Telecom Power Systems
Key Features You Should Understand About Telecom Power Supply
Calculating Telecom Cabinet Power Systems and Battery Requirements
