How ESTEL PV Panel Battery Storage Systems Work

You can harness the power of the sun with ESTEL PV panel battery storage systems. These systems use solar panels to convert sunlight into electricity, ensuring a reliable source of energy. Excess energy is stored in batteries, making it available when sunlight is limited. In 2023, hybrid solar panel battery storage systems made up 45% of battery capacity in the U.S., highlighting their growing importance. By adopting solar energy, you gain access to clean, renewable power while reducing dependence on traditional energy sources. This approach promotes sustainability and helps you take control of your energy needs.

Key Takeaways

• Solar batteries store extra solar energy for cloudy days or night.

• Using solar batteries can save a lot on electricity bills, up to $1,100 each year.

• Picking the right battery, like lithium-ion, makes it last longer and work better.

• Taking care of your solar system helps it work well and last longer.

• Knowing how much energy you need helps you pick the best solar battery for your home or business.

Key Components of Solar Battery Storage Systems

Understanding the key components of solar battery storage systems helps you appreciate how these systems work to provide reliable and sustainable energy. Each component plays a vital role in ensuring efficiency and performance.

Solar Panels

Solar panels are the foundation of any solar power system. They capture sunlight and convert it into electricity using photovoltaic (PV) cells. These cells are made from semiconductor materials like silicon, which generate an electric current when exposed to sunlight.

There are three main types of solar panels: monocrystalline, polycrystalline, and thin-film. Monocrystalline panels offer the highest efficiency, making them ideal for limited roof space. Polycrystalline panels are slightly less efficient but more affordable. Thin-film panels are lightweight and flexible, suitable for unique installations.

Solar panels work best when installed in areas with maximum sunlight exposure. Regular cleaning and maintenance ensure optimal performance. By generating clean energy, solar panels reduce your reliance on fossil fuels and lower your carbon footprint.

Batteries

Batteries store the excess electricity generated by solar panels, making it available for use during cloudy days or at night. They are the heart of any solar battery storage system, ensuring energy availability when sunlight is not sufficient.

Lithium-ion batteries are the most popular choice due to their high energy density, long lifespan, and low maintenance requirements. Lead-acid batteries, while more affordable, have a shorter lifespan and require regular upkeep. Lithium iron phosphate (LFP) batteries stand out for their durability, safety, and ability to handle deeper depths of discharge.

• Lifespan of LFP batteries: 15–20 years with 6,000 to 10,000 cycles before capacity drops to 70-80%.

• Energy Efficiency: Higher round-trip efficiency compared to lead-acid batteries.

• Durability: Can handle deeper depths of discharge (up to 80%).

• Maintenance: Requires less maintenance than lead-acid batteries.

• Safety: More stable chemistry reduces overheating risks.

Batteries in solar plus storage systems also play a crucial role in reducing greenhouse gas emissions. A study on a solar PV-battery-based green data center demonstrated that integrating solar batteries can maintain high reliability and reduce downtime. These systems provide stable energy costs over time, making them a smart investment for homeowners and businesses.

Inverters

Inverters are essential for converting the direct current (DC) electricity generated by solar panels into alternating current (AC) electricity, which powers your home or business. Without an inverter, the electricity produced by your solar panel system would not be compatible with most appliances.

There are three main types of inverters: string inverters, microinverters, and hybrid inverters. String inverters are cost-effective and suitable for systems with consistent sunlight exposure. Microinverters are installed on each solar panel, offering better performance in shaded conditions. Hybrid inverters combine the functions of a solar inverter and a battery inverter, making them ideal for solar plus storage systems.

Inverters also play a role in monitoring your energy production and consumption. Many modern inverters come with built-in monitoring systems, allowing you to track your system's performance in real time. This feature helps you optimize energy usage and identify potential issues early.

Tip: Choose an inverter that matches your energy needs and system size. A well-matched inverter ensures maximum efficiency and longevity for your solar power system.

Battery Management Systems (BMS)

A Battery Management System (BMS) is the brain of your solar battery storage system. It monitors and manages the performance of batteries to ensure safety, efficiency, and longevity. Without a BMS, your batteries could overcharge, overheat, or discharge too deeply, leading to reduced performance or even permanent damage.

The BMS performs several critical functions:

• Monitoring Battery Health: It tracks key metrics like voltage, current, and temperature to ensure the batteries operate within safe limits.

• Balancing Cells: In multi-cell batteries, the BMS ensures all cells charge and discharge evenly. This prevents imbalances that could shorten the lifespan of the battery.

• Protecting Against Faults: The system detects and prevents issues like short circuits, overcharging, and overheating.

• Optimizing Performance: By analyzing data, the BMS helps maximize the efficiency of your battery storage system.

Modern BMS technology often includes smart features like remote monitoring and integration with energy management systems. These features allow you to track your solar battery's performance in real time and make adjustments as needed. For example, if your battery energy storage system is nearing full capacity, the BMS can redirect excess energy to other uses or prevent overcharging.

Tip: Always choose a solar battery storage system with a reliable BMS. It ensures your batteries perform at their best and last as long as possible.

Supporting Elements (Wiring, Monitoring Systems, Energy Management Systems)

Supporting elements play a vital role in connecting and optimizing the components of your solar battery storage system. These elements ensure the system operates smoothly and efficiently.

Wiring

Wiring connects all the components of your system, including solar panels, batteries, inverters, and monitoring devices. High-quality wiring minimizes energy loss and ensures safety. Proper installation is crucial to prevent issues like overheating or short circuits. Regular inspections help maintain the integrity of the wiring over time.

Monitoring Systems

Monitoring systems provide valuable insights into your solar battery storage system's performance. They track energy production, consumption, and storage levels. Many modern systems offer app-based interfaces, allowing you to monitor your system from anywhere. For instance, you can check how much energy your solar batteries have stored or identify potential issues before they become serious.

Energy Management Systems

Energy management systems (EMS) optimize how energy flows within your system. They prioritize energy usage based on your needs. For example, during peak sunlight hours, the EMS might direct energy to charge your batteries while simultaneously powering your home. At night, it ensures stored energy is used efficiently. Advanced EMS can even integrate with utility-scale battery storage systems, allowing you to sell excess energy back to the grid.

These supporting elements work together to enhance the performance and reliability of your pv panel battery storage system. They ensure that every component operates at its full potential, providing you with a seamless and efficient energy solution.

How Solar Energy Storage Systems Work

Energy Flow Overview

Solar energy storage systems operate by capturing sunlight through solar panels and converting it into electricity. This electricity flows through the system to power your home or business and charge the batteries for later use. The process ensures that you have access to energy even when sunlight is unavailable, such as during nighttime or cloudy days.

The energy flow begins with solar panels absorbing sunlight and generating direct current (DC) electricity. This DC electricity either powers your appliances directly or charges the batteries. When the batteries are full, any excess energy can be sent back to the grid or stored for future use. Advanced tools like GridLAB-D and Simscape Power Systems help model and analyze this energy flow, ensuring optimal performance and efficiency.

Note: A well-designed energy storage system minimizes energy loss and maximizes the use of stored energy, providing a reliable and sustainable power source.

AC Coupling in PV Panel Battery Storage

AC coupling connects your solar panels and batteries through an alternating current (AC) pathway. In this setup, the solar panels generate DC electricity, which is converted into AC electricity by an inverter. This AC electricity powers your home and charges the batteries through a second inverter that converts it back into DC electricity.

AC coupling offers several advantages:

• It works well with existing solar panel systems, making it a popular choice for retrofitting.

• It supports high AC loads, such as electric vehicle (EV) charging and household appliances.

• It allows for easy integration with utility demand response programs.

However, AC coupling is slightly less efficient for charging batteries due to the multiple energy conversions involved. Studies like those from Wood Mackenzie (2021) show that AC-coupled systems dominate residential battery installations, accounting for over 80% of such setups in utility programs. This highlights their practicality and widespread adoption.

DC Coupling in Solar Battery Storage

DC coupling connects solar panels directly to the batteries, bypassing the need for multiple energy conversions. In this configuration, the DC electricity generated by the solar panels charges the batteries directly. When you need to power your home, an inverter converts the stored DC electricity into AC electricity.

DC coupling provides several benefits:

• It minimizes energy loss, resulting in higher overall efficiency.

• It captures up to 8% more solar energy annually compared to AC coupling, according to the National Renewable Energy Laboratory.

• It reduces the levelized cost of energy by up to 8%, making it a cost-effective option.

This setup is ideal for new installations where efficiency and cost savings are priorities. However, it may not support as many high AC loads as AC coupling, which could limit its versatility in some scenarios.

Comparing AC and DC Coupling

When deciding between AC and DC coupling for your solar energy storage system, understanding their differences helps you make an informed choice. Both methods have unique advantages and limitations, depending on your energy needs and system setup.

Key Differences Between AC and DC Coupling

Choosing the Right Option for Your Needs

1. Retrofitting Existing Systems
   If you already have a solar panel system, AC coupling is often the better choice. It integrates seamlessly with your current setup, allowing you to add battery storage without replacing existing components. This makes it a practical and cost-effective solution for upgrading your system.

2. Maximizing Efficiency
   For new installations, DC coupling offers higher efficiency. By minimizing energy conversions, it reduces energy loss and captures more solar energy annually. This makes it ideal if you prioritize long-term energy savings.

3. Handling High Energy Loads
   AC coupling supports high AC loads, such as electric vehicle charging or running multiple appliances simultaneously. If your energy needs include powering heavy-duty equipment, AC coupling provides the flexibility you require.

4. Budget Considerations
   DC coupling generally has a lower upfront cost for new systems. However, AC coupling may incur additional expenses due to the need for extra inverters. Evaluate your budget to determine which option aligns with your financial goals.

Tip: Consider your specific energy requirements, system type, and future scalability when choosing between AC and DC coupling. Consulting with a solar energy expert can help you make the best decision.

Final Thoughts on AC vs. DC Coupling

Both AC and DC coupling have their strengths. AC coupling excels in retrofitting and handling high energy loads, while DC coupling shines in efficiency and cost-effectiveness for new installations. By understanding these differences, you can select the coupling method that best suits your solar energy storage needs.

Benefits of PV Panel Battery Storage Systems

Energy Independence

Solar battery storage systems empower you to take control of your energy needs. By storing excess electricity generated by solar panels, you reduce reliance on the grid. This independence shields you from fluctuating energy prices and potential outages. For example, households using stored solar energy can significantly decrease their dependence on fossil fuels, contributing to a cleaner environment.

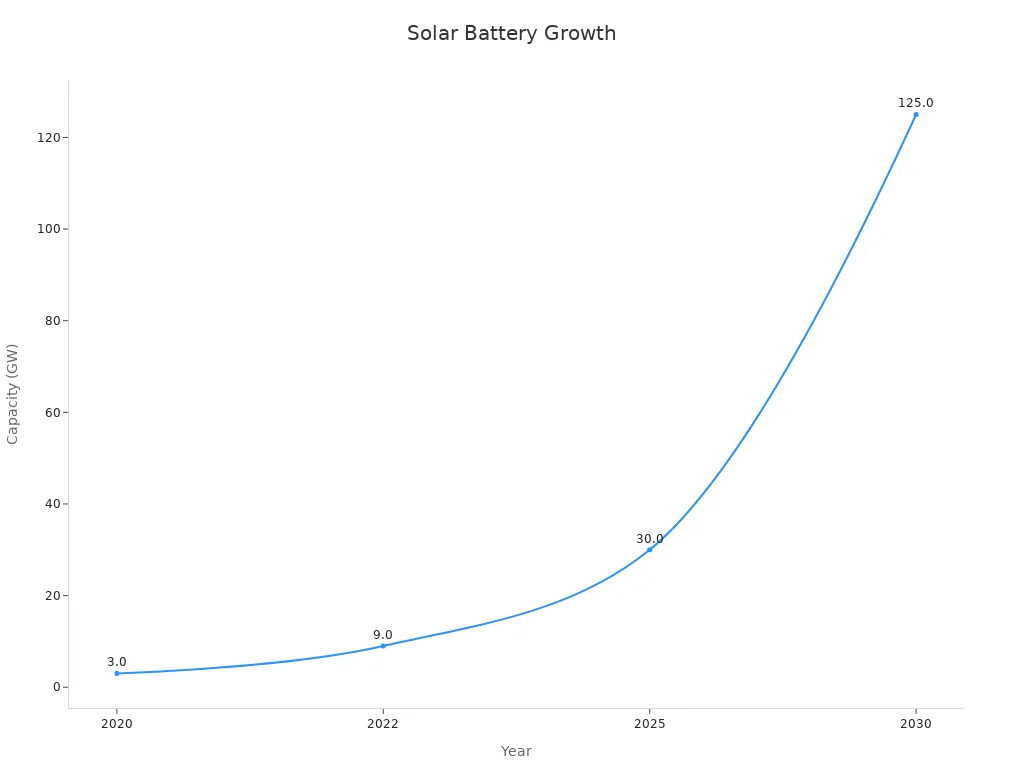

The trend toward energy independence is growing rapidly. Between 2020 and 2022, battery storage capacity tripled, increasing from 3.0 GW to 9.0 GW. Projections suggest this capacity will reach 125 GW by 2030.

This growth highlights the increasing adoption of solar energy storage systems as a reliable solution for energy independence.

Cost Savings

Solar battery storage systems offer significant financial benefits. By utilizing stored solar energy during peak periods, you can save approximately $1,100 annually on electricity bills. Additionally, customers save between $20 and $30 per kWh of storage capacity each year. These savings make solar battery systems a cost-effective investment for homeowners.

Storing solar energy also protects you from rising utility rates. During peak demand, electricity prices often spike. With a solar battery, you can rely on stored energy instead of purchasing expensive grid power. Over time, this reduces your overall energy expenses and provides predictable energy costs.

Tip: To maximize savings, consider pairing your solar panels with a high-efficiency battery system. This combination ensures optimal energy storage and usage.

Backup Power During Outages

Solar battery backup systems provide a reliable source of energy during power outages. When the grid goes down, stored energy ensures your home remains powered. This is especially valuable in areas prone to natural disasters or wildfire-prevention outages. For instance, residential consumers faced $406 million in economic losses due to such outages, emphasizing the need for dependable backup systems.

Well-designed solar panels and batteries can withstand extreme weather conditions, ensuring durability and reliability. With a lifespan of 25 to 30 years, these systems offer long-term protection against unexpected power disruptions. The economic impact of outages, estimated at $5,000/MWh, further underscores the importance of having a solar battery backup system in place.

Note: A solar battery backup system not only provides peace of mind but also enhances your home's resilience during emergencies.

Environmental Benefits

Switching to solar battery storage systems significantly reduces your environmental impact. By relying on clean, renewable energy, you help decrease greenhouse gas emissions and combat climate change. Traditional energy sources, like coal and natural gas, release harmful pollutants during electricity generation. Solar energy, on the other hand, produces no emissions during operation.

Solar battery storage systems amplify these benefits by optimizing energy use. They store excess solar power for later, reducing the need for fossil fuel-based backup energy. This efficient energy management minimizes waste and maximizes the use of renewable resources.

Studies highlight the substantial environmental advantages of adopting solar battery storage. For example, in California, renewable energy deployment without storage reduces CO2 emissions by 72%. Adding energy storage systems, such as DCAES, achieves even greater reductions. Similarly, in Texas, renewable energy alone cuts emissions by 54%, but integrating storage further enhances these reductions.

Did you know? Solar energy systems also reduce water usage. Unlike fossil fuel plants, which consume vast amounts of water for cooling, solar panels require no water to generate electricity. This makes them an eco-friendly choice, especially in regions facing water scarcity.

By adopting solar battery storage systems, you contribute to a cleaner, greener planet. Every kilowatt-hour of solar energy you use reduces your carbon footprint and helps preserve natural resources for future generations.

Choosing the Right Solar Battery Storage System

Assessing Energy Needs

Understanding your energy needs is the first step in selecting the right solar battery storage system. Start by evaluating your daily electricity consumption. This includes identifying peak usage times and estimating how much energy you need during non-sunny periods. Tools like the multi-attribute comprehensive index assessment model and fuzzy comprehensive evaluation method can help optimize system sizing and placement. These methodologies analyze factors such as active power fluctuation and market dynamics to ensure your energy storage system meets your requirements.

You should also consider the flexibility of your energy storage system. Demand Side Management (DSM) plays a crucial role in integrating renewable energy sources like solar panels. By using metrics such as similarity, delay, and deviation indicators, you can measure how well your system regulates energy flow. This ensures that your solar battery storage system operates efficiently and adapts to your consumption patterns.

Tip: Consult with an energy expert to assess your energy needs accurately. This ensures your system is tailored to your lifestyle and maximizes its benefits.

Budget Considerations

Budget is a critical factor when choosing a solar battery storage system. The upfront cost of batteries and installation can vary significantly. For example, the Alpha ESS battery has a payback period of 7.2 years, while combining solar panels with batteries reduces this to 5.6 years. This highlights the financial advantage of integrating both systems.

Long-term savings also depend on the type of battery you choose. Lithium-ion batteries offer higher efficiency and longer lifespans, making them a cost-effective option despite their higher initial cost. Lead-acid batteries, while cheaper upfront, may require frequent replacements and maintenance, increasing their overall cost over time.

1. Evaluate the payback period to understand how quickly your investment will yield savings.

2. Compare the price of different battery brands to find the best value for your money.

3. Factor in potential incentives and credits, which can offset initial costs and improve your return on investment.

Note: Investing in a high-quality solar battery system may cost more initially but provides greater savings and reliability in the long run.

Comparing Battery Types (Lithium-Ion vs. Lead-Acid)

Choosing between lithium-ion and lead-acid batteries depends on your priorities. Lithium-ion batteries excel in efficiency, durability, and performance. They achieve efficiency rates of 90%–95%, significantly reducing energy loss. Lead-acid batteries, with efficiency rates of 80%–85%, are more affordable but less efficient.

Lithium-ion batteries also offer a lower cost of energy (COE) at 0.13 baht/kWh compared to lead-acid batteries at 0.19 baht/kWh. Their longer lifespan and higher benefit-cost ratio make them a better choice for long-term use. However, lead-acid batteries may suit those with limited budgets or short-term energy needs.

Did you know? Lithium-ion batteries have a lower environmental impact than lead-acid batteries, making them a more sustainable choice for solar energy storage.

Evaluating System Size and Scalability

Choosing the right size for your solar battery storage system ensures it meets your energy needs effectively. A system that is too small may fail to store enough energy, while an oversized system could lead to unnecessary costs. Evaluating system size involves understanding your daily energy consumption and peak usage patterns. For example, if your household consumes 30 kWh daily, a battery system with a capacity of 40 kWh provides a buffer for cloudy days or higher-than-average usage.

Scalability is equally important. A scalable system allows you to expand its capacity as your energy needs grow. This flexibility is ideal for households planning to add appliances or electric vehicles in the future. Modern solar battery storage systems often include modular designs, enabling you to add more batteries without replacing the entire setup.

Market Trends Supporting Scalability

The growing demand for scalable energy solutions highlights their importance. Consider these market trends:

1. Solar energy storage market size reached USD 55.73 billion in 2023.

2. By 2032, this market is projected to grow to USD 227.19 billion.

3. The expected compound annual growth rate (CAGR) from 2024 to 2032 is 16.90%.

These figures demonstrate the increasing adoption of scalable systems across industries. For instance, data centers and telecommunications rely on battery storage for uninterrupted power supply. Large-scale renewable energy installations also benefit from scalable systems, ensuring consistent energy availability.

Comparing System Sizes

When evaluating system size, consider your current and future energy requirements. A medium-sized system suits most households, offering a balance between cost and scalability. Large systems work best for businesses or homes with significant energy needs.

Tip: Opt for a system with modular scalability. This ensures you can adapt to changing energy demands without replacing the entire setup.

The ability to store solar energy enhances energy self-reliance and maximizes the use of renewable resources. Scalable systems provide long-term benefits, making them a smart investment for homeowners and businesses alike.

ESTEL PV panel battery storage systems offer a reliable way to harness solar energy. You can store excess solar power for later use, ensuring energy availability during non-sunny periods. These systems combine advanced components to deliver energy independence, cost savings, and environmental benefits. Choosing the right system depends on your energy needs, budget, and preferences. By adopting solar technology, you take control of your energy future while contributing to a cleaner planet.

FAQ

1. How long do solar batteries last?

Solar batteries typically last 10–15 years. Lithium-ion batteries offer longer lifespans, often exceeding 15 years. Regular maintenance and proper usage extend their durability.

Tip: Monitor your battery's health using a Battery Management System (BMS) to maximize its lifespan.

2. Can solar panels work during cloudy days?

Yes, solar panels generate electricity even on cloudy days. However, their efficiency decreases due to reduced sunlight. Battery storage compensates by providing stored energy during low sunlight periods.

Note: Install high-efficiency panels to optimize energy production in varying weather conditions.

3. What happens when the batteries are full?

When batteries reach full capacity, excess energy flows back to the grid or gets redirected to other uses. Energy Management Systems (EMS) handle this process automatically.

Did you know? Some systems allow you to sell surplus energy to the grid for additional savings.

4. Are solar battery systems safe?

Modern solar battery systems are safe. Battery Management Systems prevent overheating, overcharging, and short circuits. Lithium-ion batteries offer stable chemistry, reducing risks.

Tip: Choose systems with advanced safety features for peace of mind.

5. How much maintenance do solar batteries require?

Solar batteries need minimal maintenance. Lithium-ion batteries require less upkeep compared to lead-acid batteries. Periodic inspections ensure optimal performance.

Reminder: Clean your solar panels regularly to maintain energy efficiency.
