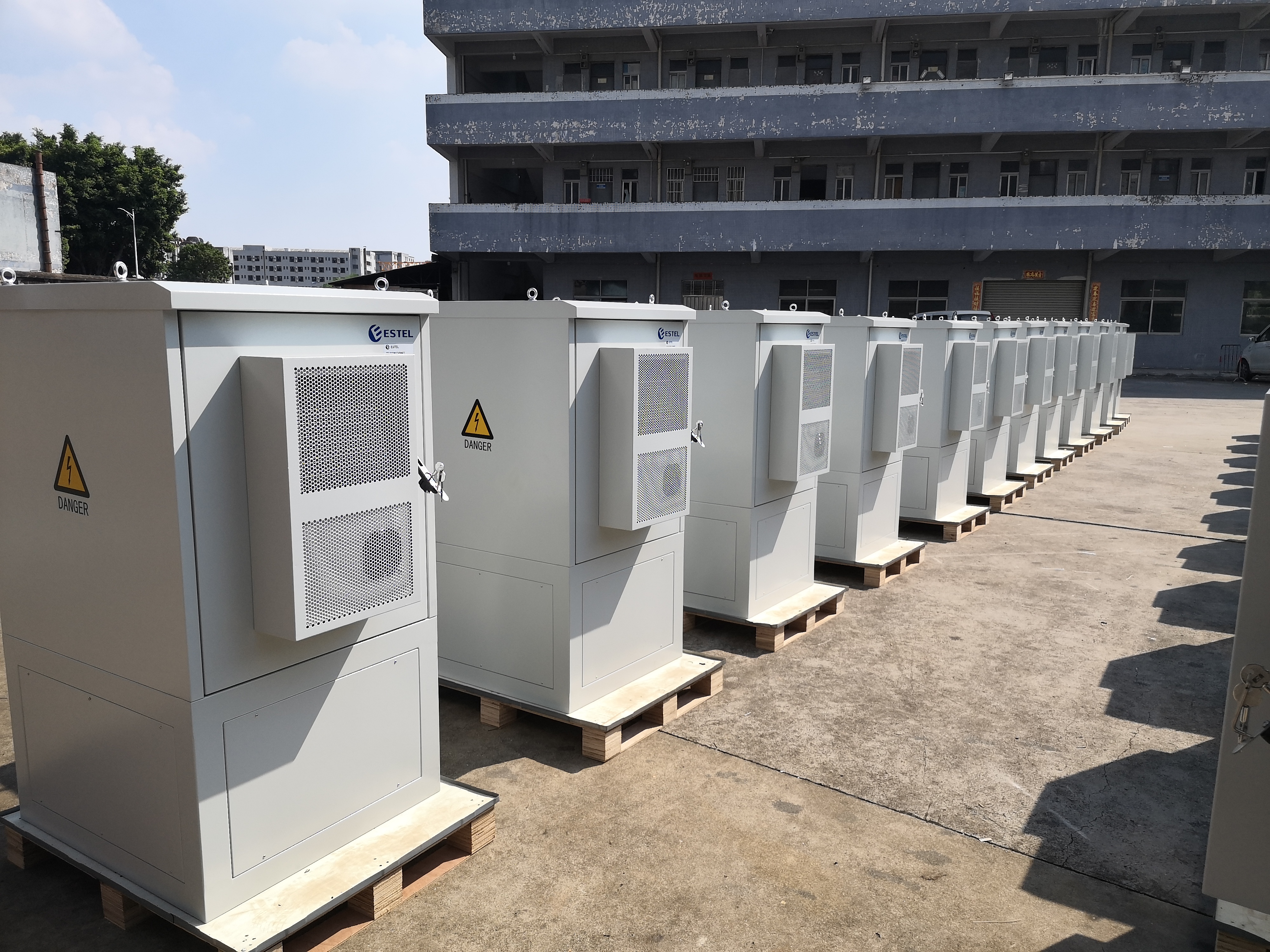

ESTEL Guide to Installing a 48V Telecom Rectifier Cabinet

Installing a telecom rectifier 48V cabinet correctly ensures reliable performance. Proper installation prevents unexpected failures and reduces downtime. Maintenance plays a key role in extending the system's lifespan. You can avoid costly repairs by regularly inspecting and cleaning the cabinet. Following the right steps improves efficiency and supports uninterrupted service.

A well-installed and maintained rectifier cabinet guarantees optimal operation, even in demanding conditions.

Key Takeaways

• Check power needs before starting to ensure the rectifier works well.

• Pick a cabinet that is efficient and handles problems easily to save money.

• Gather tools and equipment early to make installation faster and easier.

• Do regular checks and maintenance to make the cabinet last longer and avoid big repairs.

• Use remote monitoring to control operations better and visit less often.

Preparing for the Installation of Rectifiers

Assessing Power and Load Requirements

Before starting the installation, you need to evaluate the power requirements of your telecom system. This step ensures that the 48V rectifier systems can handle the expected load without interruptions. Begin by calculating the total power demand of all connected devices. Include future expansion plans to avoid overloading the system later.

The following table highlights key technical specifications to consider when assessing power requirements:

Efficiency and reliability are critical factors. High-efficiency rectifiers reduce energy costs, while reliable systems ensure uninterrupted operation. Always match the rectifier's capacity to your system's power requirements for optimal performance.

Selecting the Right Telecom Rectifier 48V Cabinet

Choosing the right cabinet is essential for a successful installation. Look for cabinets with high efficiency, advanced load-handling capabilities, and fault-tolerant designs. These features improve energy savings and system reliability. The table below outlines performance metrics to guide your selection:

Consider environmental factors like temperature and humidity. Cabinets designed for harsh conditions, such as those with an operating range of -40°C to +65°C, offer better durability. Compliance with regional regulations, such as the EcoDesign Directive in Europe, ensures energy efficiency and legal adherence.

Gathering Necessary Tools and Equipment

Proper preparation simplifies the installation process. Gather all required tools and equipment before starting. Essential items include screwdrivers, cable cutters, multimeters, and grounding kits. You may also need software like PowerSuite for system configuration and remote monitoring.

Installation works for the complete rectifier system often involve multiple steps, such as dismantling old systems, inspecting new equipment, and testing electrical installations. Ensure you have tools for measuring earth resistance, cable insulation, and short-circuit loop impedance. These checks guarantee safety and compliance with industry standards.

Tip: Organize your tools in advance to avoid delays during installation. A well-prepared workspace improves efficiency and reduces errors.

Design and Layout for Installation

Choosing the Ideal Installation Location

Selecting the right location for your telecom rectifier cabinet is crucial for its performance and longevity. You should prioritize areas with stable environmental conditions. Avoid locations prone to extreme temperatures, high humidity, or direct sunlight. Cabinets with higher NEMA or IP ratings are better suited for outdoor installations. These ratings indicate the enclosure's ability to resist dust, water, and other environmental factors. For example:

• NEMA ratings ensure protection against environmental hazards.

• IP ratings use two digits to indicate resistance to solids and liquids. Higher numbers provide better protection.

Indoor installations should be in well-ventilated spaces to prevent overheating. Ensure the floor can support the cabinet's weight and that there is enough clearance for maintenance access.

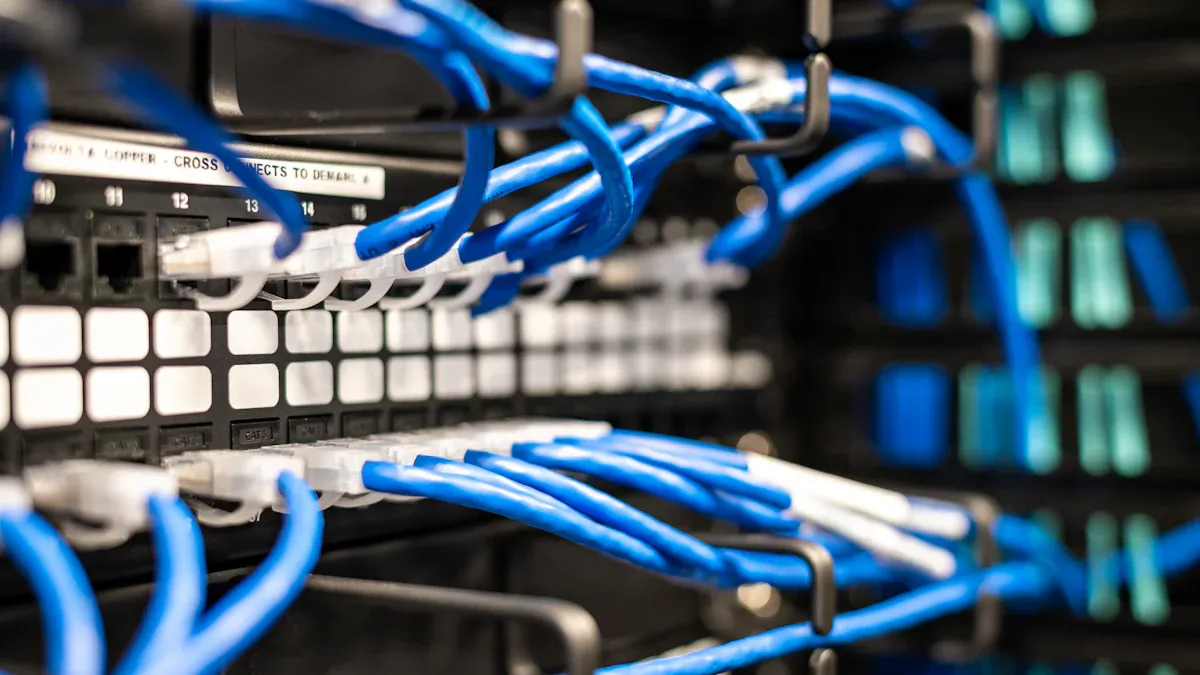

Planning Cable Routing and Management

Proper cable management ensures efficient operation and reduces the risk of damage. Begin by assessing your network's requirements to determine the type and size of cables needed. Design a clear schematic diagram to visualize the layout. This helps you plan for future growth by leaving space for additional cables.

Follow these best practices for cable routing:

1. Keep cables away from sources of electromagnetic interference (EMI), such as power lines.

2. Use gentle fasteners like velcro to bundle cables without causing damage.

3. Label and color-code cables for easy identification.

4. Adhere to industry standards like TIA-942 and ANSI/TIA-568 for structured cabling.

Maintaining updated documentation of your cabling system simplifies troubleshooting and upgrades.

Ensuring Proper Grounding and Safety Compliance

Grounding is essential for protecting your equipment and ensuring safety. A properly grounded system prevents electrical faults and reduces the risk of damage from power surges. Use grounding kits designed for telecom systems to establish a reliable connection to the earth.

Verify that your installation complies with local safety regulations and industry standards. For example, ensure the cabinet's total harmonic distortion (THD) is less than 2% at full load to maintain electrical stability. Additionally, check that the input voltage matches the cabinet's specifications, such as a three-phase 400Vac VL-L input.

Tip: Regularly inspect grounding connections to ensure they remain secure and effective over time.

Step-by-Step Installation of Rectifiers

Unpacking and Inspecting the Cabinet

When you receive the telecom rectifier 48V cabinet, begin by carefully unpacking it. Use appropriate tools to avoid damaging the packaging or the cabinet itself. Inspect the cabinet thoroughly for any visible damage, such as dents, scratches, or loose components. Check the shipment against the packing list to ensure all parts and accessories are included. Missing or damaged items should be reported to the supplier immediately.

Pay close attention to the rectifier systems inside the cabinet. Verify that all modules are securely in place and free from defects. Look for any signs of moisture or dust that may have entered during transit. If you notice any irregularities, clean the affected areas with a dry, lint-free cloth. Proper inspection at this stage prevents potential issues during installation.

Tip: Keep the cabinet in a clean, dry area while you prepare for the next steps. This minimizes the risk of contamination or damage.

Installing Rectifier Modules

Once the cabinet is ready, proceed to install the rectifier modules. Start by reviewing the user manual for specific instructions related to your telecom rectifier 48V cabinet. Each module should slide into its designated slot within the cabinet. Align the module carefully to avoid damaging the connectors. Push it firmly until it clicks into place.

Ensure that all modules are installed in the correct sequence, as outlined in the manual. This step is crucial for maintaining the efficiency and reliability of the rectifier systems. After installation, double-check that each module is securely seated. Loose connections can lead to operational failures or reduced performance.

Note: Some cabinets come with pre-installed modules. In such cases, verify their placement and connection before proceeding.

Connecting Input and Output Power Cables

Proper cable connections are vital for the safe and efficient operation of your rectifier systems. Follow these steps to connect the input and output power cables:

1. Prepare the Cables: Use cable strippers to remove the insulation from the ends of the input and output cables. Ensure the exposed wire length matches the specifications in the user manual.

2. Connect Input Cables: Attach the input cables to the designated terminals on the rectifier modules. Match the polarity to the manual's guidelines to prevent electrical faults.

3. Connect Output Cables: Secure the output cables to the corresponding terminals. Tighten the connections to avoid loose ends, which can cause overheating or power loss.

4. Inspect Connections: Examine all cable connections for signs of wear, corrosion, or improper installation. Replace any damaged cables immediately to maintain system integrity.

After completing these steps, test the connections using a multimeter. This ensures that the input and output voltages align with the cabinet's specifications. Properly connected cables enhance the performance and safety of your telecom rectifier 48V cabinet.

Tip: Label each cable clearly to simplify future maintenance and troubleshooting.

Configuring Redundancy and Backup Systems

Redundancy and backup systems are essential for ensuring uninterrupted operation of your telecom rectifier cabinet. These systems protect against unexpected failures and maintain power delivery during outages. Configuring them correctly enhances reliability and minimizes downtime.

Start by including backup parts in your installation. Extra rectifiers or batteries can activate automatically when the primary system fails. This ensures continuous power supply, even during emergencies. Hybrid rectifiers offer another effective strategy. Combining AC/DC control simplifies the design and reduces the risk of failure. These rectifiers are particularly useful in environments with fluctuating power conditions.

Digital controls play a vital role in redundancy. They monitor voltage levels and predict maintenance needs, helping you address issues before they escalate. Regular testing of backup systems is equally important. Frequent checks extend equipment life and prevent failures.

The table below summarizes key strategies for configuring redundancy and backup systems:

Tip: Schedule regular inspections and testing during the commissioning of the system to verify the effectiveness of redundancy measures.

Load Testing and Verifying Connections

Load testing is a critical step in the commissioning process. It ensures that your telecom rectifier cabinet can handle the expected power demand without issues. Begin by simulating the maximum load your system will experience during operation. Use load banks to replicate real-world conditions and monitor the cabinet's performance.

During testing, pay close attention to voltage stability and current flow. Any fluctuations could indicate improper installation or faulty components. Use a multimeter to measure input and output voltages, ensuring they align with the cabinet's specifications.

Verifying connections is equally important. Inspect all input and output cables for signs of wear or loose ends. Tighten connections to prevent overheating or power loss. Label each cable clearly to simplify future maintenance.

Note: Conduct load testing in a controlled environment to avoid damaging the equipment. Proper testing during commissioning guarantees long-term reliability.

Monitoring and Maintenance of the Telecom Rectifier 48V Cabinet

Setting Up Remote Monitoring Systems

Remote monitoring systems simplify the management of telecom rectifier cabinets. These systems allow you to oversee operations from a centralized location, reducing the need for on-site visits. By integrating predictive maintenance features, you can shift from reactive repairs to scheduled upkeep, saving time and costs.

Modern remote monitoring systems offer advanced capabilities, such as AI-driven analytics and enhanced security protocols. These features ensure reliable performance and protect sensitive data. The table below highlights key benefits of implementing remote monitoring systems:

Environmental factors also play a role in the effectiveness of remote monitoring systems. These systems are designed to operate within specific ranges of temperature, humidity, and altitude. For example, they function optimally between -25°C and 55°C, with forced cooling mechanisms ensuring stability during high temperatures.

By setting up remote monitoring systems, you can ensure efficient operation and reduce downtime, even in challenging environments.

Performing Regular Inspections

Regular inspections are essential for maintaining the performance and reliability of your telecom rectifier cabinet. You should schedule inspections at consistent intervals to identify potential issues before they escalate.

Start by visually examining the cabinet for signs of wear or damage. Look for loose connections, corrosion, or unusual noises during operation. Use tools like multimeters to measure voltage levels and ensure they align with the cabinet's specifications.

Inspect the cooling system to confirm it is functioning properly. Dust accumulation or fan malfunctions can lead to overheating, which affects performance. Check grounding connections to verify they remain secure and effective.

Create a checklist to streamline the inspection process:

• Examine input and output cables for wear or damage.

• Test voltage and current levels using appropriate tools.

• Verify the integrity of grounding connections.

• Inspect cooling systems for dust or blockages.

Regular inspections help you maintain the cabinet's efficiency and prevent costly repairs.

Cleaning and Dust Management

Dust and debris can significantly impact the performance of your telecom rectifier cabinet. Cleaning the cabinet regularly ensures optimal operation and extends its lifespan.

Begin by turning off the power supply to avoid electrical hazards. Use a dry, lint-free cloth to wipe down the exterior and interior surfaces. For hard-to-reach areas, compressed air can remove dust without damaging components.

Pay special attention to the cooling system. Dust accumulation on fans or vents reduces airflow, leading to overheating. Clean these areas thoroughly to maintain proper cooling.

Follow these best practices for dust management:

1. Place the cabinet in a clean, dry environment to minimize dust exposure.

2. Use protective covers for outdoor installations to shield the cabinet from debris.

3. Schedule cleaning sessions as part of your regular maintenance routine.

Tip: Avoid using water or liquid cleaners, as they can damage sensitive components.

Effective cleaning and dust management enhance the cabinet's reliability and ensure uninterrupted service.

Scheduling Preventive Maintenance

Preventive maintenance is essential for keeping your telecom rectifier cabinet in top condition. By scheduling regular maintenance, you can avoid unexpected failures and extend the lifespan of your equipment. A well-maintained system ensures uninterrupted service and reduces the risk of costly repairs.

To create an effective maintenance schedule, consider the following steps:

1. Assess Environmental Factors: Evaluate the conditions where the cabinet operates. Dusty or humid environments may require more frequent maintenance.

2. Set Maintenance Intervals: Clean the rectifier module every three to six months. Adjust the frequency based on environmental conditions.

3. Inspect Key Components: Regularly check cables, connectors, and cooling systems for wear or damage.

4. Document Maintenance Activities: Keep a detailed log of all inspections and repairs. This helps track the cabinet's performance over time.

Tip: Use compressed air and a lint-free cloth to clean the cabinet. Avoid water or liquid cleaners to prevent damage to sensitive components.

The table below highlights the benefits of scheduled preventive maintenance:

By following these steps, you can ensure your telecom rectifier cabinet operates efficiently and reliably.

Troubleshooting and Replacing Components

Even with regular maintenance, issues can arise in your telecom rectifier cabinet. Troubleshooting helps you identify and resolve problems quickly, minimizing downtime.

Start by diagnosing the issue. Look for common signs of malfunction, such as unusual noises, overheating, or inconsistent power output. Use diagnostic tools like multimeters to measure voltage and current levels. Compare the readings to the cabinet's specifications to pinpoint the problem.

If you identify a faulty component, follow these steps to replace it:

1. Power Down the System: Turn off the cabinet to ensure safety during the replacement process.

2. Remove the Faulty Component: Use appropriate tools to detach the damaged part. Handle all components carefully to avoid further damage.

3. Install the New Component: Align the replacement part correctly and secure it in place. Refer to the user manual for specific instructions.

4. Test the System: Power up the cabinet and verify that the new component functions as expected.

Note: Always use manufacturer-approved replacement parts to maintain the cabinet's performance and warranty.

For recurring issues, consider consulting the cabinet's technical support team. They can provide expert guidance and recommend long-term solutions.

By troubleshooting effectively and replacing components promptly, you can maintain the reliability of your telecom rectifier cabinet and ensure uninterrupted service.

Proper installation and maintenance of your telecom rectifier 48V cabinet are essential for ensuring reliable performance and long-term durability. By following the steps outlined in this guide, you can optimize efficiency and minimize the risk of unexpected failures. Regular inspections, cleaning, and preventive maintenance keep your system running smoothly, even in challenging environments.

ESTEL’s telecom rectifier 48V cabinet solutions are designed with reliability and quality in mind. Their advanced features and robust construction make them a dependable choice for your telecom infrastructure. Adhering to the recommended practices ensures your system operates at peak performance, supporting uninterrupted service for years to come.

Remember: A well-maintained cabinet not only saves costs but also enhances the overall reliability of your network.

FAQ

What is the purpose of a telecom rectifier cabinet?

A telecom rectifier cabinet converts AC power to DC power, ensuring a stable power supply for telecom equipment. It supports uninterrupted operations and protects devices from power fluctuations.

How do you perform load calculation for a rectifier cabinet?

To perform load calculation, sum up the power requirements of all connected devices. Include future expansion needs to avoid overloading. This ensures the rectifier cabinet can handle the expected load efficiently.

Why is proper grounding important during installation?

Proper grounding prevents electrical faults and protects equipment from power surges. It ensures safety and compliance with industry standards, reducing the risk of damage to the rectifier cabinet.

How often should you clean a rectifier cabinet?

Clean the rectifier cabinet every three to six months. Dust and debris can block airflow, causing overheating. Regular cleaning ensures optimal performance and extends the cabinet's lifespan.

What makes high-quality rectifiers essential for telecom systems?

High-quality rectifiers improve energy efficiency and reliability. They reduce energy costs and ensure uninterrupted power delivery, even in challenging conditions.
