Key Components of a DC Rectifier System You Should Know

Cyrus

·May 14, 2025

·12 min read

Image Source: pexels

A DC rectifier system changes alternating current (AC) into direct current (DC). This lets you have a steady and dependable power supply. It is very important for devices needing constant DC, like servers and communication tools. Its great performance makes it a must-have for modern technology.

It works at 97.4% efficiency, wasting very little energy.
Total Harmonic Distortion (THD) stays low at 4%, giving clean power.
It can handle up to 3000 W, meeting different power needs.

As data centers and cloud computing grow fast, these systems are needed more and more.

Key Takeaways

DC rectifier systems change AC power into DC power. They give steady power to devices like servers and medical tools.
Diodes make sure electricity flows one way. This stops damage to delicate parts.
Transformers change voltage levels so devices get the right power safely.
Filters remove bumps in DC power, making it smooth for delicate electronics.
Voltage regulators keep power steady. This stops sudden changes that could harm devices.

Diodes: The Heart of a DC Rectifier System

Diodes are key to changing AC into DC. They work like one-way doors, letting electricity flow in just one direction. This special feature makes them essential for turning AC power into usable DC for many devices.

How Diodes Help in Rectification

Diodes are the main part of rectification circuits. They guide current to flow in one direction, creating a steady DC output from an AC input. This is crucial for things like power supplies and chargers that need stable DC voltage. Diodes also stop current from flowing backward, protecting parts and keeping circuits safe.

In rectification, diodes do important jobs like:

Turning AC into DC by allowing only forward current.
Cutting down energy loss during the process.
Boosting the system's efficiency.

Here’s a table showing how common rectifier diodes perform:

Rectifier Diode	Max Reverse Voltage (V)	Max Forward Current (A)	Peak Surge Current (A)	Max Voltage Drop (V)
1N4001	50	1	30	1.1
1N4002	100	1	30	1.1
1N4003	200	1	30	1.1
1N4004	400	1	30	1.1
1N4007	1000	1	30	1.1
1N5402	200	3	200	1.2
1N5406	600	3	200	1.2
1N5408	1000	3	200	1.2

This table shows how reliable and flexible diodes are in circuits.

Common Diode Setups (Half-Wave, Full-Wave, Bridge Rectifiers)

Different diode setups are used to get better efficiency and output. The three main types are:

Half-Wave Rectifier:
Uses one diode to pass half of the AC cycle. It’s simple and cheap but less efficient with more ripples.
Full-Wave Rectifier:
Uses two diodes to handle both halves of the AC cycle. It’s more efficient and gives smoother DC than the half-wave type.
Bridge Rectifier:
Uses four diodes in a bridge shape. It works on the whole AC cycle, giving the best efficiency and smoothest output.

Here’s a table comparing these setups:

Rectifier Type	Efficiency Details	Average DC Output Voltage	Ripple Level
Half-Wave Rectifier	Less efficient since it uses only half the AC cycle.	Lower	More ripples
Full-Wave Rectifier	More efficient as it uses both halves of the AC cycle.	Higher	Fewer ripples
Bridge Rectifier	Most efficient, converting the full AC cycle for stable output.	Highest	Least ripples

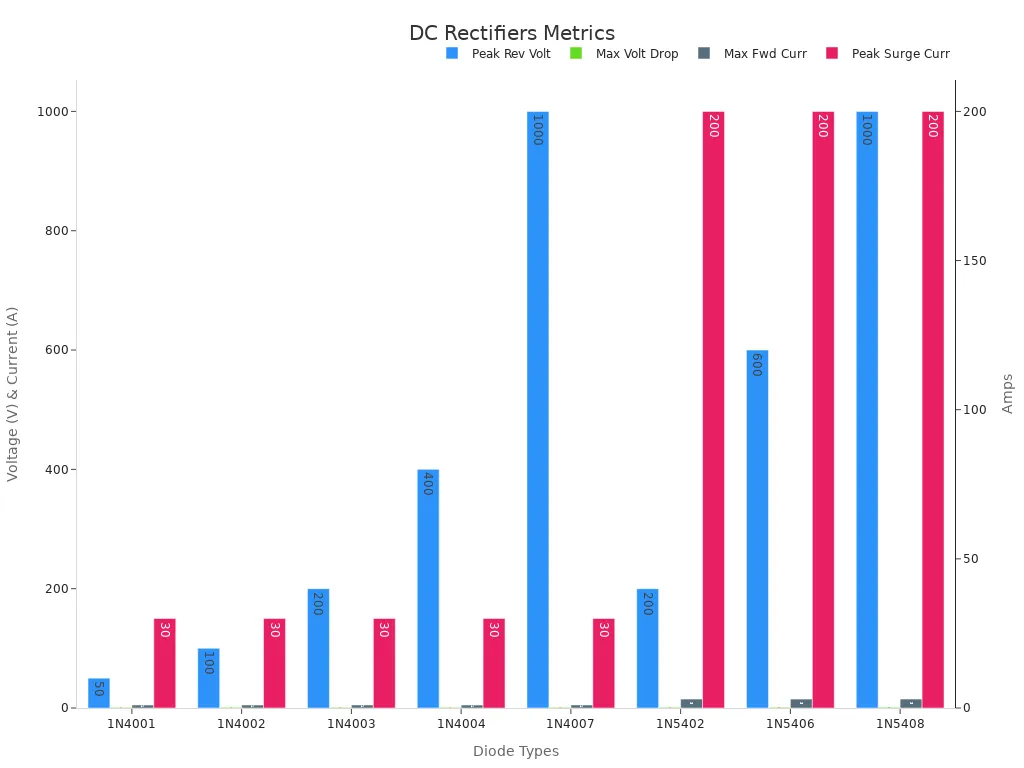

Bar chart comparing diode performance in DC rectifier systems

Pros and Cons of Diodes in Rectifiers

Diodes have many benefits in circuits:

High Efficiency: They save energy during conversion.
Small Size: Their tiny size fits well in small gadgets.
Durability: Diodes handle high voltage and current, lasting a long time.

But they also have downsides:

Voltage Drop: A small voltage drop can lower efficiency in low-power setups.
Heat Issues: High current can make diodes hot, needing cooling.
Environment Sensitivity: Extreme weather can affect how diodes work.

Even with these limits, diodes are crucial for turning AC into DC, powering many devices efficiently.

Transformers in a DC Rectifier System

Transformers are important in a DC rectifier system. They change the voltage of alternating current (AC) to the needed level. This makes sure devices get the right power without problems.

Voltage Regulation and Protection

Transformers control voltage by increasing or lowering it as needed. This stops voltage changes that might harm sensitive parts. If transformers fail, like from overheating, voltage can become unstable. This affects how well the DC rectifier system works. Good transformers keep voltage steady, which is key for reliable power.

Soft switched transformers fail less often than hard switched ones. For example:

Soft switched failure rates are 6.27, while hard switched are 7.79.
Soft switched systems last longer, with 159,451 hours vs. 128,353 hours.
Soft switching lowers failures by 81.92% for IGBTs, 68.16% for diodes, and 50% for capacitors.

These numbers show why efficient transformer designs are important for long-term use.

Step-Up vs. Step-Down Transformers

There are two main types of transformers: step-up and step-down. Step-up transformers raise AC voltage for high-voltage needs. Step-down transformers lower voltage for low-voltage devices. Picking the right one depends on your system's needs.

Preparing AC for Rectification

Before AC becomes DC, it needs adjustment. Transformers set the voltage to the right level for conversion. This reduces energy waste and improves system efficiency. Using a transformer ensures smooth and effective AC-to-DC conversion.

Transformers not only adjust voltage but also protect systems from harm. Their role in preparing AC is vital for stable and reliable DC power.

Filters: Making DC Output Smooth in a Rectifier System

Filters are very important in a rectifier system. They help smooth the output and keep the direct current steady. Without filters, the DC output would have ripples. These ripples can mess up how sensitive devices work.

How Filters Reduce Ripples in DC Output

When AC turns into DC, ripples often appear. Ripples are small, unwanted voltage changes. Filters lower these ripples, making the DC output smoother and more reliable. This is very important for things like medical tools and communication devices. Even tiny voltage changes can cause big problems for these systems.

Filters block high-frequency parts and let the DC signal pass. This keeps the output stable and quiet, improving the rectifier system's performance.

Types of Filters (Capacitor, Inductor, LC Filters)

There are different filters for rectifier systems. Each type has its own benefits:

Capacitor Filters: These are simple and cheap. They store energy and release it when needed to reduce ripples. But they may not handle high-frequency noise well.
Inductor Filters: Inductors fight changes in current, smoothing the DC output. They work well with high currents but are often large.
LC Filters: These combine inductors and capacitors for better ripple control. They are small and efficient but can face issues like inrush currents.
LCL Filters: These advanced filters block high-frequency noise very well. Adding more inductance improves their performance and meets IEEE and IEC standards.

Keeping DC Power Stable for Sensitive Devices

Sensitive electronics need steady power to work properly. Filters help by cutting noise and voltage changes. Important measures that show filter performance include:

Metric	What It Means
Voltage Noise	Small voltage changes that can harm circuits.
Current Noise	Current changes that may make electronics unstable.
Phase Noise	Timing errors that can affect how circuits sync.
Timing Jitter	Timing changes that can cause data errors.
Spurious Signals	Unwanted signals that disturb circuits.
Noise Reduction	Filters like R-L-C lower power supply noise for sensitive devices.
Allowable Noise Density	Shows how much noise a power supply can handle without problems.

Using the right filters ensures clean and steady DC power. This protects sensitive devices and helps them work better.

Regulators: Keeping Voltage Steady in a DC Rectifier System

Voltage regulators are important for keeping the output voltage steady. They adjust the voltage to match what devices need. This stops sudden changes that could damage sensitive equipment.

How Voltage Regulators Work

Voltage regulators use feedback to keep the output stable. They compare the output voltage to a set reference voltage. If there’s a difference, they fix it to reduce errors. This process is called negative feedback. For example:

The output reaches 30 V in just 10 milliseconds at start-up.
It stays steady even when the load changes quickly, like from 36 Ω to 82 Ω.

These features make regulators key for a dependable power supply.

Types of Voltage Regulators (Linear and Switching)

There are two main types of voltage regulators: linear and switching. Each type works differently:

Feature	Linear Regulators	Switching Regulators
Design Complexity	Simple Design	Complex Design
Power Dissipation	Wastes Extra Power	Saves Extra Power
Efficiency	Less Efficient	More Efficient
Thermal Stress	More Heat Produced	Less Heat Produced

Linear regulators are easy to use and good for small devices. But they waste more energy as heat. Switching regulators are better for bigger systems like data centers because they save more energy.

Why Regulators Are Important for Data Centers and Other Uses

In data centers, regulators keep servers running without interruptions. They handle quick voltage changes and keep power stable. This prevents downtime and saves energy, lowering costs. Regulators are also used in medical tools, communication devices, and other systems needing steady DC power.

Integration of Components in a DC Rectifier System

Steps to Change AC to DC Power

Turning alternating current (AC) into direct current (DC) happens in steps. Each part of the rectifier system has a job to do. First, the transformer changes the AC voltage to the right level. If your device needs less voltage, it lowers it. For higher voltage needs, it raises the voltage. This step gets the AC ready for the next process.

Diodes come next. They let electricity flow in one direction only. This stops reverse flow and turns AC into a bumpy DC signal. But this signal still has ripples, which can bother sensitive devices.

Filters fix this problem. They smooth out the ripples and make the DC steady. Capacitor filters store energy and fill gaps in the signal. Inductor filters keep the current flow stable. LC filters use both methods for better results.

Finally, voltage regulators keep the DC output steady. They adjust the voltage to fit your device’s needs. This stops sudden changes that could harm your equipment. Together, these parts finish the AC-to-DC process, giving clean and reliable power.

How Parts Work Together for Best Results

All parts of the rectifier system work as a team. Transformers start by changing the AC voltage. Diodes then turn the adjusted AC into DC, making sure current flows one way. Filters clean up the DC signal, removing ripples and noise.

Voltage regulators keep the DC output stable. They react to changes in load or input voltage to give steady power. These parts must work well together. If one part fails, the whole system can lose efficiency.

For example, if the transformer doesn’t adjust voltage correctly, diodes may overheat or break. Poor filtering can leave ripples in the DC, causing problems for sensitive devices. When all parts work properly, the system stays reliable and efficient.

Where DC Rectifier Systems Are Used Today

DC rectifier systems power many modern technologies. Data centers use them to give stable DC power to servers and networks. Without steady power, these centers could shut down and cause big problems.

In hospitals, machines like MRI scanners and patient monitors need clean DC power. Even small power changes can cause errors, so reliable systems are very important. Communication tools like cell towers and satellites also depend on rectifiers for smooth operation.

You’ll also see these systems in green energy setups. Solar panels make DC power, but rectifiers help convert AC back to DC for storage or use. Electric cars use rectifiers to charge their batteries efficiently. From phones to factories, rectifier systems are key to modern life.

A DC rectifier system changes alternating current (AC) into direct current (DC). This gives steady power to devices that need it. Each part has an important job. Diodes let current flow in one direction. Transformers change the voltage to the right level. Filters make the DC output smooth. Regulators keep the voltage steady. These parts work together to turn AC into DC efficiently.

Integrated systems make the process better and more reliable. Closed-loop designs are more stable and perform better than open-loop ones.

Metric	Open-Loop Values	Closed-Loop Values
Gain Margin	0.98 dB, 1.03 dB	3.15 dB, 1.52 dB
Phase Margin	130-145 degrees	115-131 degrees
System Stability	Less stable	More stable
Dynamic Performance	Lower	Better

DC rectifier systems are very important for modern technology. They give stable power to data centers, electronics, and green energy systems. This helps devices work smoothly and without problems.

FAQ

What does a DC rectifier system do?

A DC rectifier changes alternating current (AC) into direct current (DC). This gives steady power to devices like servers and medical tools. It helps devices work without interruptions.

Why are diodes important in a rectifier system?

Diodes let electricity flow in one direction only. This turns AC into DC and stops reverse current. Reverse current can harm sensitive parts in your system.

How do filters make DC output better?

Filters smooth out bumps in DC voltage. They cut ripples and give clean power. This is very helpful for devices like medical tools and servers.

How are linear and switching voltage regulators different?

Linear regulators are simple but waste energy as heat. Switching regulators save energy and stay cooler. They work well for big systems like data centers.

Where are DC rectifier systems used?

DC rectifiers are used in hospitals, data centers, and green energy setups. They power servers, medical machines, and electric cars for smooth operation.
