How to Plan and Build a Steel Structure for PV Panels

Building a Steel Structure for PV Panel systems begins with good decisions. Picking strong, rust-proof steel makes it last longer, even in bad weather or near the ocean. Special coatings protect the frame from water and sun. Strong shapes like triangles and tight fasteners help keep it steady. These steps keep the system safe from storms and heat. They also help the panels work well and last a long time. Anyone can build a strong system by using the right ways and materials.

Key Takeaways

• Pick steel that is strong and does not rust. Use coatings to protect the steel. This helps your PV panel structure last over 20 years. - Choose the right steel structure type for your needs. You can use ground-mounted, roof-mounted, or tracking types. Think about your space, energy needs, and site conditions. - Look at your site closely before building. Check sunlight, shade, weather, and soil strength. This keeps your system safe and helps it make good energy. - Follow local building codes and make clear plans. This keeps your system safe, legal, and easy to take care of. - Build carefully with strong foundations and tight bolts. Mount panels the right way. Check your system often to stop problems before they start.

Steel Structure for PV Panel Types

Picking the right Steel Structure for PV Panel depends on where you put it and how much energy you need. Each kind has its own good points and works best in certain places.

Ground-Mounted

Ground-mounted systems use steel frames that go into the ground. These frames hold the panels at a good angle for sunlight. People often pick ground-mounted systems for big yards or open fields.

• Advantages:

  • They make more energy, about 22%, because the panels stay cooler and do not get too hot.

  • It is easier to check and fix the panels, so it costs less to keep them working.

  • You do not need to use the roof, so it is good for places with small roofs.

  • There are fewer electrical dangers for homes, like less chance of lightning or grounding problems.

• Disadvantages:

  • You need a lot of open space with no shade.

  • You might need special permits because of local rules.

  • The steel structure costs more at the start.

  • It can hurt the environment by taking away plants or bothering animals and crops.

Roof-Mounted

Roof-mounted Steel Structure for PV Panel systems go right on top of roofs. Installers use brackets, rails, or other ways to hold the panels in place. Steel roofs are good for these systems because you do not need to make holes, so leaks are less likely.

Steel roof structures can fit many ways of putting up panels. Rail-based systems let you move panels around, and rail-less systems use less stuff and work faster. Some systems use stand-offs to tilt the panels for better sun. Roof-mounted systems work for new buildings and old ones. They last a long time, stand up to weather, and save money for homes and businesses.

Tracking Systems

Tracking systems use steel frames that move the panels to follow the sun. Dual-axis trackers move two ways, east-west and north-south, to catch more sunlight all day. These systems can make 50% more energy than fixed ones. Steel tracking structures last over 30 years and keep working well, even in bad weather. Raised trackers let people use the land under them for farming or other things. Tracking systems are best for people who want the most energy from their PV panels.

Site Assessment

Location & Sun Exposure

Choosing the right spot for solar panels starts with checking how much sun the area gets. The sun’s path changes with the seasons, so the best location faces true south in the Northern Hemisphere. Panels work best when they tilt at an angle close to the site’s latitude. Shading from trees, buildings, or other objects can cut energy output by half. Even small shadows lower performance. High temperatures can also reduce how well panels work, while cooler spots help them stay efficient. People should look for open areas with steady sunlight and little shade. They should also think about how the sun moves during the year.

Environmental Factors

Every site faces different weather and climate challenges. Strong winds, heavy snow, and storms can damage panels or their mounts. In places with hurricanes or lots of snow, the structure must handle these loads. Coastal areas need extra protection against salt, which can cause rust. Galvanized steel works well in most climates, but stainless steel lasts longer in harsh places. The local climate also affects how often people need to clean or check the panels. Regular cleaning and inspections help keep the system working well, even after storms or dust.

Tip: Always check local building codes. These rules help keep the system safe and legal.

Load & Space

The weight of the panels and the structure matters. Roofs must support the extra load if using a roof-mounted system. Ballasted systems use weight to hold panels down, so the roof or ground must be strong enough. Mechanically anchored systems need a sturdy base to resist wind and snow. Large, open spaces work best for ground-mounted systems, making maintenance easier and helping panels stay cool. Tracking systems need more room but can make more energy. People should measure the space and check the strength of the roof or ground before picking a design.

Materials & Design

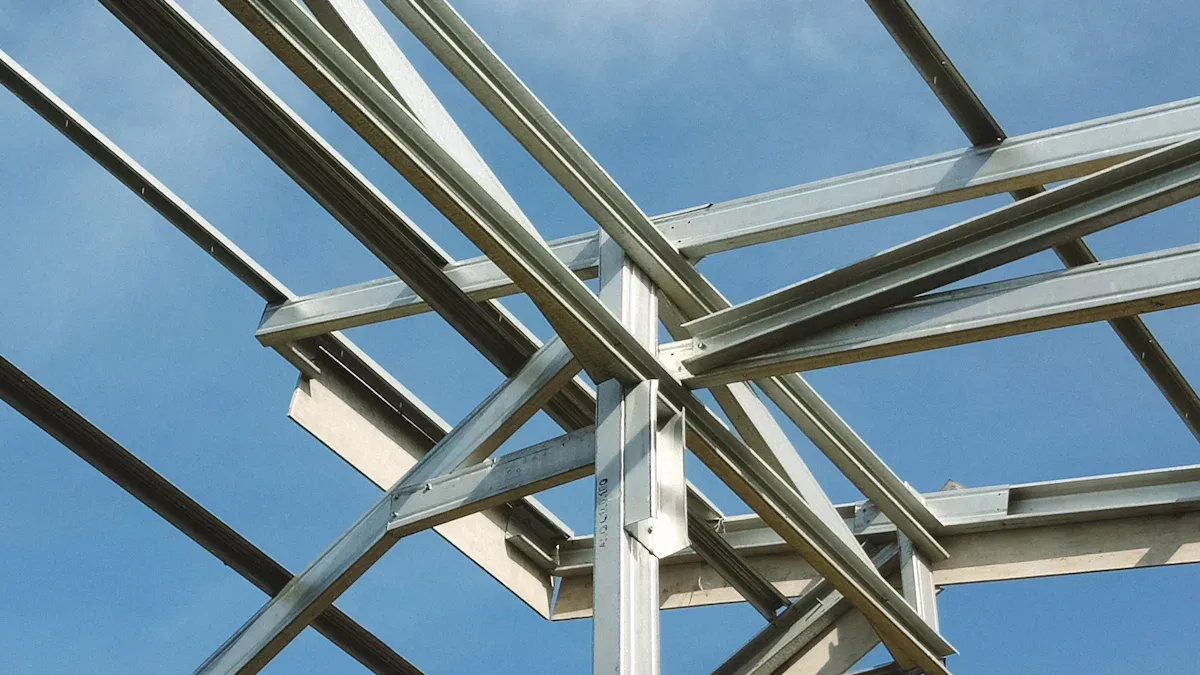

Steel Grades & Coatings

Picking the right steel grade and coating is very important. These choices help the frame stay strong and last longer. Different grades and coatings stop rust and damage from weather. The table below explains how each part helps the structure last and need less fixing:

Steel is the best pick for most PV panel frames. It is strong and can hold heavy panels. It also stands up to wind and snow. Galvanized steel, like S350-GD with Zn 450 or ZnMg coatings, works in many places. Stainless steel lasts even longer, especially near the sea or in factories. Aluminum is light and does not rust, but it is not as strong as steel. Good coatings, like hot-dip galvanizing or special paints, protect the frame from water and sun.

Note: Always make sure the steel and coatings meet world standards. This helps the frame last longer and stay safe.

Corrosion Resistance

Corrosion can make a Steel Structure for PV Panel weak over time. Builders use many ways to stop rust and damage:

• Use metals that do not rust easily, like stainless steel 304 or special aluminum alloys.

• Add barriers or washers to keep different metals apart.

• Make joints that let water drain away so it does not collect.

• Put on protective coatings, like epoxy or powder coatings, to cover the metal.

• Try new ideas, like self-healing coatings or cathodic protection, for more strength.

• Check and fix the frame often, especially after storms or in salty air.

Humidity, heat, and salt in the air can make rust happen faster. Places near the sea need extra care. Builders should pick materials that fit the local weather. For example, stainless steel or coated steel is best near the ocean. Aluminum may be enough in dry places. Regular checks help find rust or damage early. Following rules like ISO 12944 and ASTM B117 keeps the frame strong and safe.

Tip: If you skip coatings or use the wrong metal, rust can come fast and make the system not last as long.

Structural Design

A good design keeps the Steel Structure for PV Panel safe and working well for many years. Designers look at the weight of the panels, wind, snow, and even earthquakes. They pick shapes and connections that spread the load out. Triangular braces and crossbars make the frame stronger. Bolts and welds must be tight and secure.

Designers also plan for easy cleaning and repairs. They leave space between panels for air to move, which keeps them cool and working well. The frame should tilt the panels at the best angle for sunlight. In places with strong winds or heavy snow, the design must handle extra force.

Long-lasting frames use the right steel, strong coatings, and smart shapes. They follow building codes and pass safety tests. This planning helps the system last over 20 years with little trouble.

Planning & Permits

Local Codes

Builders must check local building codes before starting. These codes keep people and property safe. They set rules for safety, fire, and structure. Local officials might have extra rules. Installers should always ask about these first. The table below lists some important codes and standards:

Tip: Following these codes keeps the system safe. It also helps with getting insurance.

Drawings & Documentation

Installers need to make clear drawings and documents. These plans show where each part goes. They help everyone see how the system fits together. Good drawings help stop mistakes and delays. Most cities want these documents for permits. Plans should include:

• Site layout with panel locations

• Structural details for frames and foundations

• Electrical diagrams for wiring and grounding

• Notes on fire access and clearances

Keeping records helps with repairs or upgrades later. It also proves the system follows all rules.

Site Prep

Site prep starts with checking sunlight. The area must get sun most of the day. Workers should clear away anything blocking light, like branches or trash. Before building, they must get all needed permits. They should also look for local incentives.

A good site prep process includes:

1. Do a geological survey to check soil and water.

2. Design the PV plant for the land’s shape and soil.

3. Pick the right mounting type, like ground screws or concrete bases.

4. Install the mounting structure with the best tilt and direction for sunlight.

Good site prep helps the Steel Structure for PV Panel last longer and work better.

Building & Installation

Building a Steel Structure for PV Panel systems takes many steps. Each step helps the system last longer and work better. Good planning and safe methods make the job strong and safe.

Foundations

A strong foundation holds up the whole Steel Structure for PV Panel. The type you need depends on the soil, weather, and size. Workers should test the soil first to see how strong it is and how much water is there. This helps them pick the best foundation.

Common foundation types include:

• Screw piles: These work in many soils, even hard or soft ones. They need special machines to put them in. They give strong support and do not need much digging.

• Concrete embedded parts: These work in most soils. They are easy to build but need more digging and time to dry.

• Spiral ground piles (helical): These are made from galvanized steel with spiral blades. They do not rust and go in fast. They cost more than simple posts.

• Concrete precast piles: These have a big base for extra strength. They work in many soils but need skilled workers.

• Ground-anchored foundations: These use blades that grip the soil tight. They are very safe but cost more.

Tip: Always test the soil before picking a foundation. This stops problems later and keeps the structure safe.

Frame Assembly

The next step is putting the steel frame together. Workers must follow the plan and use the right parts. Each part should meet local rules and pass safety checks.

Step-by-step frame assembly:

1. Look at the plan and check all parts for quality.

2. Lay out the frame pieces on the ground as shown in the plan.

3. Connect the main beams and supports with bolts or welds.

4. Add cross braces and triangle supports to make it strong.

5. Tighten all bolts and nuts so nothing is loose.

6. Make sure the frame is flat and square before moving on.

Note: Using good, tested parts helps the Steel Structure for PV Panel last longer and stay safe.

Panel Mounting

Putting the PV panels on the steel frame needs care. The right way keeps the panels safe and working well.

Best practices for panel mounting:

1. Attach roof hooks or ground brackets to the frame. Pick the right kind and number for the panel weight and weather.

2. Use adjustable hooks to make the panels level on bumpy ground.

3. Bolt the support rails tight to make a strong base.

4. Fix the PV panels to the rails with clamps or mounts. Follow the maker’s instructions.

5. Space the panels so they do not shade each other and air can move.

6. Run cables neatly and seal holes to keep water out.

• Aluminum and galvanized steel are good for mounting brackets. They do not rust and last a long time.

• Adjustable tilt lets panels get more sun during the year.

Tip: Always check that all bolts are tight and cables are safe from water and animals.

Safety

Safety matters at every step. Workers should wear helmets, gloves, and safety shoes. They must use ladders and lifts the right way. Only trained people should do electrical work.

Safety checklist:

• Wear safety gear like helmets and gloves.

• Keep the work area clean and safe.

• Use the right tools for each job.

• Look for wires above before lifting frames or panels.

• Make sure power is off before working with wires.

• Follow local safety rules and building codes.

⚠️ Alert: Never skip safety steps. Accidents can hurt people and damage the Steel Structure for PV Panel.

Common Mistakes

Many problems can happen when building and installing. Knowing these mistakes helps you stop them.

Frequent mistakes and how to avoid them:

1. Weak braces in trackers can bend under the panel’s weight. Use strong, tested parts.

2. Loose bolts or clamps can make the frame shaky. Always tighten them right.

3. Wrong tilt or angle can lower energy by up to 15%. Use solar tools to find the best angle.

4. Bad cable work can waste energy or cause fire. Plan cable paths and use surge protectors.

5. Not checking the soil or site can make the foundation fail. Always do a site check and soil test.

6. Skipping final checks or not testing can hide problems. Always test the system and check how it works.

• Bad site checks, ignoring shade, or using wrong parts can make the system weak.

• Using parts that are not certified or skipping safety checks is risky.

Note: Good planning, quality parts, and regular checks help stop mistakes and keep the system working well.

Building a Steel Structure for PV Panel systems takes good planning and care.

1. First, check the site for sunlight, roof strength, and weather.

2. Pick materials that do not rust and add coatings to protect them.

3. Follow building rules and keep records to stay safe and get insurance.

4. Check the system often and tighten bolts to keep it steady.

   For the best results, ask experts or use guides if you are not sure about any step.

FAQ

What steel type works best for PV panel structures?

Galvanized steel works best for most PV panel frames. It resists rust and lasts over 20 years. Stainless steel gives extra protection in salty or harsh climates.

How often should someone check the steel structure?

People should check the structure at least once a year. After storms or heavy snow, they should look for loose bolts, rust, or damage.

Can someone build a steel PV structure without professional help?

A person with basic tools and skills can build small systems. For large or complex projects, experts should help to ensure safety and code compliance.

What is the best way to prevent rust on steel frames?

Applying a good coating, like hot-dip galvanizing or weatherproof paint, helps prevent rust. Regular cleaning and quick repairs also keep the frame strong.
