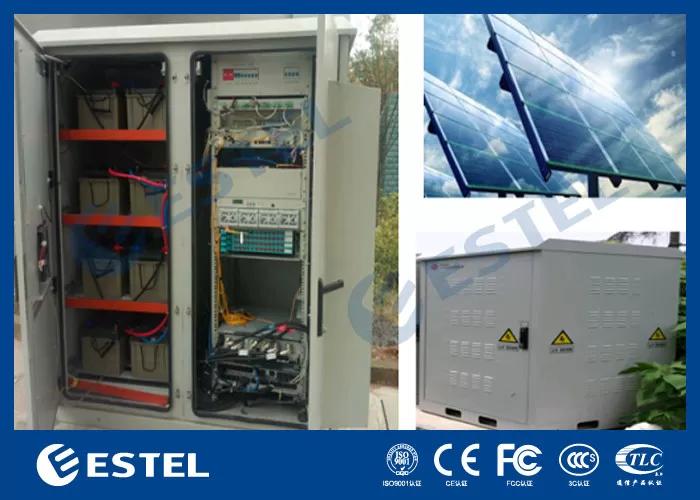

The power system for an outdoor hybrid power supply cabinet

A power system in an outdoor hybrid power supply cabinet integrates multiple energy sources to ensure a continuous and reliable energy supply. Its primary function is to seamlessly combine sources like solar panels, wind turbines, and grid power while managing energy storage and distribution. This system plays a critical role in supporting applications in remote areas where traditional power grids are unavailable or unreliable. Research shows that solar and wind resources could meet at least 72% of electricity demand in major countries without excess annual generation or storage. Adding energy storage enhances reliability, making these systems indispensable for outdoor and remote operations.

Key Takeaways

• Outdoor power cabinets use solar, wind, and grid power for energy.

• Batteries, like lithium-ion ones, store energy for low-power times.

• Smart controls manage energy by choosing the best power source.

• Strong covers protect the system from bad weather and damage.

• Modular designs make it easy to add more parts later.

Key Components of the Power System

Power generation sources (e.g., solar panels, wind turbines, grid power)

Outdoor hybrid power supply cabinets rely on diverse power generation sources to ensure consistent energy availability. Solar panels, wind turbines, and grid power form the backbone of these systems. Each source contributes unique advantages, making the overall power system more robust and adaptable.

• Solar panels excel in harnessing renewable energy. With consistent solar irradiation of 1000 W/m², they deliver reliable power output. Advanced technologies like the maximum power point tracking (MPPT) algorithm optimize energy harvest, ensuring efficiency even under fluctuating sunlight conditions.

• Wind turbines complement solar energy by generating power during periods of strong wind. Hybrid MPPT algorithms improve their adaptability to rapid wind speed changes, maintaining stable energy production. Transient responses during wind input variations remain within acceptable limits, further enhancing reliability.

• Grid power acts as a dependable backup, especially during extended periods of low solar or wind activity. Its integration ensures uninterrupted energy supply, particularly in critical applications.

By combining these sources, the power system achieves a balanced and efficient energy supply, capable of meeting the demands of outdoor and remote environments.

Energy storage systems (e.g., batteries)

Energy storage systems play a pivotal role in maintaining the stability of an outdoor hybrid power supply cabinet. Batteries store excess energy generated by solar panels and wind turbines, ensuring availability during periods of low generation or high demand. Lithium-ion batteries, known for their high energy density and long lifespan, are commonly used in these systems.

Empirical data highlights the effectiveness of flywheel energy storage systems in managing high-frequency fluctuations in wind power. These systems efficiently store and distribute energy during both positive and negative fluctuations. This capability enhances overall energy storage efficiency while minimizing environmental impact. By integrating advanced storage technologies, the power system ensures seamless energy distribution and reduces reliance on non-renewable sources.

Power rectifiers and control modules

Power rectifiers and control modules serve as the brain of the power system, ensuring smooth operation and optimal performance. Rectifiers convert alternating current (AC) from grid power or wind turbines into direct current (DC) for storage and distribution. This conversion minimizes energy loss and enhances system efficiency.

Control modules oversee the integration and prioritization of power sources. They dynamically allocate energy based on availability and demand, ensuring uninterrupted supply. For instance, during peak sunlight hours, the system prioritizes solar energy, while wind or grid power takes precedence during cloudy or windier conditions. These modules also monitor system performance, enabling real-time adjustments to optimize efficiency and prevent overloading.

By combining rectifiers and control modules, the power system achieves a high degree of automation and reliability, making it suitable for diverse applications in outdoor and remote settings.

Protective enclosures and environmental safeguards

Protective enclosures and environmental safeguards form a critical layer of defense for outdoor hybrid power supply cabinets. These features ensure the longevity and reliability of the equipment by shielding it from external environmental challenges. Designed with durability in mind, these enclosures protect sensitive components from physical damage, weather extremes, and other environmental hazards.

Modern outdoor cabinets incorporate advanced materials and engineering to withstand harsh conditions. Manufacturers often use galvanized steel or aluminum to construct these enclosures. These materials resist corrosion and provide robust protection against moisture, dust, and extreme temperatures. This ensures that the internal components remain operational even in the most challenging environments.

Tip: Choosing the right enclosure material can significantly enhance the lifespan of the power system, especially in areas prone to severe weather.

To maintain optimal performance, these cabinets also include environmental safeguards such as cooling systems and ventilation mechanisms. Advanced cooling systems regulate internal temperatures, preventing overheating during high ambient heat. Proper ventilation ensures airflow, reducing the risk of condensation and maintaining a stable internal environment. These features are particularly vital for ensuring reliable operation in remote or outdoor locations where maintenance visits may be infrequent.

Key benefits of protective enclosures and environmental safeguards include:

• Resistance to harsh weather conditions, such as rain, snow, and extreme heat, ensuring uninterrupted operation.

• Protection against dust and moisture, which could otherwise damage sensitive electronic components.

• Enhanced durability through the use of corrosion-resistant materials like galvanized steel or aluminum.

• Improved thermal management through advanced cooling systems, critical for maintaining equipment performance.

By integrating these protective measures, outdoor hybrid power supply cabinets achieve a high level of resilience. This makes them suitable for deployment in diverse environments, ranging from arid deserts to humid coastal regions. The combination of robust enclosures and environmental safeguards ensures that the power system remains reliable, efficient, and capable of meeting the demands of outdoor applications.

How the Power System Works

Integration and prioritization of power sources

The integration of multiple power sources is a defining feature of an outdoor hybrid power system. This process ensures a seamless energy supply by combining solar panels, wind turbines, and grid power. Each source is prioritized based on availability and efficiency. For instance, during sunny conditions, the system prioritizes solar energy. When wind speeds increase, wind turbines take precedence. Grid power serves as a reliable backup, ensuring uninterrupted energy during periods of low renewable generation.

Control modules play a critical role in managing this integration. These modules monitor the availability of each power source in real time. They dynamically allocate energy to meet demand while minimizing waste. This prioritization strategy not only optimizes energy use but also extends the lifespan of the system's components. By leveraging advanced algorithms, the power system achieves a balance between renewable and conventional energy sources, ensuring reliability in diverse environments.

Energy storage and distribution processes

Energy storage and distribution are vital for maintaining the stability of the power system. Batteries store surplus energy generated by solar panels and wind turbines. This stored energy is then distributed during periods of high demand or low generation. Lithium-ion batteries are commonly used due to their high energy density and long lifespan. These batteries ensure that the system can meet energy demands even in remote or harsh environments.

The efficiency of energy storage and distribution processes offers several advantages:

• Reduction of total investment costs.

• Increase in storage and system lifetime.

• Improvement in overall system efficiency.

Advanced technologies, such as flywheel energy storage systems, further enhance these processes. These systems manage high-frequency fluctuations in wind power, ensuring stable energy output. By integrating such technologies, the power system minimizes energy losses and maximizes reliability.

Role of power management systems in optimizing efficiency

Power management systems are the backbone of an efficient outdoor hybrid power system. These systems monitor power consumption, voltage levels, and environmental conditions in real time. Intelligent load-shedding capabilities prioritize critical equipment during power constraints, ensuring uninterrupted operation. Smart charging algorithms extend battery life by optimizing charging cycles, reducing wear and tear.

Additional features enhance the system's performance:

• Bi-directional converters maintain stable charging and minimize losses from battery mismatches.

• Environmental control systems use sensors and adaptive algorithms to regulate internal conditions.

• Temperature management systems employ active and passive cooling methods to optimize performance and extend battery life.

Humidity control features prevent condensation, maintaining ideal moisture levels. Variable-speed fans reduce power consumption, contributing to the system's energy efficiency. These advanced capabilities ensure that the power system operates at peak efficiency, even in challenging conditions.

By integrating these technologies, the power system achieves a high level of automation and reliability. This makes it suitable for a wide range of applications, from telecommunications to renewable energy projects.

Environmental monitoring and temperature control

Environmental monitoring and temperature control are essential for ensuring the optimal performance and longevity of outdoor hybrid power supply cabinets. These systems operate in diverse and often harsh environments, where fluctuations in temperature and humidity can significantly impact their efficiency and reliability. Advanced monitoring and control mechanisms address these challenges by maintaining stable internal conditions, safeguarding sensitive components, and enhancing overall system resilience.

The Role of Environmental Monitoring

Environmental monitoring systems continuously track key parameters such as temperature, humidity, and air quality. This data provides real-time insights into the operating conditions within the cabinet, enabling proactive adjustments to maintain stability. For instance, sensors detect rising temperatures or increased humidity levels, triggering automated responses to prevent potential damage.

Key benefits of environmental monitoring include:

• Early Detection of Issues: Continuous monitoring identifies anomalies before they escalate into critical failures.

• Optimized Performance: Stable environmental conditions ensure that all components function at peak efficiency.

• Extended Equipment Lifespan: By mitigating stress caused by extreme conditions, monitoring systems reduce wear and tear on sensitive parts.

Importance of Temperature Control

Temperature control systems play a pivotal role in maintaining the internal environment of the cabinet. Excessive heat can degrade batteries, reduce the efficiency of power rectifiers, and compromise the performance of control modules. Conversely, low temperatures can affect battery capacity and slow down system responsiveness. Effective temperature regulation ensures that the cabinet operates within an optimal range, regardless of external conditions.

Advanced cooling and heating technologies address these challenges. Active cooling systems, such as air conditioners or thermoelectric coolers, dissipate excess heat during high-temperature conditions. Passive cooling methods, including heat sinks and ventilation, provide energy-efficient alternatives for maintaining thermal balance. In colder climates, heating elements prevent freezing and maintain battery functionality.

Note: Maintaining a consistent temperature range not only improves system performance but also reduces energy consumption, contributing to overall efficiency.

Humidity Control and Its Impact

Humidity levels directly influence the reliability of outdoor hybrid power supply cabinets. High humidity can lead to condensation, which may cause short circuits or corrosion of electronic components. Low humidity, on the other hand, increases the risk of static electricity, potentially damaging sensitive equipment. Effective humidity control systems address these issues by maintaining relative humidity between 40-60%, a range proven to mitigate condensation and static electricity risks.

Specialized technologies ensure reliable humidity control across various environmental conditions. These systems adapt to both controlled indoor settings and extreme outdoor environments, providing consistent protection. By integrating these technologies, hybrid power supply cabinets achieve enhanced durability and operational stability.

Evidence of Effectiveness

Environmental monitoring and temperature control measures have demonstrated their effectiveness in maintaining system performance. Studies highlight the following:

• Temperature and humidity are critical parameters influencing the performance and longevity of substation equipment.

• Advanced control systems enhance equipment reliability and operational life by managing these environmental factors.

• Effective humidity control systems maintain relative humidity between 40-60%, mitigating issues like condensation and static electricity.

• Specialized technologies ensure consistent humidity control, even in extreme outdoor settings.

By leveraging these advanced systems, outdoor hybrid power supply cabinets can operate reliably in diverse and challenging environments. This ensures uninterrupted energy supply for critical applications, from telecommunications to renewable energy projects.

Benefits of an Outdoor Hybrid Power Supply Cabinet

Reliability in remote and harsh environments

Outdoor hybrid power supply cabinets excel in providing reliable energy solutions in remote and challenging environments. Their robust design ensures uninterrupted operation even under extreme weather conditions, such as high temperatures, heavy rainfall, or strong winds. Protective enclosures and advanced environmental safeguards shield sensitive components from physical damage and environmental stressors. This durability makes them ideal for applications in areas where traditional power grids are unavailable or unreliable.

The integration of multiple energy sources, including solar panels, wind turbines, and grid power, further enhances reliability. By dynamically prioritizing these sources based on availability, the power system ensures a continuous energy supply. Energy storage systems, such as lithium-ion batteries, store surplus energy, guaranteeing power availability during periods of low generation. These features collectively enable the cabinet to maintain consistent performance in diverse and harsh settings.

Energy efficiency and cost savings

Energy efficiency is a hallmark of outdoor hybrid power supply cabinets. These systems optimize energy use by integrating renewable sources like solar and wind, reducing reliance on non-renewable energy. Advanced power management systems monitor consumption and adjust energy distribution in real time, minimizing waste. Features like peak load management and energy monitoring contribute to significant energy savings.

Cost savings are another advantage. By utilizing renewable energy, these cabinets lower operational costs compared to traditional diesel generators. Building automation systems and heat recovery technologies further enhance efficiency, reducing energy expenditure. Empirical data highlights the economic benefits, with levelized energy expenditure at 17.16 ¢/kWh, significantly lower than the 73.40 ¢/kWh cost of diesel gensets. These savings make hybrid power systems a cost-effective solution for long-term energy needs.

Scalability and adaptability for various applications

The modular design of outdoor hybrid power supply cabinets allows for easy scalability. Operators can add or upgrade modules without disrupting existing operations, making these systems adaptable to changing energy demands. This flexibility supports future expansions, ensuring the cabinet remains relevant as requirements evolve.

Performance metrics underscore their adaptability. For instance, the efficacy of the electricity system decreases only slightly, from 21.05% to 17.43%, when scaled for larger applications. Additionally, the internal return rate of 15.15% and a net present value of $109,236 demonstrate their economic viability. These systems also adapt seamlessly to diverse applications, from telecommunications to renewable energy projects, ensuring operational continuity across industries.

Tip: Modular designs and flexible configurations make these cabinets a future-proof investment for growing energy needs.

Reduced environmental impact and carbon footprint

Outdoor hybrid power supply cabinets significantly reduce environmental impact and carbon emissions by integrating renewable energy sources like solar and wind. These systems minimize reliance on fossil fuels, which are major contributors to greenhouse gas emissions. By prioritizing clean energy, hybrid power systems play a vital role in combating climate change and promoting sustainable energy practices.

The environmental benefits of hybrid systems are evident in their growing adoption. In 2023, the number of hybrid plants exceeding 1 MW reached 469, marking a 21% increase from the previous year. Among these, 80 new hybrid systems were added, with 66 combining solar and storage technologies. This trend highlights the industry's shift toward renewable energy solutions that reduce carbon footprints.

The cost-effectiveness of solar photovoltaic (PV) technology further enhances its appeal. In 2023, the levelized cost of electricity (LCOE) for solar PV was 56% lower than that of fossil fuels. This represents a dramatic shift from 2010 when solar PV was four times more expensive. The affordability of renewable energy accelerates its adoption, reducing the environmental burden of traditional energy sources.

By leveraging renewable energy and advanced storage technologies, outdoor hybrid power supply cabinets achieve a dual benefit. They provide reliable energy solutions while significantly lowering carbon emissions. This makes them an essential component in the global transition to a cleaner, more sustainable energy future.

Installation and Maintenance Considerations

Site selection and environmental factors

Selecting the right site is critical for the successful installation of outdoor hybrid power supply cabinets. Proper site selection ensures optimal energy generation, efficient connectivity, and long-term reliability. Several criteria guide this process, as summarized in the table below:

In addition to these criteria, environmental factors play a significant role. Proper location selection minimizes wiring length, reducing power loss and signal interference. High IP-rated enclosures protect internal components from dust and water, ensuring functionality in diverse climates. Neglecting weatherproofing can lead to moisture damage and temperature-related failures, compromising system reliability. Accessibility and visibility are also essential to ensure safe and efficient operation.

Proper sizing and configuration of components

Accurate sizing and configuration of components are essential for the efficient operation of hybrid power systems. Response Surface Methodology (RSM) provides a robust framework for determining the optimal size of system components. This method considers climatic, geographical, technical, and economic factors to ensure the system meets energy demands effectively. Sensitivity analysis further refines the configuration by evaluating the impact of various input parameters, such as solar radiation and wind speed, on system performance.

Mathematical models developed through these techniques guide the selection of components like solar panels, wind turbines, and batteries. For example, the models help determine the ideal capacity of energy storage systems to balance supply and demand. Proper configuration not only enhances system efficiency but also reduces operational costs and extends the lifespan of critical components.

Routine maintenance and monitoring

Routine maintenance and monitoring are vital for ensuring the long-term reliability of outdoor hybrid power supply cabinets. Regular inspections help identify potential issues before they escalate into costly failures. Key maintenance tasks include cleaning solar panels to maximize energy absorption, checking battery health, and inspecting wiring for wear or damage.

Advanced monitoring systems simplify this process by providing real-time data on system performance. These systems track parameters such as energy output, battery charge levels, and environmental conditions. Alerts generated by the monitoring system enable technicians to address issues promptly, minimizing downtime.

Tip: Establishing a maintenance schedule and leveraging automated monitoring tools can significantly reduce the risk of unexpected failures. This proactive approach ensures the system operates at peak efficiency, even in challenging environments.

Ensuring compliance with safety and regulatory standards

Adhering to safety and regulatory standards is essential for the successful deployment and operation of outdoor hybrid power supply cabinets. These standards ensure the safety of personnel, protect equipment, and maintain environmental integrity. Compliance also minimizes legal risks and enhances the system's reliability.

Key Safety Standards to Follow

Outdoor hybrid power systems must meet specific safety requirements to prevent hazards. These include:

• Electrical Safety Standards: Systems must comply with guidelines such as the National Electrical Code (NEC) or International Electrotechnical Commission (IEC) standards. These regulations govern wiring, grounding, and circuit protection to prevent electrical shocks and fires.

• Battery Safety Protocols: Lithium-ion batteries require adherence to standards like UL 1642 or IEC 62133. These protocols address risks such as thermal runaway and overcharging.

• Structural Integrity Requirements: Enclosures must meet IP (Ingress Protection) ratings to resist dust and water. Standards like NEMA 4X or IEC 60529 ensure cabinets can withstand harsh environments.

Regulatory Compliance for Environmental Protection

Environmental regulations play a critical role in hybrid power systems. Compliance with laws such as the Clean Air Act or RoHS (Restriction of Hazardous Substances) ensures minimal environmental impact. Proper disposal of batteries and electronic waste aligns with these guidelines, reducing ecological harm.

Tip: Partnering with certified installers and suppliers simplifies compliance with both safety and environmental standards.

Benefits of Compliance

Meeting safety and regulatory standards offers several advantages:

• Enhanced System Reliability: Properly installed systems operate efficiently and reduce downtime.

• Legal and Financial Protection: Compliance minimizes the risk of fines or legal disputes.

• Improved Public Trust: Adherence to standards demonstrates a commitment to safety and sustainability.

By prioritizing compliance, operators ensure the long-term success and reliability of outdoor hybrid power supply cabinets.

Applications of Outdoor Hybrid Power Supply Cabinets

Telecommunications and data centers

Outdoor hybrid power supply cabinets play a pivotal role in telecommunications and data centers by ensuring uninterrupted energy supply in critical operations. These cabinets provide a reliable power system that supports the exponential growth of digital data and the increasing demand for rapid deployment. Modular data centers, driven by the rise of cloud services and edge computing, require flexible solutions that can be implemented quickly. Outdoor hybrid power supply cabinets meet these needs by offering resilience and adaptability in challenging environments.

• The demand for modular data centers stems from the need for rapid deployment in industries like telecommunications.

• The rise of edge computing necessitates localized data processing, which outdoor solutions effectively address.

• Outdoor micro data centers are designed to operate in harsh conditions, enhancing service delivery and reliability.

By integrating renewable energy sources and advanced energy storage systems, these cabinets ensure consistent performance. Their ability to adapt to diverse environments makes them indispensable for telecommunications and data center applications.

Surveillance and security systems

Surveillance and security systems rely on outdoor hybrid power supply cabinets to maintain continuous operation, especially in remote or high-risk areas. These systems often operate in locations where traditional power grids are unavailable or unreliable. Hybrid power supply cabinets provide a stable energy source, ensuring that cameras, sensors, and other security equipment function without interruption.

The integration of renewable energy sources, such as solar panels and wind turbines, enhances the sustainability of these systems. Energy storage solutions, like lithium-ion batteries, store surplus energy for use during low generation periods. This ensures that surveillance systems remain operational even during adverse weather conditions or power outages. Additionally, advanced environmental safeguards protect the equipment from harsh conditions, further enhancing reliability.

Renewable energy projects

Outdoor hybrid power supply cabinets are integral to renewable energy projects, offering solutions that enhance efficiency and reliability. These cabinets support applications such as peak shaving, frequency and voltage regulation, and backup power. The table below highlights their benefits:

The integration of advanced features, such as liquid-cooling technology and LFP batteries, further enhances their performance. These systems ensure energy independence by overcoming grid limitations and providing consistent energy supply for mission-critical applications. Safety features, including fire suppression and monitoring systems, ensure safe operation in renewable energy setups. By leveraging these capabilities, outdoor hybrid power supply cabinets contribute significantly to the success of renewable energy projects.

Emergency and disaster recovery setups

Outdoor hybrid power supply cabinets play a vital role in emergency and disaster recovery setups. These systems provide reliable energy solutions during critical situations, ensuring uninterrupted operation of essential equipment. Their ability to integrate renewable energy sources and advanced storage technologies makes them indispensable for disaster response scenarios.

Key Features Supporting Emergency Operations

Hybrid power supply cabinets offer several features that enhance their utility in emergencies:

• Rapid Deployment: Modular designs allow quick installation in disaster-stricken areas.

• Energy Independence: Renewable energy sources reduce reliance on external power grids, which may be compromised during disasters.

• Scalability: Operators can adjust system capacity to meet varying energy demands.

Note: The ability to operate independently of traditional power grids ensures continuous energy supply, even in remote or inaccessible locations.

Applications in Disaster Recovery

These cabinets support various critical applications during disaster recovery efforts:

1. Medical Facilities: Powering mobile hospitals and emergency medical equipment.

2. Communication Systems: Maintaining connectivity for rescue teams and affected communities.

3. Lighting and Surveillance: Providing illumination and security in disaster zones.

Performance Metrics in Emergency Scenarios

Real-World Impact

Hybrid power systems have proven their effectiveness in disaster recovery. For example, during Hurricane Maria, renewable energy-powered systems provided critical support to affected areas. Their ability to operate autonomously and withstand harsh conditions demonstrated their value in emergency scenarios.

By leveraging these capabilities, outdoor hybrid power supply cabinets ensure reliable energy solutions during emergencies, enabling faster recovery and minimizing disruption.

The outdoor hybrid power supply cabinet integrates a robust power system that combines energy generation, storage, and management. Its components, including solar panels, wind turbines, batteries, and control modules, work seamlessly to ensure reliable energy delivery. These cabinets offer unmatched benefits, such as energy efficiency, adaptability, and reduced environmental impact. Proper installation and regular maintenance maximize their performance and longevity. By addressing diverse energy needs, they provide a dependable solution for remote and outdoor applications, ensuring uninterrupted operations in critical scenarios.

FAQ

1. What is the primary purpose of an outdoor hybrid power supply cabinet?

The cabinet ensures a continuous and reliable energy supply by integrating multiple power sources like solar, wind, and grid power. It supports critical applications in remote or harsh environments where traditional power grids are unavailable or unreliable.

2. How does the system prioritize different power sources?

The control module dynamically allocates energy based on availability and demand. For example, solar energy is prioritized during sunny conditions, while wind or grid power takes precedence during low sunlight or high wind speeds. This ensures optimal efficiency.

3. What types of batteries are commonly used in these systems?

Lithium-ion batteries are the most common choice due to their high energy density, long lifespan, and reliability. They efficiently store surplus energy from renewable sources, ensuring power availability during periods of low generation or high demand.

4. What environmental safeguards are included in the cabinet?

Protective enclosures shield components from dust, moisture, and extreme temperatures. Advanced cooling systems regulate internal heat, while humidity control mechanisms prevent condensation. These features ensure reliable operation in diverse and challenging environments.

5. Can the system be scaled for future energy needs?

Yes, the modular design of outdoor hybrid power supply cabinets allows for easy scalability. Operators can add or upgrade components, such as solar panels or batteries, without disrupting existing operations. This adaptability supports evolving energy demands.
