Understanding Rectifier Power Supply in DC Systems

Cyrus

·May 15, 2025

·11 min read

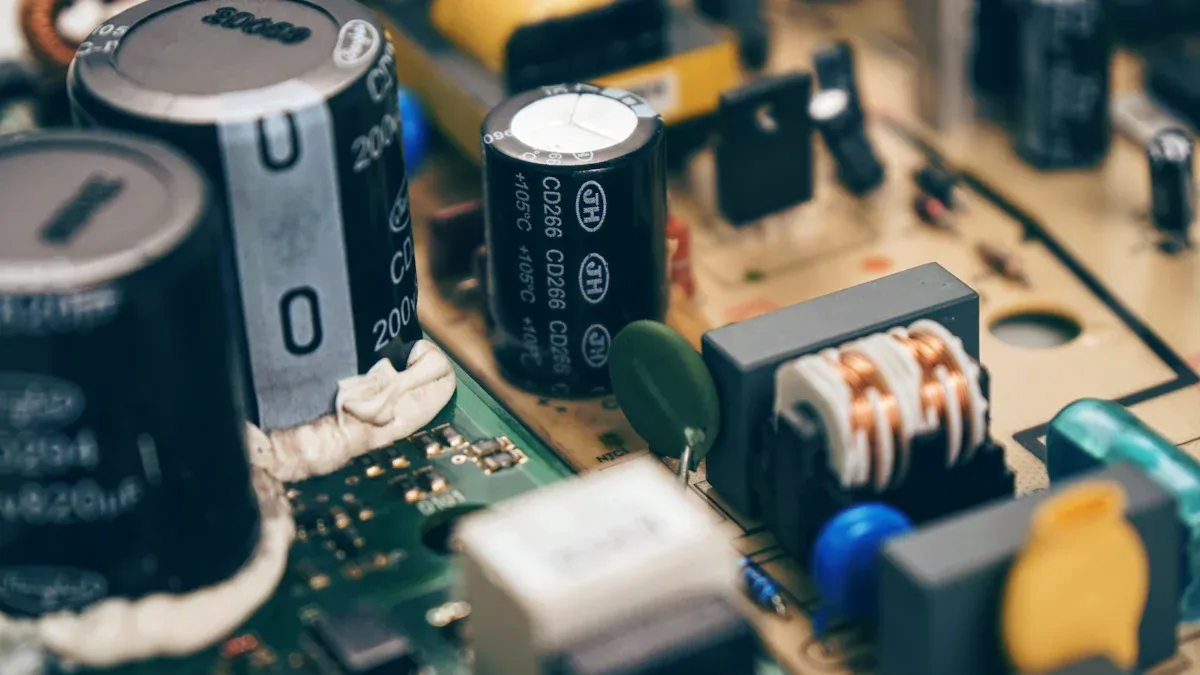

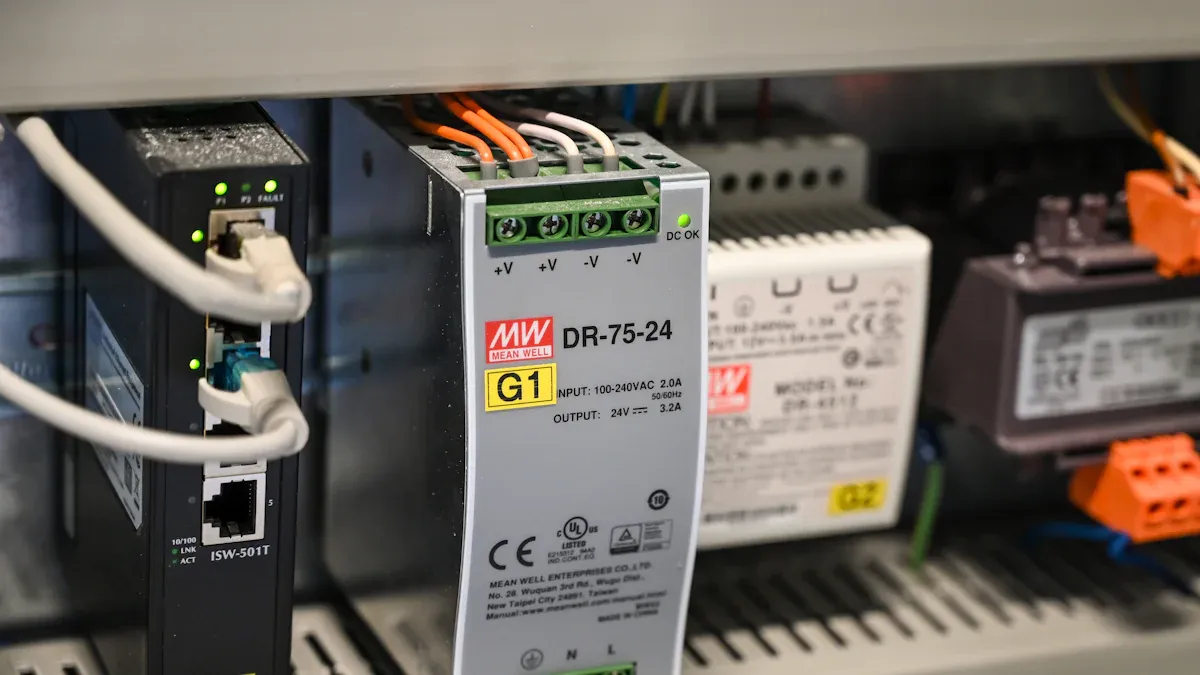

Understanding Rectifier Power Supply in DC Systems — Image Source: pexels

A rectifier is a tool that changes AC into DC. This change, called AC to DC conversion, is very important. It helps power many modern electronic devices. Rectifiers are used in systems needing steady DC power, like chargers, appliances, and machines. They are the main part of a rectifier power supply. They make sure devices get the right voltage to work well. Without rectifiers, many technologies today would not work properly.

Key Takeaways

Rectifiers change AC power into DC power for devices like chargers.
Filters clean the DC power by removing ripples to protect electronics.
Picking a rectifier with good efficiency and low ripples helps devices work better.
Bridge rectifiers work better than half-wave ones, giving steady power to devices.
Regulators keep the voltage steady, making power supplies more reliable.

Components of a DC Power Supply

A DC power supply has parts that work together. These parts change alternating current (AC) into direct current (DC). Each part has a job to make sure the output is steady and safe for devices.

Transformer: Changing Voltage Levels

The transformer is the first part of a DC power supply. It changes the AC voltage to a level the rectifier can use. For example, in factories, it handles high voltages like 480V for machines. In data centers, it manages 208V for servers or 480V for cooling systems. The transformer changes voltage based on its turns ratio, which adjusts how much the input voltage is altered.

Transformers also keep the input and output separate for safety. This protects devices from electrical surges. They also help reduce energy loss when sending power over long distances. This makes them important for delivering power efficiently.

Rectifier: Turning AC into DC

The rectifier is the most important part of the power supply. It uses diodes to change AC into DC. Diodes let current flow in one direction and block the other. This creates a bumpy DC output. Rectifiers can be half-wave, full-wave, or bridge types.

For example, a half-wave rectifier uses one diode. A full-wave rectifier uses two or more diodes to handle both halves of the AC wave. Bridge rectifiers, with four diodes, are the best. They give higher DC voltage and fewer ripples, making them great for modern devices.

Filter: Making DC Smooth

After rectification, the DC still has bumps or ripples. Filters remove these ripples to make the DC smoother. Capacitors in filters store and release energy to fill in the gaps. This gives a steady voltage for your devices.

Filters are very important for protecting electronics. Without them, the uneven voltage could harm devices or shorten their life. By smoothing the output, filters improve how well the DC power supply works.

Regulator: Keeping DC Voltage Steady

The regulator is the last part of a DC power supply. It keeps the output voltage steady, even if the input changes. This makes sure your devices get reliable power to work well and last longer.

Regulators check the output voltage against a reference voltage. If the output changes, they fix it to stay at the right level. This stops voltage swings that could harm delicate electronics. For example, a laptop's regulator keeps power stable to protect its parts from sudden voltage jumps.

There are ways to test how stable a regulator is. Engineers use these methods to design systems that give steady voltage in different situations. Below is a table showing key methods:

Stability Test Method	What It Does	Key Insights
Open-loop Output Impedance	Tests output without powering the loop fully.	Helps check stability with minimal voltage drift.
Closed-loop Output Impedance	Measures the filter and load together.	Gives phase margin data for better stability checks.
Direct Gain-Phase Measurements	Measures phase margin directly, needing extra setup.	Provides strong and repeatable results for stability.

When picking a regulator, think about its efficiency and how it handles input changes. Linear regulators are cheap but waste energy as heat. Switching regulators save energy and work better for high-power needs.

Regulators are key to keeping DC voltage stable. They protect devices and improve how they perform. These hidden helpers make sure electronics run smoothly every day.

How Rectifiers Change AC to DC

Rectifiers are key in turning AC into DC power. This process makes electricity usable for many devices. Diodes are used to control the flow of electricity. They help create a steady DC output. Let’s look at different rectifier types and how they work.

Half-Wave Rectifiers

A half-wave rectifier uses one diode to change AC to DC. The diode lets electricity flow during half of the AC cycle. It blocks the other half, creating a bumpy DC output.

Half-wave rectifiers are simple and cheap but not very efficient. They create a lot of ripples, which can harm sensitive devices. The ripple factor is about 1.21, showing big voltage changes. Also, the average DC voltage is lower than other methods. This makes them less useful for stable power needs.

Key facts about half-wave rectifiers:

They use only half of the AC cycle, lowering efficiency.
Ripple frequency matches the input, causing noticeable bumps.
Average DC voltage is about 0.318 times the peak input voltage.

Despite their limits, half-wave rectifiers work well in basic, low-cost systems.

Full-Wave Rectifiers

Full-wave rectifiers use both halves of the AC cycle. They need two diodes with a center-tapped transformer or four diodes in a bridge setup. This method gives higher DC voltage and fewer ripples.

The ripple frequency is double the input, making the output smoother. The average DC voltage is about 0.637 times the peak input voltage. This is much better than half-wave rectifiers. Full-wave rectifiers are great for devices needing steady and strong DC power.

Benefits of full-wave rectifiers:

They use both halves of the AC cycle, improving efficiency.
They reduce ripples, making the DC output more stable.
They provide higher DC voltage for demanding devices.

You’ll find these rectifiers in high-performance systems like industrial machines and advanced electronics.

Bridge Rectifiers: Compact and Reliable

Bridge rectifiers are a common way to do full-wave rectification. They use four diodes in a bridge shape to turn AC into DC. This design doesn’t need a center-tapped transformer, saving space and cost.

Bridge rectifiers give stable DC power. Capacitors are added to smooth the voltage and reduce ripples. Bigger capacitors make the output even steadier. The size of the capacitor affects how well ripples are reduced.

Here’s a table showing how bridge rectifiers improve DC stability:

Feature	What It Does
Capacitor Filters	Smooth voltage and reduce ripples for stable DC output.
Larger Capacitors	Lower voltage changes, making the DC output smoother.
Ripple Reduction	Bigger capacitors improve ripple control and output quality.

Bridge rectifiers are widely used because they are efficient and reliable. They power sensitive devices, keep voltage steady, and help electronics last longer.

Key Technical Concepts in Rectifiers

RMS, Peak, and Average Values in DC Systems

Knowing RMS, peak, and average values is important for rectifiers. These values help you understand and design circuits better.

RMS (Root Mean Square) Voltage: This shows how strong an AC signal is. It helps compare AC and DC circuits. For example, the heat in a resistor depends on the RMS voltage. This makes it useful for checking circuit performance.
Peak Voltage: This is the highest voltage in one AC cycle. It shows the maximum stress on diodes or other parts in a rectifier.
Average Voltage: This is the average rectifier output over time. It helps understand how well the rectifier works overall.

These values help calculate power and check circuit performance. Many devices use RMS voltage ratings to compare AC and DC systems easily.

Peak Inverse Voltage (PIV) in Rectifiers

PIV is an important idea in rectifier design. It means the highest reverse voltage a diode can handle safely. When AC reverses, the diode blocks reverse current. If the reverse voltage goes over the PIV limit, the diode might break.

For example, in a half-wave rectifier, PIV equals the peak input voltage. In a full-wave rectifier with a center-tapped transformer, PIV is twice the peak input voltage. Knowing PIV helps pick diodes that can handle voltage stress. This keeps your rectifier reliable and long-lasting.

Efficiency and Ripple Factor in Rectifier Power Supply

Efficiency and ripple factor show how well a rectifier works. They measure how good the AC-to-DC conversion is and how smooth the output becomes.

Efficiency: This shows how much DC power comes from AC input. Higher efficiency means less wasted energy. For example, half-wave rectifiers are about 40.6% efficient. Full-wave rectifiers can reach up to 81.2%. Picking high-efficiency rectifiers saves energy and boosts performance.
Ripple Factor: This measures leftover AC in the DC output. Lower ripple factors mean smoother DC power. For instance, half-wave rectifiers have a ripple factor of 1.21. Full-wave rectifiers have a ripple factor of 0.48. Filters can lower ripple factors even more, making devices work better.

By checking these metrics, you can choose the right rectifier for your needs. They also help improve rectifier designs for better results.

Advantages and Disadvantages of Rectifiers

Benefits of Rectifiers in DC Power Systems

Rectifiers change AC into DC, making power usable for devices. They give efficient DC power with less energy loss than AC systems. This helps devices get steady power without wasting electricity.

Small rectifiers can be placed where needed. They remove the need for big DC battery setups. This makes them great for small spaces, like powering one machine or appliance. They are easy to install and cost less to maintain.

Rectifiers help devices work better by giving stable voltage. Diodes and filters make the DC output smooth and safe. This protects electronics from damage caused by voltage changes. Half-wave rectifiers work for simple needs. Full-wave and bridge rectifiers are better for high-efficiency setups.

Challenges and Limitations in Practical Applications

Rectifiers have some problems. Ripple voltage can make DC output uneven. Without filters, ripples can hurt how devices work. Half-wave rectifiers make more ripples, which are bad for sensitive electronics.

Another issue is limited real-world data on rectifiers. This makes it hard to fully check their performance. Engineers often use calculations instead of real tests, which can lead to design problems.

Rectifiers lose some energy during AC-to-DC conversion. Full-wave rectifiers are better than half-wave ones but still waste energy. Diodes in rectifiers also have voltage limits. If the voltage goes too high, diodes can break, lowering reliability.

Extra parts like regulators and filters may be needed for stable voltage. These parts add cost and make the system more complex. You must think about these factors when picking a DC power supply.

Rectifiers are important because they turn AC into DC. This makes electricity useful for your devices. They give steady and reliable power, keeping electronics safe and working better. Without rectifiers, many modern devices would not work well.

Tip: Pick a rectifier with good efficiency and low ripple factor for your device.

Rectifiers power everything from phones to big machines. They provide stable voltage, changing how we use electronics daily.

FAQ

What does a rectifier do in a DC power supply?

A rectifier changes AC into DC. This gives your devices steady and usable power. It is important for running electronics like laptops, chargers, and machines.

How does a filter help the DC output?

A filter removes bumps in the DC output using capacitors. It stores and releases energy to fill gaps. This makes the voltage smooth and protects your devices from harm.

Why is a bridge rectifier better than a half-wave rectifier?

A bridge rectifier uses four diodes to change both AC halves into DC. This makes it more efficient, reduces bumps, and gives higher voltage. It works better for devices needing stable power.

What happens if a diode goes over its Peak Inverse Voltage (PIV)?

If a diode gets more reverse voltage than its PIV, it can break. This can stop the rectifier from working and harm devices. Always pick diodes with the right PIV for your system.

Can a rectifier work without a regulator?

Yes, but the voltage might change with input or load shifts. A regulator keeps the voltage steady. This protects sensitive devices and helps them work better. Without it, power may not stay consistent.

Tip: Use a rectifier with a filter and regulator for the best results and device safety.
