The selection of rectifier module for your power conversion system

Picking the right rectifier module is very important. It helps save energy, prevents system problems, and cuts costs. New technology, like SiC and GaN, makes these modules work better and last longer. Industries like electric cars and green energy use these improvements a lot. Tools like automation and AI make systems even more reliable. They can predict problems and reduce delays. Choosing the right module is key for making systems work well and last a long time.

Key Takeaways

• Picking the right rectifier module saves energy and avoids problems. It also helps lower costs and keeps the system reliable.

• Match the rectifier's voltage and current to your system's needs. This stops overheating and prevents wasting energy.

• Choose modules with high efficiency to save energy. New tech like SiC and GaN can work at over 99% efficiency.

• Keep the module cool to avoid overheating. Good cooling methods help it last longer.

• Make sure the module has safety certifications. This shows it meets quality rules and works well.

Understanding rectifier modules

Definition and function

A rectifier changes alternating current (AC) into direct current (DC). This process, called rectification, is needed for devices that use steady DC power. Rectifier modules use parts like diodes or silicon-controlled rectifiers to do this job well. These modules are found in systems needing reliable power, like factory machines and green energy setups.

Role in power conversion systems

Rectifier modules help deliver smooth and steady power. They adjust voltage and current to fit connected devices. For instance, front-end rectifiers give steady single-output voltages. They also allow features like easy replacement and backup systems. These features are important for wireless networks and energy systems. Picking the right rectifier improves power use, cuts energy waste, and boosts system dependability.

Applications in various industries

Rectifier modules are used in many fields. In data centers, they keep power running with no interruptions. In hospitals, they protect important systems by ensuring constant power. Factories use advanced rectifiers to handle voltage spikes and reduce electrical noise. Rectifiers are also key in electroplating and anodizing, where strong and precise control improves product quality.

Tip: When picking a rectifier module, check its efficiency, strength, and compatibility to match your system’s needs.

Criteria for selecting a rectifier module

Voltage and current requirements

When picking a rectifier module, match its voltage and current to your system. If the module is too small, it can overheat or break. If it's too big, it wastes energy and costs more. For example, single-phase rectifiers handle 0.5 to 3.0 amps. These are good for IT, telecom, and car systems. Three-phase rectifiers handle up to 35 amps or more. They work well for electronics and factories.

Think about whether you need a single-phase or three-phase rectifier. Also, check if it’s low, medium, or high current.

Tip: Always read the rectifier's datasheet to ensure it fits your system's needs.

Efficiency and power loss

Efficiency is very important for a rectifier module. Higher efficiency means less wasted energy and lower costs. New tech like CoolGaN™ and SiC are very efficient. CoolGaN™ can reach over 99% efficiency at half load. This makes it great for high-performance systems.

Check how efficient the rectifier is under different loads. A flat efficiency curve means steady performance. This is useful for systems like telecom networks, where power needs change during the day.

Thermal management

Good thermal management keeps a rectifier module working longer. Heat can harm parts if not controlled. Use cooling methods like vents and airflow to manage heat. In crowded racks, forced-air cooling might be needed.

• Vents and airflow are key for cooling.

• Forced-air cooling helps in tight spaces with poor airflow.

• Check temperatures in different areas to spot hot spots.

Measuring temperatures in your system can find problem areas. Fixing these early stops overheating from causing damage. By managing heat well, you can make your rectifier module last longer and work better.

System compatibility

When picking a rectifier module, make sure it fits your system. If it doesn’t, it might cause problems or even failures. First, check the input and output voltage ranges. These must match your system to avoid power issues. Also, look at the module’s size and connection types. If these don’t fit, installing and maintaining it can be harder.

Think about where your system will be used. For example, if it’s in very hot or wet places, pick a module made for those conditions. Some modules have special coatings or cases to handle tough environments. Lastly, check if the module works with your system’s protocols, like those in telecom or factory setups.

Tip: Always read your system’s manual to know what it needs before buying a rectifier module.

Reliability and durability

A good rectifier module should work well for a long time. Reliable modules reduce downtime and save on repairs. Look for ones with high MTBF ratings. This shows how long they last before breaking. Higher ratings mean fewer problems.

Durability depends on strong materials and design. Good modules handle power surges and voltage changes easily. Industrial modules often have tougher parts for hard conditions. Heat control also matters for durability. Modules with heat sinks or cooling systems last longer.

Note: Spending more on a strong and reliable rectifier module now can save money later by avoiding frequent repairs.

Cost considerations

Cost is important, but it’s not the only thing to think about. Compare prices of modules that meet your needs. Cheaper ones might not be as efficient or long-lasting. Spending more upfront can save money over time.

More people need power electronics now, so better modules are more affordable. Technologies like SiC and GaN are efficient and last longer. They’re great for saving money in the long run. Renewable energy systems also need strong rectifiers. These turn AC from solar panels or wind turbines into steady DC power.

Tip: Think about total costs, like energy savings and repairs, when choosing a rectifier module.

Types of rectifier modules

Diode-based rectifiers

Diode-based rectifiers are simple and very common. They use diodes to change AC power into DC power. These are great for basic tasks without needing advanced controls. You can find them in things like battery chargers and small gadgets.

There are three main kinds of diode-based rectifiers: half-wave, full-wave center-tap, and full-wave bridge. Each type works best for different needs. Half-wave rectifiers use one diode, so they are cheap but less efficient. Full-wave rectifiers, like center-tap or bridge types, use more diodes. This makes them better at giving smooth and efficient DC power.

Tip: If you need better efficiency and smoother power, pick full-wave bridge rectifiers. For cheaper options, half-wave rectifiers work fine.

Thyristor-based rectifiers

Thyristor-based rectifiers are used for high-power jobs. They use thyristors, which handle big currents and voltages. These are common in factories, motor systems, and high-voltage setups.

Thyristor rectifiers give more control over voltage than diode ones. But they are less efficient because of energy loss. They also respond slower to changes in power needs. For example, they can cause harmonic distortion, which might affect sensitive devices.

Note: Thyristor rectifiers are best for systems needing precise voltage control, even if efficiency is lower.

Controlled and uncontrolled rectifiers

Rectifiers can be controlled or uncontrolled. Controlled ones let you adjust voltage and current. These are good for systems needing flexible power. Uncontrolled ones give fixed DC power and are simpler.

Controlled rectifiers often use thyristors or IGBTs to manage power. They are used in motor systems, welding tools, and green energy setups. Uncontrolled rectifiers, usually diode-based, work well for basic tasks like charging batteries.

Tip: Use controlled rectifiers for systems needing precision. For simple tasks, uncontrolled ones are cheaper and easier to use.

Single-phase and three-phase rectifiers

Choosing between single-phase and three-phase rectifiers depends on your system's needs. Single-phase rectifiers are simple and cheaper. They work well for small devices and basic electronics. But their DC output is less stable because of more ripple.

Three-phase rectifiers give smoother and steadier DC power. They have less ripple, which improves voltage quality. These are better for high-power systems like factory machines. Their higher DC output voltage suits demanding setups.

• Advantages of Three-phase Rectifiers:

  • Smoother and steady voltage output.

  • Less ripple for stable DC power.

  • Higher DC output voltage.

  • Better efficiency for big power systems.

For reliable power, pick three-phase rectifiers. For simpler systems, single-phase rectifiers are enough.

Modular and integrated systems

Modular and integrated rectifier systems have different benefits. Modular systems use separate modules you can add or replace. This makes them good for systems needing upgrades or repairs. You can fix or expand without stopping the whole system.

Integrated systems combine parts into one unit. They save space and work well in tight areas. These systems often use advanced designs for better efficiency and reliability.

• Benefits of Modular Systems:

  • Easy to expand for more power.

  • Simple to fix or replace parts.

  • Less downtime during upgrades.

• Advantages of Integrated Systems:

  • Compact for small spaces.

  • High power density and reliability.

  • Efficient with smart designs.

For flexible systems, modular setups are best. For small and efficient systems, integrated ones are ideal.

Evaluating and testing rectifier modules

Reviewing datasheets and specifications

Datasheets are important for checking a rectifier module. They show details about how it works and its features. Look at key specs like voltage range, current capacity, and efficiency. These help you decide if the module fits your system.

Some manufacturers add special features to improve performance. For example, STMicroelectronics makes Schottky diodes with low voltage drop. These are great for fast chargers and electric cars. Diodes Incorporated offers ABS10A bridge rectifiers with glass protection and RoHS compliance. These work well for changing AC to DC power. Vincotech creates compact modules for better cooling and switching.

Tip: Compare datasheets from different brands to find the best option.

Performance testing under load

Testing under load checks if a rectifier module works well in real use. Set up a test that matches the system’s conditions. Change the load to see how it handles different currents and voltages. Watch for stability and efficiency during heavy loads.

Modules like Vincotech’s compact designs perform well under changing loads. They stay steady even when conditions shift. Testing can also show problems like overheating or voltage drops. Fix these issues before using the module.

Note: Use accurate tools to measure voltage and current during tests.

Thermal performance assessment

Managing heat is key to keeping a rectifier module working longer. Check how hot the module gets in different conditions. Use thermal cameras or sensors to find hot spots. Modules with heat sinks or fans handle heat better in tough environments.

For instance, Vincotech’s modules are built for good heat control. This makes them great for demanding tasks. Checking thermal performance helps avoid overheating, which can damage parts and lower efficiency.

Tip: Make sure there’s enough airflow around the module during tests to mimic real conditions.

Compliance with standards

When picking a rectifier module, make sure it follows industry rules. These rules ensure safety, reliability, and system compatibility. Certifications like UL, CE, or ISO show the module is tested for quality. They prove it can handle power loads without overheating or breaking.

Choose modules that meet environmental rules, especially for tough conditions. For example, IP-rated modules block dust and water, making them great for outdoor use. RoHS-compliant modules avoid harmful materials, keeping them eco-friendly.

Tip: Always check the module’s labels or datasheet for certifications. These confirm it meets global safety and quality standards.

Manufacturer and supplier consultation

Talking to manufacturers and suppliers helps you choose wisely. Manufacturers share details about their products, like features and performance. Suppliers can help with pricing, availability, and system compatibility.

Ask manufacturers about their testing methods. Good brands test for durability and efficiency. For example, ask if they check heat control or performance under heavy loads. Suppliers can suggest modules for your industry, like telecom, cars, or green energy.

Make a checklist before talking to them:

• Check the module’s certifications and standards.

• Ask about warranties and customer support.

• Request samples to test in your system.

Note: Working with trusted manufacturers and suppliers gives you better support and access to new technologies.

Picking the right rectifier module is very important. It helps your system work well and saves energy. Matching the module to your system avoids problems and improves performance. High-efficiency modules waste less energy and lower costs. Designs that handle faults make systems more reliable for important tasks.

For instance, small models are easy to maintain and save space. Bigger systems stay cooler and handle faults better. To choose the best module, check its efficiency, strength, and upkeep needs. This ensures your system works well for a long time.

Tip: Buying a good rectifier module now can save money and effort later.

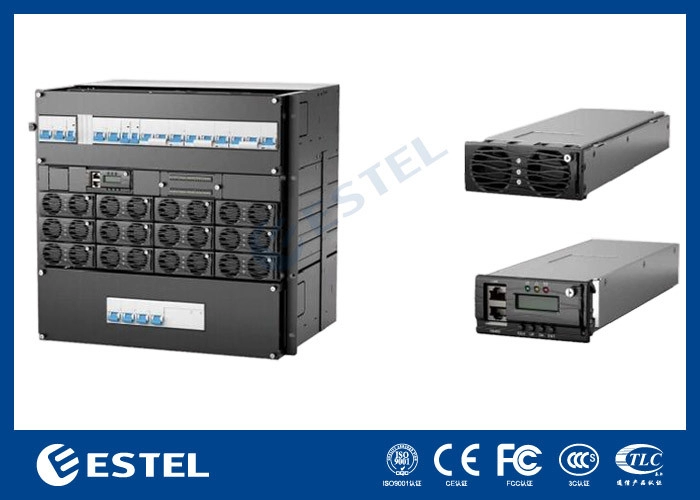

Find a most cost-effective rectifier system:
