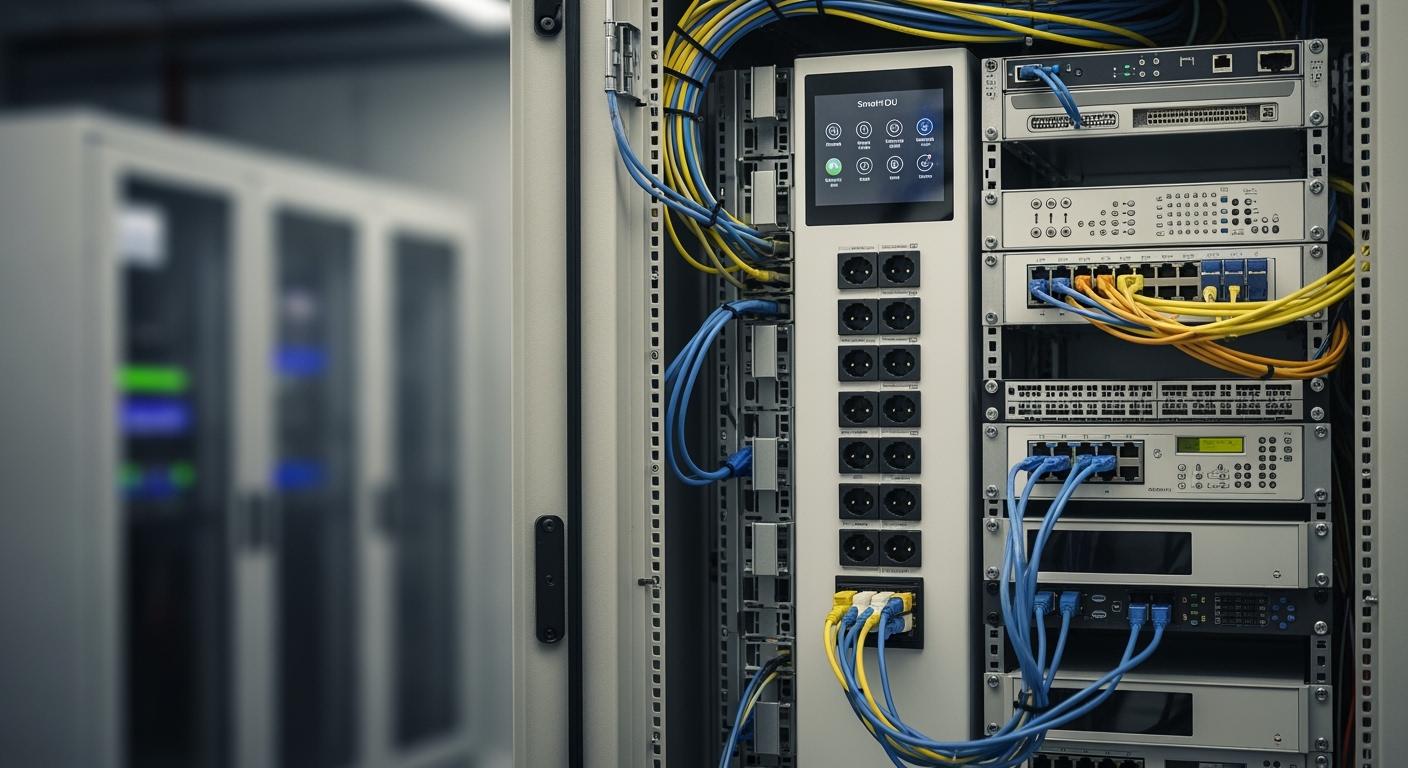

Mixed Socket Configuration of Smart PDUs in Telecom Cabinets: Flexible Layout for New and Old Devices

Sherry

·January 22, 2026

·10 min read

Mixed Socket Configuration of Smart PDUs in Telecom Cabinets: Flexible Layout for New and Old Devices

You face the challenge of powering both advanced equipment and older devices in telecom cabinets. Legacy devices such as routers, switches, base stations, modems, cooling units, and battery backup systems often require different power setups. Telecom infrastructure now demands flexible socket configurations to support high speeds, modular designs, and complex deployments. ESTEL’s Smart Power Distribution Unit gives you an innovative solution for efficient power management and compatibility across diverse equipment.

Key Takeaways

Mixed socket Smart PDUs allow you to connect both new and legacy devices without extra adapters, saving time and reducing errors.
These units offer flexibility in telecom cabinets, enabling upgrades without replacing the entire setup, which keeps your infrastructure organized.
Remote management features let you monitor power usage and environmental conditions from anywhere, helping to prevent downtime and reduce maintenance costs.
Smart PDUs provide surge protection and real-time monitoring, ensuring the safety and reliability of your telecom equipment.
Planning and labeling during installation improves maintenance efficiency, making it easier to manage your power distribution system.

Flexible Layouts with Mixed Socket Smart PDUs

Mixed Socket Configuration Explained

You often find different types of equipment inside telecom cabinets. Some devices use older power plugs, while others need modern connections. Mixed socket configuration means you have a power distribution unit that offers several types of outlets in one device. This setup lets you connect both new and legacy equipment without extra adapters or rewiring. You can easily plug in a variety of devices, which saves time and reduces errors.

A mixed socket layout gives you flexibility. You do not need to replace your entire cabinet when you upgrade or add new equipment. Instead, you can use the same Smart Power Distribution Unit to support all your devices. This approach helps you keep your telecom infrastructure organized and efficient.

Compatibility for New and Legacy Devices

You may worry about powering both old and new devices in the same cabinet. Mixed socket smart PDUs solve this problem. They provide different outlet types, so you can connect legacy routers, switches, and base stations alongside the latest network gear. This compatibility means you do not need to buy separate power strips or make risky modifications.

ESTEL’s Smart Power Distribution Unit supports flexible layouts for diverse equipment. You can choose models with 8 to 19 outlets, each designed for different plug types. The modular design allows you to upgrade or expand as your needs change. You can scale your power distribution without disrupting your operations. The unit also includes surge protection, which shields both old and new devices from voltage spikes.

Tip: Using a Smart Power Distribution Unit with mixed sockets helps you avoid downtime and keeps your network running smoothly during upgrades.

Adaptability in Telecom Cabinets

Telecom cabinets often face changing requirements. You might need to add new devices, monitor environmental conditions, or manage power remotely. Mixed socket smart PDUs adapt to these needs by offering advanced features and real-time control.

Here is a table showing how these features benefit your telecom cabinet:

Feature	Benefit
Real-time monitoring	Continuous monitoring and fast notifications protect your equipment from failures.
Remote management	Remote management capabilities cut down on site visits, saving time and money.
Fast alarm acknowledgment	Fast alarm acknowledgment reduces response times from over 1,800 minutes to under one minute.
Predictive solutions	Predictive solutions help you stay ahead of problems and avoid downtime.
Environmental monitoring	Monitoring of environmental factors detects hazards early, allowing for quick action.
Adaptive power management	Supports reliable, efficient, and safe power supply for telecom cabinets.
Adaptive load balancing	Helps achieve energy efficiency goals by adjusting power distribution based on real-time data.

ESTEL’s Smart Power Distribution Unit stands out with its modular design and scalability. You can upgrade your cabinet as your network grows. The unit distributes power evenly across devices, which prevents overloads and improves safety. You also get outlet-level control and real-time energy monitoring for better efficiency.

Here is a summary of key features that support flexible layouts:

Feature	Description
Modular Design	Allows easy upgrades or expansions as power needs grow.
Scalability	Ensures infrastructure adapts seamlessly to growth without disruption.
Load Balancing	Distributes power evenly across devices to prevent overloads.
Future-Proofing	Supports advanced technologies for long-term adaptability.
Energy Management	Features outlet-level control and real-time energy monitoring for efficiency.
Surge Protection	Shields equipment from voltage spikes and electrical noise.

You can rely on the Smart Power Distribution Unit to keep your telecom cabinet adaptable and ready for future changes. This flexibility helps you meet the demands of modern telecom networks while protecting your investment.

Overcoming Traditional PDU Limitations

Issues with Single-Socket PDUs

You may notice that traditional single-socket PDUs often create more problems than they solve in telecom cabinets. These units usually support only one type of plug, which limits your ability to connect different devices. Over time, this can lead to power quality issues, physical wear, and even equipment failure. The table below highlights some of the most common limitations you might face:

Limitation	Description
Power Quality Issues	Voltage fluctuations and harmonic distortions can cause equipment malfunctions and raise costs.
Physical Wear	Frequent plugging and unplugging can damage sockets and poor cable management leads to wear.
Environmental Factors	Temperature extremes, humidity, and dust can reduce PDU performance and lifespan.
Energy Inefficiency	Suboptimal conditions increase energy use and lower system performance.
Load Imbalances	Uneven power distribution can cause overheating and equipment failure.

Note: Relying on single-socket PDUs can increase maintenance needs and risk unplanned downtime.

Integration Challenges for Old and New Devices

When you try to combine old and new devices in one telecom cabinet, you often run into compatibility and technical hurdles. Older equipment may not match the power requirements or plug types of newer devices. This mismatch can disrupt your operations and make upgrades difficult. The following table outlines the main challenges you might encounter:

Challenge	Description
Compatibility	Ensuring new devices work with existing infrastructure is crucial for seamless operations.
Technical Hurdles	Overcoming significant technical challenges is necessary for effective integration.
Automation	Utilizing automation frameworks helps manage complexity and data overload in multi-vendor environments.

You need a solution that bridges these gaps and supports both legacy and modern equipment.

Solutions with ESTEL Smart Power Distribution Unit

ESTEL’s Smart Power Distribution Unit helps you overcome these traditional limitations. This advanced unit offers features that improve reliability, efficiency, and safety in your telecom cabinets. Here is how it addresses common issues:

Feature	Benefit
Advanced monitoring	Real-time data on power consumption, temperature, and humidity
Remote management	Control and adjust settings from anywhere
Energy efficiency features	Improved operational efficiency and reduced downtime
Surge protection	Protects telecom equipment from power surges
Environmental monitoring	Ensures optimal conditions for equipment

You gain the ability to monitor and manage your power distribution remotely. The Smart Power Distribution Unit also protects your equipment from surges and environmental hazards. With these features, you can support both old and new devices, reduce downtime, and future-proof your telecom infrastructure.

Benefits of Smart Power Distribution Unit in Telecom Cabinets

Cost Savings and Efficiency

You want to reduce costs and improve efficiency in your telecom cabinets. A Smart Power Distribution Unit helps you achieve these goals through several advanced features. Operators who use smart PDUs report a 30% reduction in downtime incidents. Maintenance response times improve by 40%. These improvements lead to fewer site visits, lower energy bills, and less frequent equipment replacement. You see a better return on investment.

Here is a table showing how different features contribute to cost reduction:

Feature	Contribution to Cost Reduction
IP Aggregation	Reduces deployment costs by allowing multiple devices to share a single IP address.
Environmental Monitoring	Prevents equipment damage, eliminating the need for separate monitoring solutions.
Remote Connectivity	Enables remote access, reducing on-site visits and potential downtime.
Functionality	Supports real-time energy management, optimizing usage and supporting capacity changes.

Smart PDUs also help you save on energy. Energy-saving features can lower operational costs by up to 20%. Downtime costs can exceed $100,000 per hour. Smart PDUs help prevent these expensive outages. Superior performance reduces maintenance expenses and extends the lifespan of your IT equipment.

Remote Management and Monitoring

You need to monitor and manage your telecom cabinets efficiently. Smart PDUs give you real-time monitoring of power usage. You can track energy consumption and environmental conditions from anywhere. This remote access allows you to respond quickly to any issues.

Real-time monitoring of power usage keeps you informed.
Predictive maintenance helps you prevent outages before they happen.
Automated alerts notify you of power anomalies.
Energy optimization improves efficiency and reduces waste.

These capabilities prevent service disruptions. You reduce downtime and maintenance costs. You also support sustainability by minimizing site visits. Smart PDUs enable you to streamline operations and maintain high performance.

Here is a table showing how smart PDUs contribute to operational efficiency:

Feature	Contribution to Efficiency
Real-time monitoring	Enables timely adjustments, reducing energy waste
Remote management	Streamlines maintenance and reduces personnel costs
Load balancing	Prevents overloads and maintains safe operating temperatures
Energy efficiency improvements	Achieves energy savings of 30% to 50% in telecom environments

Futureproofing with ESTEL Technology

You want your telecom infrastructure to adapt to future needs. ESTEL technology ensures your power distribution system stays reliable and ready for growth. The Smart Power Distribution Unit offers scalability, so your system can grow with your business. Cloud-native architecture provides high availability and disaster recovery. Advanced analytics use AI to predict trends and optimize operations. Customizable solutions give you flexibility for expanding networks.

Feature	Benefit
Scalability	System grows with your business and adapts to market changes.
Cloud-native architecture	Maintains peak performance with high availability and disaster recovery.
Advanced analytics	Uses AI to predict trends and optimize operations.
Customizable solutions	Meets unique requirements of expanding telecom networks.

ESTEL commits to innovation and reliability. The Smart Power Distribution Unit uses advanced rectifiers and architectures to minimize energy loss. You get a stable power supply, which ensures uninterrupted operation. Real-time tracking of system performance helps you prevent failures and maintain high reliability.

Tip: Choosing ESTEL means you invest in a solution that supports your current needs and prepares you for future challenges.

Implementation Strategies for Mixed Socket PDUs

Planning Power Distribution

You need a clear plan before installing mixed socket PDUs in your telecom cabinet. Start by preparing the cabinet. Remove any debris and unused equipment. Check that the cabinet size matches the PDU specifications. Next, position the PDU securely. Align rackmount PDUs with the rack’s mounting holes for stability. Connect the PDU to the main power source. Make sure the voltage and current ratings fit the PDU’s capacity. Distribute power by connecting your telecom devices to the PDU outlets. Use labeled cables to make maintenance easier. Finally, test the system. Power on the PDU and confirm that every device receives steady power. Watch for overheating or irregularities.

Tip: Labeling cables during installation helps you identify devices quickly during troubleshooting.

Integrating with Existing Systems

You often need to combine new PDUs with existing telecom infrastructure. Begin by reviewing your current power setup. Identify which devices use legacy plugs and which need modern connections. Mixed socket PDUs let you connect both types without extra adapters. You should check compatibility between the PDU and your equipment. Use alternating phase PDUs to simplify wiring and reduce cable resistance. Rack-mounted equipment helps maintain similar current draw across branches. This approach keeps your system balanced and prevents overloads.

Integration Step	Purpose
Review existing setup	Identify legacy and modern devices
Check compatibility	Ensure smooth connection to all devices
Use alternating phase	Simplify wiring and reduce resistance
Rack-mount equipment	Balance current draw and prevent overload

Best Practices for Deployment

You can improve reliability and efficiency by following best practices. Properly balance the three phases to avoid heat buildup and higher cooling costs. Use alternating phase PDUs for easier wiring. Install rack-mounted equipment to keep current draw even. Training resources help you understand PDUs better. You can access factory training, tutorials, and direct support from expert engineers. Remote management features let you monitor and control power from anywhere.

Balance three phases to reduce heat.
Use alternating phase PDUs for simple wiring.
Install rack-mounted equipment for even current draw.
Take advantage of training and tutorials.
Use remote management for monitoring and control.
Contact expert engineers for tailored assistance.

Note: Continuous learning and support ensure you deploy mixed socket PDUs effectively and keep your telecom cabinet running smoothly.

You gain efficient power distribution, remote monitoring, and enhanced reliability with mixed socket smart PDUs in your telecom cabinets. Flexible layouts support both new and legacy devices, letting you scale and customize as your needs change.

Advantage	Description
Efficient Power Distribution	Prevents overloads and ensures optimal performance
Scalability and Flexibility	Adapts to evolving power needs
Surge Protection	Shields sensitive equipment from power fluctuations

Consider these steps for upgrades:

Assess your current setup and plan for growth.
Choose modular PDUs for easy expansion.
Organize and label cables for better maintenance.

You should review your power distribution and prepare for future demands. ESTEL’s expertise and Smart Power Distribution Unit help you build a reliable, future-ready telecom cabinet.

FAQ

What is a mixed socket Smart Power Distribution Unit?

You get a Smart Power Distribution Unit with mixed sockets. It lets you connect different plug types in one cabinet. You power both new and legacy telecom devices without extra adapters.

How does remote management work with ESTEL’s Smart PDU?

You access the Smart PDU from anywhere. You monitor power usage, control outlets, and receive alerts. You use a web interface or app for easy management.

Can I upgrade my cabinet without replacing the PDU?

You keep your existing Smart PDU. You add new devices as needed. The modular design supports upgrades and expansions. You avoid costly replacements.

What safety features does ESTEL’s Smart PDU offer?

You protect your equipment with surge protection. The unit monitors temperature and humidity. You get alerts for abnormal conditions. These features help prevent damage and downtime.
