8 Must-Have Features for Durable Steel Structures Supporting PV Panels

A durable and reliable Steel Structure for PV Panel stands out because it delivers unmatched strength, long service life, and cost efficiency. You protect your investment and ensure safety with a system that resists corrosion and adapts to harsh conditions. Steel outperforms aluminum and wood in load-bearing capacity and reliability, especially for large-scale or challenging environments. Protective coatings can extend service life by over a decade. When you choose steel, you gain a structure that supports sustainability and adapts to different solar projects.

Key Takeaways

• Choose high-quality steel with strong strength and toughness to ensure your PV panel support lasts long and withstands harsh weather.

• Use galvanized coatings and weather protection to prevent rust and extend the life of your steel structure with minimal maintenance.

• Design your steel structure to handle all loads, including the weight of panels, wind, snow, and seismic forces, for safety and reliability.

• Select steel structures that meet industry certifications and comply with local building codes to guarantee quality and legal compliance.

• Pick easy-to-install, flexible steel systems with strong fasteners to save time, reduce errors, and allow future expansion of your solar setup.

1. High-Quality Steel

When you select steel for PV panel support structures, you set the foundation for long-term durability and safety. High-quality steel ensures your solar installation withstands environmental challenges and delivers consistent performance.

Strength

You need steel with superior strength to support the weight of PV panels and resist forces from wind, snow, and seismic activity. Industry standards recommend a minimum yield strength of 50,000 psi (345 MPa) for base support structures, such as those made from A529-50 steel. Structural steel grades like S275 and S355, with yield strengths of 275 MPa and 355 MPa respectively, also meet the demands of solar projects. These grades offer excellent weldability and high load-bearing capacity, making them reliable choices for beams and columns.

Tip: Always check the steel grade and its mechanical properties before making a decision. The right choice protects your investment and ensures compliance with industry standards.

Here’s a quick comparison of common steel grades used in PV support structures:

Toughness

Toughness is just as important as strength. You want steel that can absorb energy and resist cracking or breaking, even in harsh environments. Tough steel maintains its performance under heavy loads, extreme temperatures, and exposure to corrosive elements like saltwater or industrial pollutants.

• Tough steel, such as ESTEL Steel, supports heavy PV panels, snow, and strong winds, maintaining stability over time.

• It resists both physical and chemical degradation, including corrosion from chloride ions in coastal or industrial areas.

• Advanced anti-corrosion treatments and stainless steel frames further enhance resistance, reducing maintenance needs.

• Steel’s toughness ensures reliable performance during extreme weather, extending the lifespan of your PV support structure.

• Corrosion can drastically reduce load capacity, but tough, corrosion-resistant steel mitigates this risk.

• The combination of toughness and corrosion resistance minimizes downtime and supports consistent energy production.

• Steel’s recyclability and cost-effectiveness make it a sustainable choice for demanding environments.

By prioritizing high-quality steel with proven strength and toughness, you ensure your PV panel support structure stands the test of time and delivers maximum value.

2. Corrosion Resistance

Steel structures for PV panels face constant exposure to harsh outdoor conditions. You need robust corrosion resistance to ensure your investment lasts for decades. Corrosion not only weakens steel but also threatens the safety and efficiency of your solar installation.

Galvanized Coating

Galvanized coatings form the first line of defense against rust and environmental damage. You benefit from a zinc layer that shields steel from moisture, oxygen, and pollutants. The zinc acts as a sacrificial barrier, corroding in place of the steel and providing self-healing protection if the surface gets scratched.

Here’s a comparison of the most effective galvanized coatings for PV panel support structures:

You gain long-term durability and minimal maintenance when you choose galvanized steel. The chemical bond between steel and zinc creates a tough, nearly impenetrable barrier. In many cases, galvanized coatings outlast the solar panels themselves.

Weather Protection

Weather conditions can accelerate corrosion and increase maintenance needs. You can extend the lifespan of your steel structure by selecting the right weather protection strategies:

• UV-resistant paints and heat-resistant steel reduce damage from sunlight and temperature swings.

• Marine-grade steel and advanced anti-corrosion coatings lower maintenance in humid or coastal areas.

• Regular inspections help you catch early signs of corrosion or coating wear.

• Pre-storm maintenance, such as tightening fasteners, improves stability.

• Anti-snow coatings with deicing additives reduce snow buildup and related stress.

• Locking fasteners and through bolting prevent loosening from thermal expansion or vibration.

• Advanced weatherproof coatings, like anti-soiling or self-cleaning layers, cut down on cleaning and repairs.

• High-quality steel tested for salt fog and corrosion stands up to harsh climates.

By prioritizing corrosion resistance through advanced coatings and weather protection, you ensure your PV panel support structure remains strong, safe, and efficient for years to come.

3. Structural Design

Load Capacity

You must ensure your steel structure can handle every load it will face throughout its service life. Start by defining your project requirements, including the weight of PV panels and mounting equipment. Dead loads represent the constant weight your structure supports. Live loads include temporary forces such as maintenance personnel or equipment. Environmental loads, like wind and snow, add further demands.

• Perform load-bearing calculations to determine safe support limits.

• Choose steel grades that match your strength and durability needs.

• Design strong connections and joints to maintain structural integrity.

• Use detailed structural fabrication drawings to guide accurate construction.

• Test and validate your design against local building codes and standards.

You should always match the steel mounting system’s load capacity to the weight and size of your PV panels. Collaborate with professionals to identify reinforcement strategies for site-specific demands. Select galvanized steel for general corrosion resistance or stainless steel for harsh environments. Adhering to international standards, such as IEC and UL, guarantees performance and safety over the system’s lifespan.

Tip: Professional structural assessments help verify that your steel mounting system can handle the combined weight of panels and environmental loads.

Environmental Loads

Environmental forces play a critical role in structural design. Wind, snow, and seismic activity can all impact the stability of your PV support system. You need to account for these factors from the start.

1. Calculate wind loads based on local wind conditions and civil engineering standards.

2. Reinforce your structure for snow loads in regions with heavy snowfall.

3. Add extra support in earthquake-prone areas to withstand seismic forces.

4. Consider additional factors like ice, temperature swings, and flooding.

Wind loads are especially important because PV arrays have large surface areas and low weight. Designers often use wind tunnel data and finite element modeling to predict how wind and snow will affect your structure. Snow accumulation and drifting can increase axial forces and bending moments. Combining wind and snow loads requires careful analysis, often using a load combination factor to ensure safety without overbuilding.

By addressing both load capacity and environmental loads, you create a steel structure that stands strong and protects your PV panels in any condition.

4. Steel Structure for PV Panel Standards

When you choose a Steel Structure for PV Panel, you must pay close attention to industry standards. These standards guarantee safety, quality, and long-term performance. Meeting recognized certifications and compliance requirements protects your investment and ensures your installation meets legal and engineering expectations.

Certifications

You should always look for certifications when evaluating a Steel Structure for PV Panel. Certifications show that the product has passed rigorous testing and meets international benchmarks. Here are some key certifications to consider:

• ISO 9001: Confirms that the manufacturer follows strict quality management systems.

• ISO 1461: Ensures hot-dip galvanized coatings meet durability and thickness standards.

• IEC 61215/61730: Verifies that PV modules and their support structures meet global safety and performance criteria.

• UL 2703: Certifies that mounting systems for PV panels meet North American safety standards.

Tip: Ask your supplier for documentation of these certifications. This step helps you avoid substandard products and ensures your project passes inspections.

Compliance

Compliance with local and international standards is not optional. You must verify that your Steel Structure for PV Panel aligns with building codes and engineering guidelines. Compliance ensures your structure can withstand environmental loads and legal scrutiny. It also reduces the risk of costly repairs or legal issues in the future.

• Check that your structure meets local wind, snow, and seismic requirements.

• Review documentation for compliance with standards like ASCE 7 or Eurocode.

• Work with suppliers who provide clear compliance records and technical support.

A compliant structure gives you peace of mind. You know your PV installation will perform reliably and safely for years.

5. Quality Control

Inspection

You must prioritize thorough inspection at every stage of your steel structure’s lifecycle. Start with a visual check of all components before assembly. Look for surface defects, incomplete coatings, or signs of rust. These issues can compromise the integrity of your PV panel support system. Use a checklist to verify that all parts meet the required specifications and dimensions.

• Inspect welds for cracks, porosity, or misalignment.

• Confirm that fasteners and joints fit securely.

• Check for uniformity in galvanized or painted coatings.

Tip: Schedule regular inspections after installation. Early detection of wear or corrosion helps you prevent costly repairs and maintain system reliability.

You should also document each inspection. Keep records of findings and corrective actions. This practice supports warranty claims and ensures compliance with industry standards.

Testing

You need to rely on rigorous testing to guarantee the durability of your steel structures. Tensile testing stands out as a fundamental method for evaluating mechanical properties before deployment. This process measures how much force your steel can withstand before it deforms or breaks. Standards like ASTM E8/E8M guide these tests, focusing on yield strength, ultimate tensile strength, and elongation at break.

During tensile testing, you analyze the stress-strain curve. This analysis reveals the stiffness (Young’s Modulus), the point where permanent deformation begins (yield strength), the maximum load capacity (ultimate tensile strength), and the material’s ductility (elongation at break). High-quality testing equipment ensures accurate results. Inaccurate testing can lead to premature failure of steel components in your PV system.

• Always request test reports from your supplier.

• Review the results for compliance with project requirements.

• Use only steel that passes all mechanical and durability tests.

By combining detailed inspection and standardized testing, you ensure your steel structure delivers long-term safety and performance for your PV panels.

6. Connection Systems

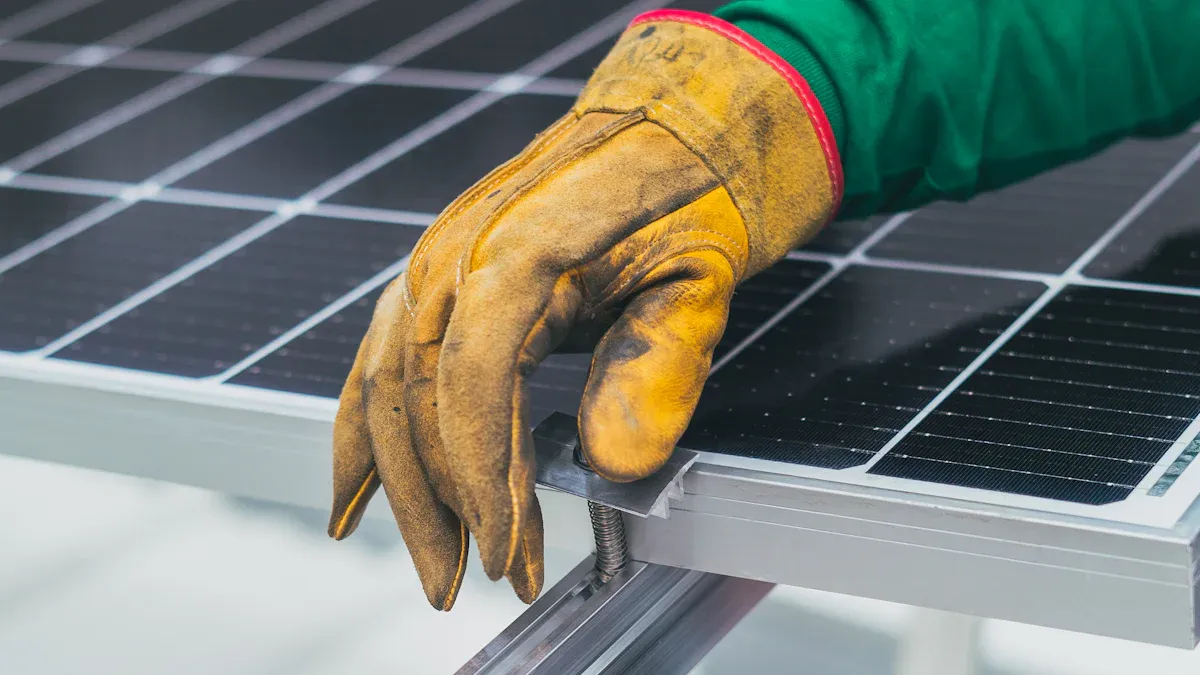

Fasteners

You rely on fasteners to keep your PV panels securely attached to steel structures. The right fastener material and design make a significant difference in long-term performance. Stainless steel fasteners offer high corrosion resistance, making them ideal for outdoor systems exposed to rain, humidity, and temperature swings. Aluminum fasteners provide a lightweight option for rooftop arrays, while carbon steel fasteners (Grade 10.9 HV) suit heavy-duty mounting when properly plated.

You should choose fasteners that comply with standards like DIN 6914 and ISO 898-1. These standards ensure durability and safety. Specialized fasteners, such as Swagebolt Pins & Collars, provide high-speed assembly, vibration resistance, and tamper-proof joints. These features help maintain secure connections even under harsh environmental stresses.

• Consistent clamp force resists loosening from temperature changes.

• Tamper-proof joints deter theft and vandalism.

• Vibration resistance protects against wind and seismic activity.

• Innovative fasteners like lockbolts and break stem rivets offer high tensile and shear strength.

• Proper installation, including correct torque and washers, prevents water ingress and fastener degradation.

By selecting the right fasteners and following best installation practices, you reduce maintenance and extend the lifespan of your PV support system.

Stability

You must ensure your steel structure remains stable under dynamic loads such as wind, snow, and seismic activity. Engineering practices like finite element analysis, wind load simulation, and stability assessments help you model real-world forces accurately. These methods allow you to predict how your structure will respond to sudden gusts or heavy snow.

You can enhance stability by using reinforced modules and dual-glass encapsulation. Lightweight modules reduce stress on the frame, while large-format modules improve airtightness and mechanical strength. For floating PV systems, optimizing module inclination and glass thickness helps balance stability and material use.

Corrosion protection also plays a vital role. Protective coatings like modified epoxy glass scale and graphene–zinc preserve the mechanical stability of steel, especially in marine or high-humidity environments. When you combine robust connection systems with advanced engineering and protective measures, you ensure your PV installation stands strong for decades.

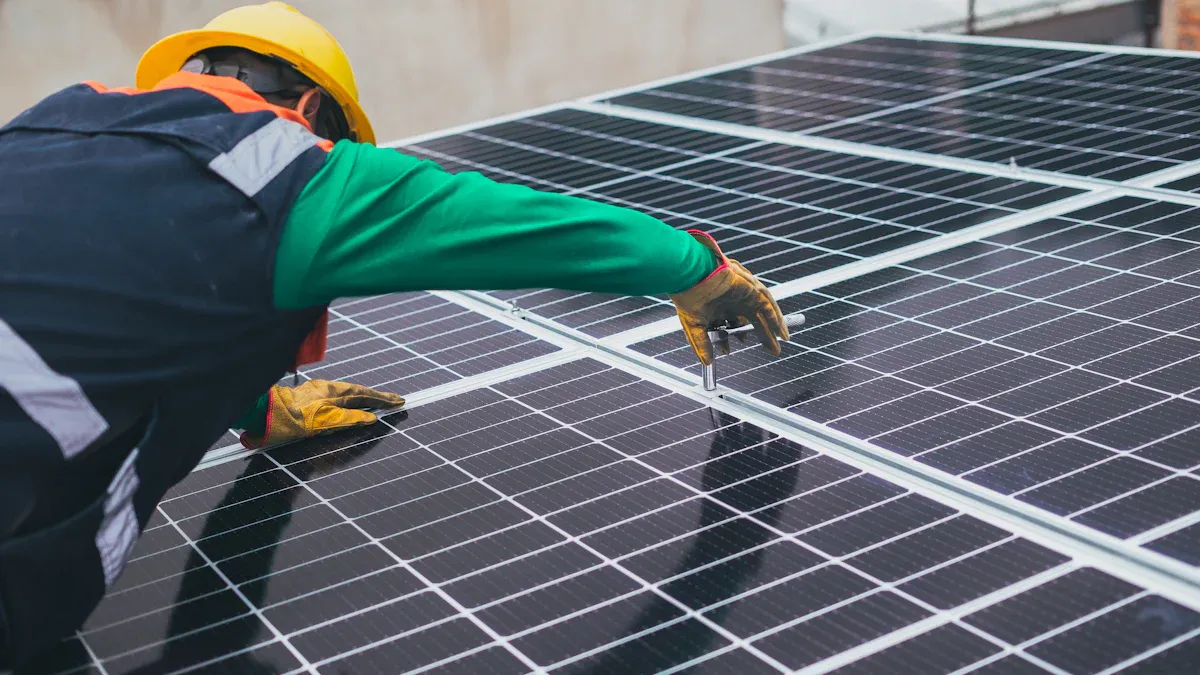

7. Easy Installation

Simplicity

You want a steel structure that makes installation straightforward. Simple assembly reduces confusion and lowers the risk of mistakes. When you use innovative fastening systems, such as snap-together clips, you eliminate the need for time-consuming nuts and bolts. For example, ARaymond’s PowAR Cinch and PowAR Wedge clips allow you to connect parts quickly and securely. These clips do not require extra tools or torque checks. You save time and avoid the hassle of searching for missing hardware.

A simple installation process also means fewer steps for your crew. You can train workers faster and reduce the chance of errors. When you use systems with fewer components, you streamline logistics and minimize the risk of delays. This approach helps you keep your project on schedule and within budget.

Tip: Choose steel structures with pre-assembled parts and intuitive connection methods. You will see fewer installation errors and faster project progress.

Speed

Speed matters in every solar project. You want to finish installation quickly to start generating power and revenue. Modular steel structures, especially rail-less systems, offer impressive installation speeds. Installers can mount each PV module in less than 90 seconds. This rapid pace comes from having about 70% fewer components compared to traditional rail-based systems.

• Rail-less systems deliver labor savings of 35% or more.

• Fewer parts mean less time spent sorting and handling materials.

• Pre-assembled hardware and quick clamp alignment further accelerate the process.

Traditional systems slow you down with complex logistics and more parts to manage. When you choose a modular, easy-to-install structure, you reduce labor intensity and shorten your overall project timeline. You also lower the risk of costly delays and penalties. Fast installation helps you meet deadlines and improve your project’s profitability.

8. Flexibility and Scalability

Adaptability

You need a steel structure that adapts to a wide range of PV panel configurations and site conditions. Flexibility in design lets you meet unique project requirements and respond to changing needs. Cold Formed Steel (CFS) stands out for its lightweight, strong, and corrosion-resistant properties. You can assemble CFS without heavy equipment, which makes it ideal for diverse locations.

• You can use specialized software to engineer CFS for unique roof designs, slopes, and terrains.

• Prefabrication and onsite assembly options give you faster production and allow late-stage customization.

• CFS framing supports tilting panels at any standard slope and mounting on various surfaces, so you can choose the best PV panel layout for your site.

• The material resists rust and high winds, ensuring your structure remains durable under environmental stress.

• CFS helps you meet local building codes and project-specific requirements, giving you confidence in your installation.

Steel building kits offer even more customization. You can select materials, dimensions, and architectural features to match your vision. Precision engineering enables unique geometric shapes and expansive window arrangements, which maximize natural light and make PV panel integration seamless. Custom laser cutting and variable facade depths let you create signature designs while maintaining structural integrity. You can also combine steel panels with glass or concrete to achieve dynamic building envelopes that incorporate PV technology. This level of adaptability ensures your steel structure fits both functional and aesthetic goals.

Tip: Modular steel designs make it easy to align and install PV panels, even if your project has complex architectural requirements.

Expansion

You want your PV system to grow as your energy needs increase. Steel structures with 'solar-ready' reinforced roofs and pre-installed electrical connections make future expansion straightforward. You can add more PV panels without major structural changes or costly retrofits. This approach allows you to scale your solar capacity to meet up to 80% of your building’s energy needs. By planning for expansion from the start, you protect your investment and ensure your solar installation remains relevant as technology and requirements evolve.

Evaluating Steel Structure for PV Panel

On-Site Checks

You need to verify the quality of your Steel Structure for PV Panel directly at the installation site. Effective on-site checks help you catch issues early and ensure long-term reliability. Follow these steps for a thorough evaluation:

1. Inspect incoming materials to confirm they meet required standards before use.

2. Check calibration of equipment to guarantee accurate measurements and assembly.

3. Examine welds and galvanization for consistency and quality, focusing on areas prone to defects.

4. Conduct visual inspections to spot surface flaws or irregularities.

5. Measure dimensions to ensure all components match design specifications.

6. Test galvanization thickness to verify adequate corrosion protection.

7. Use gauges to check material thickness and other physical properties.

8. Review documentation such as design drawings, quality assurance plans, and certifications for compliance.

Tip: Always keep records of inspections and test results. This documentation supports warranty claims and future maintenance.

Supplier Selection

Choosing the right supplier is just as important as on-site checks. Reliable suppliers help you avoid costly problems and ensure your PV system performs as expected. Consider these factors when selecting a supplier:

• Look for a proven track record of reliability and innovation in steel structures.

• Assess the company’s financial stability to ensure they can honor warranties and provide support.

• Check customer reviews and industry ratings to gauge satisfaction and reputation.

• Prefer suppliers trusted by leading manufacturers and those who offer engineered solutions with lifetime warranties.

• Ensure the supplier’s products do not compromise the weather integrity or durability of your installation.

• Confirm that the supplier and installers hold recognized certifications, such as NABCEP, and comply with relevant codes and standards.

• Review documentation, including compliance with local building codes, permits, inspection records, and corrosion resistance test reports.

By following these steps, you can confidently select a Steel Structure for PV Panel that meets safety, durability, and performance requirements.

You secure long-term performance and reliability when you prioritize these eight features for your Steel Structure for PV Panel.

• You maximize ROI by reducing maintenance costs and improving energy output through smart planning and quality materials.

• Sustainability and adaptability protect your investment and support future expansion.

• Industry case studies show that using a checklist approach streamlines installation, lowers costs, and ensures lasting durability.
  Use this checklist to guide your next PV project and achieve the best results.

FAQ

What certifications should you look for in steel structures for PV panels?

You should check for ISO 9001, ISO 1461, UL 2703, and IEC 61215/61730 certifications. These standards confirm quality management, proper galvanization, and safety compliance. Always request documentation from your supplier before making a purchase.

How often should you inspect your steel PV support structure?

You should perform visual inspections at least twice a year. After severe weather events, check for corrosion, loose fasteners, or coating damage. Regular inspections help you catch problems early and extend the lifespan of your system.

Can you expand your PV system later with the same steel structure?

Yes, many steel structures offer modular designs. You can add more PV panels as your energy needs grow. Choose systems labeled as “solar-ready” or “expandable” for the easiest future upgrades.

What is the best way to prevent corrosion in steel PV structures?

Select hot-dip galvanized steel or use advanced coatings like KTL or Geomet. These options provide strong protection against rust and environmental damage. Regular maintenance and inspections also help you maintain corrosion resistance.

Why is structural design important for PV panel safety?

Proper structural design ensures your steel support can handle wind, snow, and seismic loads. You protect your investment and avoid system failures by choosing structures engineered for your site’s specific conditions.
