Steel Structure for PV Panel lifecycle cost (LCC) assessment

Lifecycle cost (LCC) plays a critical role in evaluating the economic viability of solar photovoltaic investments. Stakeholders often face high initial costs, making long-term cost analysis essential for informed decisions. Steel Structure for PV Panel selection directly affects not only upfront expenses but also ongoing costs, including maintenance and safe disposal. Strong durability and low maintenance requirements can extend system life and reduce total ownership costs. Environmental factors, such as solar irradiance and temperature, further influence the LCC by affecting system performance and maintenance frequency. LCC analysis helps investors, developers, and policymakers assess the true competitiveness of solar PV systems.

Key Takeaways

• Steel structures for PV panels cost more upfront but save money over time due to durability and low maintenance.

• Galvanized steel resists corrosion well, reducing repairs and extending the system's lifespan beyond 20 years.

• Choosing the right steel type and design helps handle local weather and soil conditions, improving safety and lowering costs.

• Steel's high recyclability supports sustainability and can recover value at the end of the PV system's life.

• Regular inspections and professional installation ensure steel structures stay strong and reliable, maximizing energy production.

LCC Overview

What Is LCC

Lifecycle cost (LCC) serves as a comprehensive economic evaluation tool for photovoltaic (PV) systems. International and federal guidelines, including those from FEMP and OMB, define LCC as the total cost of ownership over a specified study period. This approach considers every expense associated with the PV system, from acquisition to disposal. Analysts identify all relevant costs, such as initial investment, operation, maintenance, repair, replacement, and residual values. They escalate these costs to the year they occur and then discount them back to present value. This methodology ensures that decision-makers understand the true financial impact of a PV investment, not just the upfront price. By following this standard, organizations can compare different system options on a level playing field and make informed choices that align with long-term financial goals.

Note: LCC analysis provides a more accurate picture of total ownership costs than simple payback or initial cost comparisons.

LCC Components

A thorough LCC assessment for a PV system includes several key components. Each plays a distinct role in shaping the overall financial outcome:

• Initial capital outlay, which covers the purchase and installation of all system components.

• Replacement costs for major parts, such as batteries and inverters, that require periodic renewal during the system’s lifespan.

• Operational and maintenance expenses, which accumulate throughout the system’s service life.

• Residual values at end-of-life, reflecting depreciation or salvage value for components and accessories.

• All system elements, including solar panels, inverters, batteries, mounting structures, controllers, cables, and monitoring equipment.

• Economic factors, such as inflation and real interest rates, which affect the present value of future costs.

• Disposal or reuse costs, ensuring the model captures the full economic impact over the lifecycle.

Traditional models sometimes overlook replacement and maintenance costs for non-core components or rely on simplistic depreciation methods. A robust LCC model addresses these gaps, providing a realistic foundation for investment decisions.

Steel Structure for PV Panel in LCC

Role in System Cost

The choice of structural material significantly shapes the overall cost profile of a photovoltaic system. Steel Structure for PV Panel installations often require a slightly higher initial investment compared to some alternative materials. However, this upfront cost does not tell the whole story. When evaluating the total cost of ownership, steel’s unique properties deliver substantial long-term savings.

The following table compares key features of steel structures with other common materials used in PV mounting systems:

Steel’s high strength-to-weight ratio allows for robust support of PV modules, even in challenging environments. Protective coatings, such as hot-dip galvanizing, enhance corrosion resistance and extend service life. Modular steel designs also streamline installation, reducing labor costs despite the heavier weight of steel. Over a typical 25-year project lifespan, these factors combine to offset the higher initial outlay. Steel’s recyclability further contributes to sustainability and may offer cost recovery at the end of the system’s life.

Tip: Decision-makers should evaluate not just the purchase price but also the long-term savings from reduced maintenance, fewer replacements, and higher reliability when selecting a Steel Structure for PV Panel projects.

Lifespan and Durability

Durability stands as a defining advantage of steel structures in PV applications. Steel Structure for PV Panel systems maintain their integrity under harsh conditions, including heavy snow, strong winds, intense heat, and corrosive coastal environments. This resilience reduces the frequency and cost of repairs or replacements throughout the system’s lifecycle.

• Durable steel frames withstand extreme weather, minimizing downtime and ensuring consistent energy production.

• Advanced anti-corrosion treatments prevent rust and structural degradation, preserving load capacity and preventing failures.

• Extended lifespan and low maintenance requirements lead to significant cost savings over time, despite a higher initial investment.

• Corrosion resistance reduces maintenance expenses by minimizing rust-related damage, which can otherwise reduce structural capacity by over 50%.

• Steel’s recyclability adds sustainability value, supporting cost-effective project outcomes.

• Reliable performance in large-scale installations ensures maximum return on investment by lowering the total cost of ownership.

Steel’s robust performance and minimal maintenance needs make it a preferred choice for long-term PV projects. These qualities help maximize system uptime and energy yield, which are critical for achieving favorable lifecycle cost outcomes.

Material Selection

Steel Types

Steel remains the primary choice for mounting structures in solar installations. Q235B steel stands out as the most widely used type in PV panel structures. This material offers high strength and durability, making it suitable for supporting large and heavy PV arrays. Manufacturers often select Q235B because it balances affordability with robust performance. Steel generally costs less than aluminum alloys, but it requires protective treatments to prevent rust. Hot-dip galvanization, with coatings between 55 and 80 μm, protects steel from corrosion. Thicker coatings become necessary in harsh environments, such as coastal or industrial sites, to ensure long-term reliability.

Steel Structure for PV Panel projects benefit from steel’s superior load-bearing capacity. However, the heavier weight of steel increases installation complexity and labor costs. Despite this, the long service life and low maintenance needs of galvanized steel often result in lower total ownership costs over the system’s lifespan.

Note: Steel’s recyclability rate exceeds 85%, supporting both sustainability and cost recovery at the end of the project.

Alternatives

Project developers sometimes consider alternative materials for PV mounting structures. Aluminum alloys, composites, and plastics each offer unique advantages and drawbacks. The following table summarizes key differences:

Aluminum alloys resist corrosion and weigh less than steel, which reduces transportation and installation expenses. However, their higher initial cost and lower strength can increase the overall lifecycle cost. Composites and plastics may offer specific benefits, but their high price or poor durability often leads to higher replacement rates and greater environmental impact. For most PV projects, steel remains the most cost-effective and sustainable option.

Structural Design

Load and Safety

Steel structures for PV panels must meet strict load and safety requirements to ensure long-term reliability and cost-effectiveness. Engineers select steel types and structural forms based on the expected loads from wind, snow, and seismic activity. High tensile and yield strength steels allow for smaller, lighter sections, which reduces material costs while maintaining safety margins. Toughness and fatigue resistance are essential, especially in regions with frequent wind gusts or temperature fluctuations.

Corrosion protection plays a vital role in extending the lifespan of steel structures. Hot-dip galvanizing and advanced coatings shield steel from harsh environments, such as coastal or industrial sites. These treatments increase initial costs but prevent rust and structural degradation, reducing maintenance and replacement expenses over the system’s life. New-generation steel supports, including cold-formed thin-walled systems and prefabricated monolithic designs, offer enhanced durability and adaptability. These systems balance installation complexity, material quality, and long-term cost savings.

Tip: Regular inspections and preventative maintenance, such as cleaning and corrosion checks, help maintain structural integrity and minimize repair costs.

Site Adaptation

Adapting steel structure designs to specific site conditions ensures both safety and cost efficiency. Engineers analyze soil characteristics, terrain, and local climate before selecting the most suitable mounting system. A thorough geotechnical report, including multiple soil borings, guides foundation design and prevents costly errors.

Designers also consider local weather patterns. PV systems must withstand snow and wind loads throughout their service life. Selecting modules with appropriate load ratings and using higher tilt angles can reduce structural stress and improve snow shedding. These strategies help optimize lifecycle costs by minimizing repairs and maximizing energy production.

Installation and Maintenance

Installation Costs

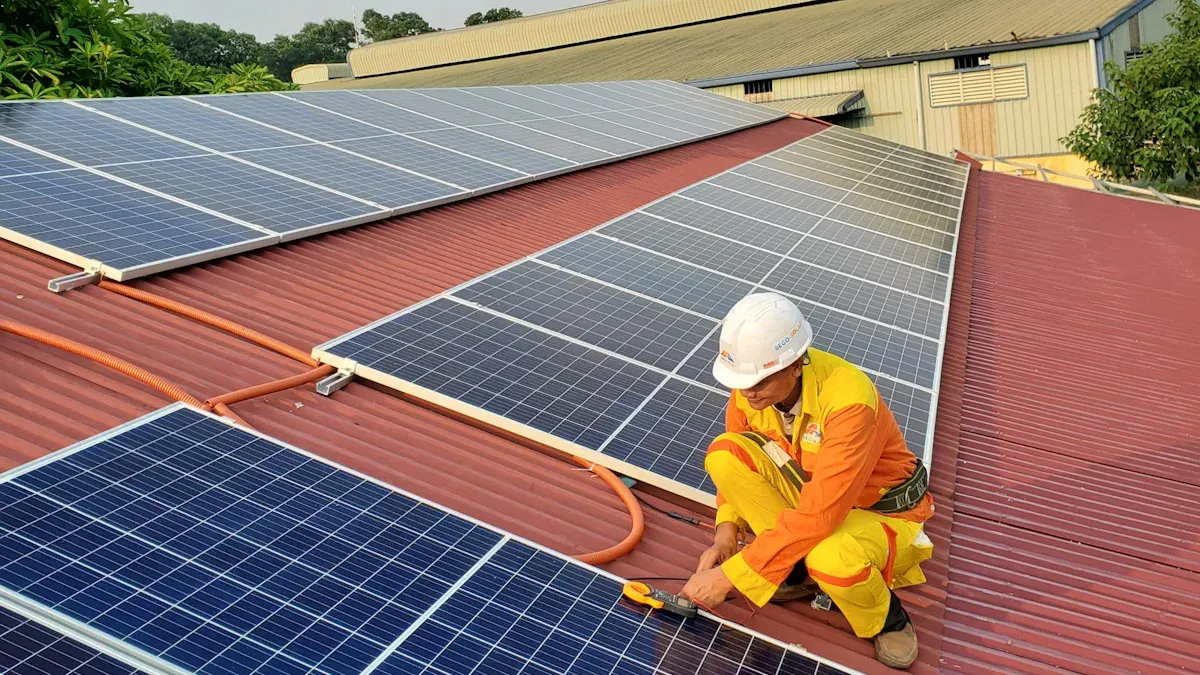

Steel structures play a significant role in the installation costs of PV panel systems. Project teams often encounter higher expenses when using steel, especially for ground-mounted systems. Several factors contribute to these costs:

• Labor for PV panel installation typically ranges from $0.59 to $0.70 per watt. This labor covers tasks such as installing standoffs with flashing, mounting rails, and securing panels.

• Hardware for mounting, including steel frames and fasteners, adds approximately $1.00 per watt.

• Rooftop mounting systems usually cost less. They attach directly to the roof, require fewer components, and involve simpler labor.

• Ground-mounted systems demand more resources. Steel frames must be anchored into the ground using driven piers, helical screws, or concrete footings. These steps increase both labor and material costs.

• Site preparation, trenching for wiring, and additional structural support further raise expenses for ground mounts.

• Ballasted mounts and tracking systems, while less common in residential projects, add complexity and cost.

Steel structures in ground-mounted PV systems often lead to higher installation costs compared to roof-mounted alternatives. However, ground mounts can allow for optimal panel placement, which may improve energy yield and potentially balance overall project costs.

Maintenance Needs

Galvanized steel structures offer clear advantages in maintenance for PV panel systems. Their corrosion resistance and durable zinc coating minimize the need for frequent repairs. Maintenance tasks typically include occasional inspections and cleaning, which help extend the lifespan of steel supports beyond 50 years.

• The zinc coating on galvanized steel self-heals minor scratches, reducing the risk of rust and structural damage.

• Low maintenance requirements translate into fewer repairs or replacements over the system’s life.

• These qualities lower overall lifecycle costs and enhance system reliability.

• The galvanization process also proves more environmentally friendly than frequent repainting or replacing non-galvanized structures.

Although galvanized steel may require a higher initial investment, its long-term savings from reduced maintenance and extended service life make it an economical choice for PV system supports. Reliable performance and minimal upkeep ensure that operational expenditures remain low throughout the project’s duration.

Economic Factors

Discount Rates

Discount rates play a decisive role in lifecycle cost assessments for steel structures in PV panel systems. Investors use discount rates to calculate the present value of future costs and benefits. A low discount rate means future savings and expenses hold more value today. When the discount rate rises, the present value of future cash flows drops sharply. For example, at a 0% discount rate, the initial investment in a PV steel structure can be recovered after 28 years. If the discount rate increases to 8%, the investment may never be recovered. Raising the discount rate from 0% to 15% nearly quadruples the average electricity price needed to break even. This effect makes higher discount rates a major barrier to investment, as they increase the cost threshold for project viability. Project planners must select a realistic discount rate that reflects market conditions, inflation, and risk. This choice directly influences the financial attractiveness of PV projects using steel structures.

Note: Discount rates do not just affect the payback period. They also shape the entire economic outlook for PV investments.

Reliability

Reliability stands as a cornerstone of economic performance in steel structure PV systems. A reliable structure reduces the risk of costly failures and unexpected downtime. Several economic factors influence the lifecycle cost of steel structures:

Channel steel brackets often deliver the lowest overall lifecycle cost. They balance initial, maintenance, and failure costs, making them a practical choice for long-term reliability. By focusing on robust design and corrosion protection, project teams can minimize failure risks and control maintenance expenses. Reliable steel structures ensure stable energy production and protect the investment throughout the PV system’s service life.

Environmental Impact

LCA Integration

Life Cycle Assessment (LCA) provides a systematic approach to evaluating the environmental impact of steel structures in PV panel systems. LCA examines every stage, from raw material extraction to manufacturing, transportation, installation, operation, and final disposal. Engineers and project managers use LCA to identify the most significant sources of emissions and resource consumption.

Steel production requires significant energy, which leads to greenhouse gas emissions. However, modern steel mills have adopted cleaner technologies. Many facilities now use recycled scrap, which reduces the carbon footprint. Protective coatings, such as galvanization, also contribute to environmental impact, but their benefits in extending service life often outweigh their initial footprint.

Note: LCA helps decision-makers compare steel with alternative materials, such as aluminum or composites, by quantifying total environmental costs.

A typical LCA for a steel PV structure considers:

• Energy use during steel production and fabrication

• Emissions from transportation and installation

• Maintenance frequency and resource use

• End-of-life recycling rates

By integrating LCA into project planning, teams can select materials and designs that minimize environmental harm while maintaining structural performance.

End-of-Life

End-of-life management plays a crucial role in the sustainability of steel structures for PV panels. Steel stands out for its high recyclability. Most steel components can be recovered and reprocessed with minimal loss of quality. This process reduces landfill waste and conserves natural resources.

Project teams should plan for decommissioning at the design stage. They can use modular designs and standardized fasteners to simplify disassembly. Recyclers accept galvanized steel, and the zinc coating can be recovered or safely managed.

Key end-of-life considerations include:

• Ease of dismantling and sorting materials

• Local recycling infrastructure availability

• Potential for reuse in new construction projects

Steel’s closed-loop recycling system supports circular economy principles. This approach lowers the overall environmental impact and can provide financial returns at the end of the PV system’s service life.

Case Studies

Steel vs. Alternatives

Project teams often compare steel structures with alternative materials to determine the most cost-effective solution for PV panel mounting. A scenario analysis highlights the differences in lifecycle cost (LCC) between steel and aluminum systems for a 1 MW ground-mounted solar project.

Steel Structure for PV Panel projects show a lower total LCC due to longer lifespan and reduced maintenance. Aluminum systems may offer easier installation, but higher material costs and more frequent replacements increase long-term expenses. Steel’s recyclability also improves end-of-life value, supporting both economic and environmental goals.

Note: Scenario comparisons reveal that steel structures often outperform alternatives in total cost and reliability, especially for large-scale installations.

Real-World Examples

Several real-world PV projects demonstrate the impact of material choice on lifecycle cost. In a 5 MW solar farm in Texas, engineers selected galvanized steel supports. The project team reported minimal maintenance over ten years, with no major corrosion issues despite high humidity. The system maintained over 98% uptime, maximizing energy yield and revenue.

In contrast, a similar project in California used aluminum mounting systems. The team faced higher replacement rates due to structural fatigue and increased maintenance costs from fastener corrosion. Lessons from these cases highlight the importance of robust material selection. Steel Structure for PV Panel installations consistently deliver lower LCC and greater reliability, especially in challenging environments.

Recommendations

Selection Tips

Selecting the right steel structure for PV panel projects requires careful consideration of several critical factors. Project teams should focus on both immediate needs and long-term performance. The following tips help ensure a reliable and cost-effective installation:

• Match the load capacity of the steel structure to the weight of the PV panels and account for environmental loads such as wind and snow. This approach prevents structural damage and reduces the risk of costly repairs.

• Prioritize material durability and corrosion resistance. Galvanized steel works well in moderate climates, while stainless steel offers superior protection in coastal or extreme environments.

• Balance the initial budget with anticipated maintenance costs. Investing in higher quality materials and professional installation often leads to lower repair expenses over the system’s lifespan.

• Ensure compliance with local building codes and regulations. Adhering to these standards enhances safety, avoids legal complications, and improves system reliability.

• Engage experienced installers. Professional installation guarantees proper assembly, adherence to safety standards, and optimal system performance.

• Conduct regular maintenance. Inspections for damage, corrosion, and structural stability help extend the lifespan of the steel structure and maintain energy efficiency.

• Consider site-specific factors such as location, geography, soil type, and environmental impact. These elements influence the choice of mounting structure and overall project success.

Tip: Assess the project site thoroughly before selecting a Steel Structure for PV Panel system. A well-matched structure reduces maintenance needs and maximizes energy production.

Cost Optimization

Optimizing lifecycle cost in PV panel projects involves strategic planning and informed decision-making. Teams can achieve significant savings by focusing on the following areas:

• Assess the project location and geography, including slope and soil type, to determine the most suitable mounting structure. Proper site assessment prevents unnecessary foundation work and reduces installation costs.

• Design structures to withstand local wind and snow loads. This design choice minimizes the risk of damage and avoids expensive repairs.

• Optimize the size, angle, and orientation of solar panels based on site exposure. Maximizing energy production improves the return on investment.

• Evaluate the budget by considering long-term savings from durable, high-quality mounting frameworks. While initial costs may be higher, reduced maintenance and longer lifespan lower the total cost of ownership.

• Choose environmentally sustainable materials and designs. Selecting recyclable materials supports sustainability goals and can provide financial returns at the end of the system’s life.

Project teams that follow these strategies can control costs, enhance reliability, and achieve better financial and environmental outcomes for their PV installations.

Steel structures significantly influence the lifecycle cost of PV panel systems by providing durability, reliability, and sustainability. Decision-makers should weigh both economic and environmental factors when selecting materials and designs. Recent innovations in modular, corrosion-resistant steel structures have improved installation efficiency and reduced long-term maintenance. To optimize LCC in PV projects, teams can take the following steps:

1. Apply energy-conscious building design strategies. 2. Select the appropriate PV system type for project needs. 3. Choose installation locations with optimal attachment to steel sub-structures. 4. Analyze and manage building electrical loads. 5. Ensure proper ventilation behind PV modules. 6. Use semi-transparent modules to reduce cooling loads. 7. Integrate PV modules as shading elements. 8. Design arrays for local climate and environmental conditions. 9. Maximize solar exposure and minimize shading. 10. Optimize array orientation and tilt. 11. Engage credentialed professionals for all project phases.

Ongoing evaluation of new technologies and materials will help project teams achieve lower costs and greater sustainability as the solar industry evolves.

FAQ

What factors most affect the lifecycle cost of steel structures in PV systems?

Material quality, corrosion protection, installation methods, and maintenance frequency have the greatest impact. Environmental conditions, such as humidity and wind, also play a significant role in determining long-term costs.

How does steel compare to aluminum for PV panel mounting?

Steel offers higher strength and durability. Aluminum weighs less and resists corrosion naturally. Steel usually provides a lower lifecycle cost due to its longer lifespan and recyclability, especially in large-scale projects.

Can steel structures be recycled at the end of a PV system’s life?

Yes. Most steel used in PV structures can be recycled with minimal loss of quality. Recycling steel reduces environmental impact and may provide financial returns at project decommissioning.

What maintenance do steel PV structures require?

Galvanized steel structures need periodic inspections for corrosion and structural integrity. Cleaning and minor repairs help extend service life. Regular maintenance ensures reliable performance and reduces unexpected costs.
