ESTEL Telecom Cabinet air conditioning selection calculation formula

Effective cooling is essential for maintaining the performance and longevity of telecom cabinets. Accurate cooling capacity calculations prevent overheating, which can lead to equipment failure. Consider these statistics:

1. By 2020, data center power consumption in China surpassed 200 billion kW∙h, representing 2.7% of total power usage.

2. This is projected to reach 350 billion kW∙h by 2025.

3. Air conditioning systems account for 40% of this energy, underscoring the need for precise cooling solutions.

ESTEL's telecom cabinets ensure reliability and energy efficiency. Customers report long-term satisfaction, highlighting the quality and durability of their cooling systems.

Key Takeaways

• Proper cooling calculations stop telecom cabinets from overheating and protect equipment.

• The cooling formula uses internal heat, external heat, and a safety margin for surprises.

• Internal heat is found by checking how much power devices use over time.

• External heat depends on things like outside temperature and sunlight affecting the cabinet.

• Adding a safety margin of 1.2 makes cooling systems more dependable for extra heat.

• Checking and fixing cooling systems often keeps them working well and saves energy.

• ESTEL air conditioners give strong cooling with features made for telecom needs, keeping equipment safe.

• Using energy-saving cooling systems lowers costs and helps the environment.

The Formula for Telecom Cabinet Cooling

Overview of the Cooling Calculation Formula

Selecting the right cooling solution for a telecom cabinet requires a precise calculation formula. This formula considers multiple factors, including internal and external heat loads, as well as a safety margin to account for unexpected conditions. By using this approach, you can ensure that your telecom cabinet operates efficiently and reliably, even in challenging environments.

The cooling formula is based on proven techniques like forced air circulation and thermal conduction. For example, the Geopole™ cooling method uses a sealed hollow pole to circulate air, providing direct contact cooling for sensitive components. This technique reduces enclosure weight and simplifies maintenance, making it ideal for outdoor telecom cabinets.

Components of the Formula

The cooling calculation formula consists of three main components:

Internal Heat Load (Q i)

Internal heat load refers to the heat generated by the equipment housed within the telecom cabinet. Devices like servers, networking equipment, and power supplies contribute to this load. Calculating this component involves measuring the active power dissipation of each device, which is determined by multiplying voltage and current.

External Heat Load (Q r)

External heat load accounts for environmental factors that affect the cabinet's temperature. These include ambient temperature, sunlight exposure, and the cabinet's insulation properties. For instance, a cabinet with a reflective metal finish will absorb less solar heat compared to one with a darker exterior.

Safety Factor (1.2 Multiplier)

The safety factor ensures that the cooling system can handle unexpected heat loads or variations in environmental conditions. By multiplying the total heat load by 1.2, you add a buffer that enhances the system's reliability and longevity.

Why the Formula is Essential for Telecom Cabinets

Accurate cooling calculations are critical for maintaining the operational reliability of telecom cabinets. Unattended base stations, for example, require intelligent cooling systems to manage the continuous heat generated by their equipment. Without proper cooling, high-density cabinet loads may exceed the capacity of traditional cooling systems, leading to equipment failure.

Incorporating metrics like the RCI (Return Cooling Index) into the design process can improve cooling efficiency and reduce energy costs. The RCI provides a standardized way to evaluate thermal environments, ensuring that your cooling solution meets industry standards.

Tip: Use materials with high thermal conductivity for cabinet enclosures to enhance heat dissipation and protect sensitive components.

Calculating Internal Heat Load (Q i)

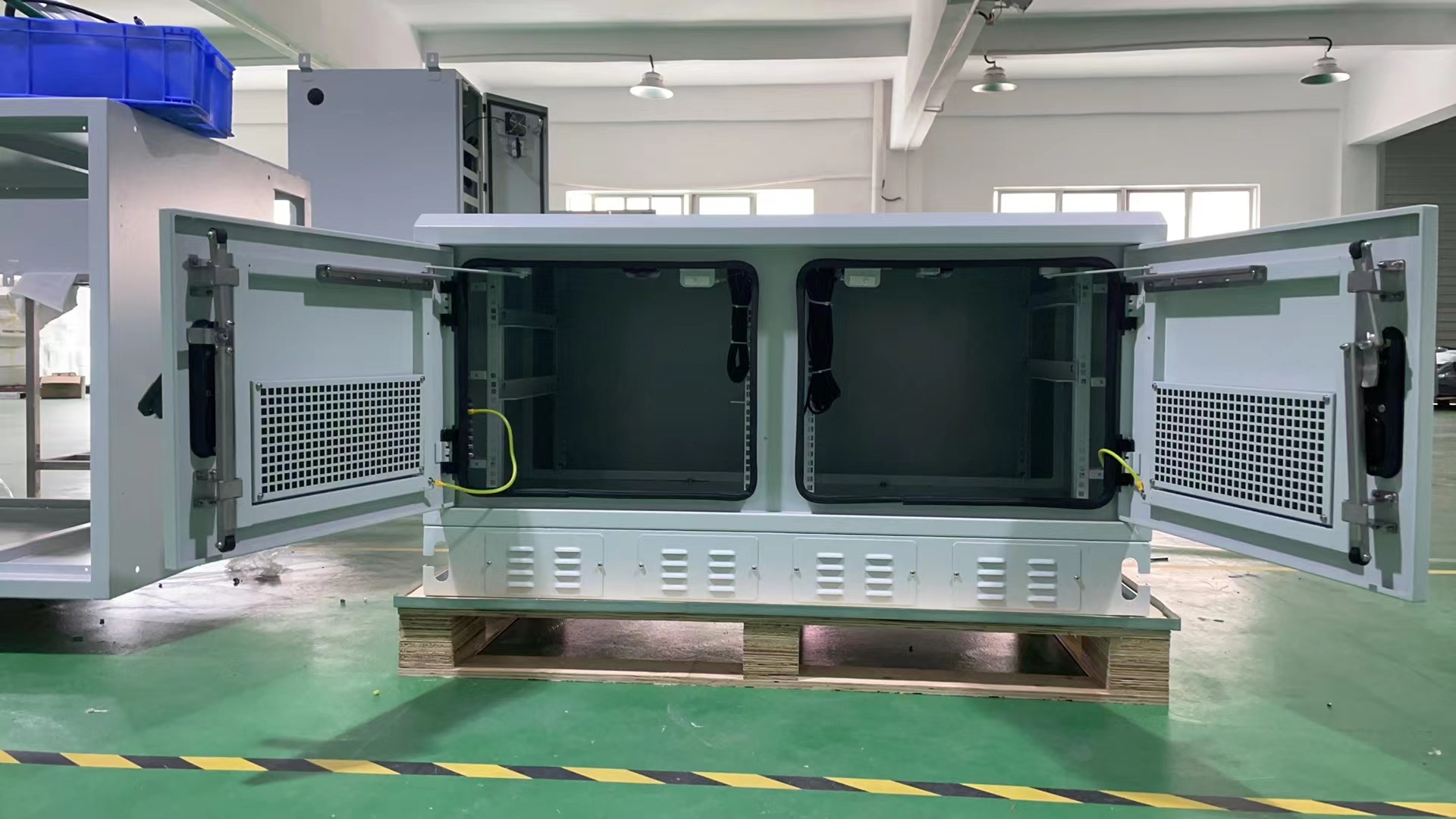

Identifying Heat-Generating Equipment

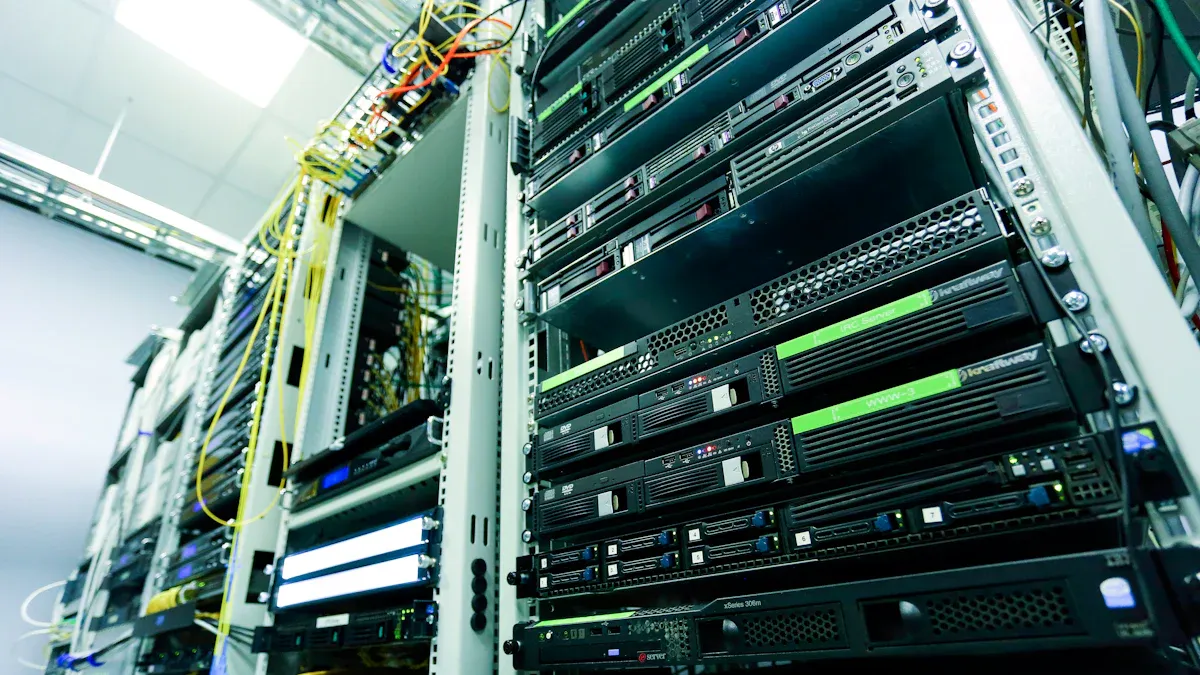

Servers and Networking Devices

Servers and networking devices are among the primary sources of heat within a telecom cabinet. These components operate continuously, processing data and managing network traffic, which generates significant heat. Without proper cooling, the heat produced can compromise their functionality and lead to equipment failure. Advanced cooling solutions, such as fans and heat sinks, are often integrated into telecom cabinets to manage this heat effectively. Intelligent cooling technologies can also adjust based on internal temperatures, optimizing energy consumption while maintaining stable conditions.

Power Supplies and Batteries

Power supplies and batteries also contribute to the internal heat load. Batteries, especially during charging and discharging cycles, release heat that can accumulate within the cabinet. Similarly, power supplies convert electrical energy, a process that inherently generates heat. To prevent overheating, many telecom cabinets incorporate vents or fans to circulate air and stabilize internal temperatures. In high ambient temperature areas, advanced systems like heat exchangers or air conditioning units are essential for managing these heat-generating components.

Formula for Internal Heat Load

The internal heat load (Q i) can be calculated using the formula:

Q i = Σ (P x t)

Where:

• P represents the power consumption of each device (in watts).

• t is the time the device operates (in hours).

This formula accounts for the total heat generated by all equipment within the cabinet. For accurate results, you must measure the active power dissipation of each device. Studies on passive heat transfer in enclosures highlight the importance of optimizing heat dissipation methods, such as using fins or advanced cooling technologies, to manage internal heat effectively.

Example Calculation of Internal Heat Load

Consider a telecom cabinet housing the following equipment:

• A server consuming 500 watts, operating 24 hours a day.

• A router consuming 200 watts, operating 24 hours a day.

• A power supply consuming 100 watts, operating 24 hours a day.

Using the formula:

Q i = Σ (P x t)
Q i = (500 x 24) + (200 x 24) + (100 x 24)
Q i = 12,000 + 4,800 + 2,400
Q i = 19,200 watt-hours (or 19.2 kWh)

This calculation shows that the internal heat load for this cabinet is 19.2 kWh per day. To ensure optimal performance, you must select a cooling system capable of dissipating this heat effectively. Research on thermal environments in telecom cabinets emphasizes the importance of maintaining optimal intake temperatures to prevent overheating and service interruptions.

Tip: Use computational fluid dynamics (CFD) modeling to validate your heat load calculations and ensure the cooling system meets the cabinet's requirements.

Calculating External Heat Load (Q r)

Factors Influencing External Heat Load

Cabinet Material and Insulation

The material and insulation of a telecom cabinet play a critical role in determining its external heat load. Cabinets made from reflective materials, such as aluminum or stainless steel, absorb less solar radiation compared to darker or non-reflective finishes. Insulation further enhances thermal resistance by reducing heat transfer between the cabinet's interior and the external environment. Common insulation materials include foam, glass wool, and rubber, each offering varying levels of thermal efficiency. Selecting the right combination of material and insulation ensures better temperature regulation and minimizes energy consumption.

Ambient Temperature

The surrounding air temperature significantly impacts the external heat load. High ambient temperatures increase the thermal gradient between the cabinet's interior and exterior, leading to greater heat transfer. This effect is particularly pronounced in regions with extreme climates, where outdoor temperatures can exceed the cabinet's internal design limits. Accurate measurements of local ambient conditions are essential for calculating the heat load and selecting an appropriate cooling solution.

Sunlight Exposure

Direct sunlight exposure is a major contributor to external heat load. Solar radiation heats the cabinet's surface, causing a rise in internal temperatures. Factors such as the cabinet's orientation, shading, and surface finish influence the amount of solar heat absorbed. For instance, a cabinet placed in a shaded area or equipped with a reflective coating will experience lower heat gain compared to one exposed to direct sunlight. Incorporating these considerations into your calculations ensures a more accurate assessment of the external heat load.

Formula for External Heat Load

The external heat load (Q r) can be calculated using the following formula:

Q r = (U x A x ΔT) + (SHG x A)

Where:

• U represents the overall heat transfer coefficient of the cabinet material (W/m²·K).

• A is the surface area of the cabinet (m²).

• ΔT is the temperature difference between the interior and exterior (K).

• SHG is the solar heat gain coefficient, which accounts for the amount of solar radiation absorbed by the cabinet's surface.

This formula combines the effects of conductive heat transfer and solar radiation to provide a comprehensive estimate of the external heat load. Methods outlined in the 2005 ASHRAE Handbook--Fundamentals or commercial software adhering to ASHRAE standards can be used to perform these calculations. These tools ensure that your results account for heat buildup when internal design temperatures exceed outdoor conditions.

Example Calculation of External Heat Load

Consider a telecom cabinet with the following specifications:

• Surface area (A): 5 m²

• Overall heat transfer coefficient (U): 0.8 W/m²·K

• Temperature difference (ΔT): 15 K

• Solar heat gain coefficient (SHG): 200 W/m²

Using the formula:

Q r = (U x A x ΔT) + (SHG x A)
Q r = (0.8 x 5 x 15) + (200 x 5)
Q r = 60 + 1,000
Q r = 1,060 W

This calculation shows that the external heat load for this cabinet is 1,060 watts. By incorporating factors such as material properties, ambient conditions, and solar exposure, you can ensure that your cooling system effectively manages the external heat load. Studies on thermal modeling and energy consumption emphasize the importance of optimizing thermal architecture to enhance efficiency and reduce energy costs.

Tip: Use shading structures or reflective coatings to minimize solar heat gain and improve the cabinet's thermal performance.

Applying the Safety Factor

Importance of the 1.2 Multiplier

The 1.2 multiplier plays a crucial role in ensuring the reliability of your cooling system. It acts as a safety buffer, accounting for unexpected heat loads or variations in environmental conditions. When you calculate the total heat load for your telecom cabinet, this multiplier ensures that the cooling system can handle more than just the expected heat. This extra capacity prevents the system from operating at its maximum limit, which could lead to wear and tear over time.

By applying the 1.2 multiplier, you prepare your cooling system for scenarios like sudden spikes in ambient temperature or additional equipment being added to the cabinet. This proactive approach minimizes the risk of overheating and extends the lifespan of your equipment. It also ensures that your telecom cabinet operates efficiently, even under challenging conditions.

Adjusting for Unexpected Heat Loads

Unexpected heat loads can arise from various factors, such as equipment upgrades, increased data traffic, or environmental changes. Without a safety factor, your cooling system might struggle to manage these additional loads, leading to performance issues or equipment failure. The 1.2 multiplier provides a cushion that allows your system to adapt to these changes without compromising its efficiency.

For example, if you add a new server to your telecom cabinet, the internal heat load will increase. The safety factor ensures that your cooling system can handle this additional heat without requiring immediate upgrades. This flexibility is essential for maintaining uninterrupted operations and avoiding costly downtime.

Tip: Regularly review your equipment and environmental conditions to ensure that your cooling system remains adequate for your needs.

Ensuring Long-Term Reliability

Long-term reliability is a critical consideration for any cooling system. Over time, factors like wear and tear, dust accumulation, and changing environmental conditions can affect the performance of your cooling system. The 1.2 multiplier helps mitigate these risks by providing extra capacity that compensates for gradual efficiency losses.

By incorporating this safety factor into your calculations, you ensure that your telecom cabinet remains protected against overheating, even as your cooling system ages. This approach not only enhances the durability of your equipment but also reduces maintenance costs and improves energy efficiency. A reliable cooling system is an investment in the long-term performance and stability of your telecom infrastructure.

Note: Always choose a cooling system that aligns with your calculated heat load, including the safety factor, to ensure optimal performance.

Step-by-Step Example Calculation

Defining the Scenario

Imagine you are tasked with cooling a telecom cabinet located outdoors in a region with high ambient temperatures and direct sunlight exposure. The cabinet houses several heat-generating components, including servers, power supplies, and batteries. The cabinet is constructed from steel, with a surface area of 10.4 m², and operates in an environment where the temperature difference between the interior and exterior is 15 K. Additionally, the cabinet is exposed to solar radiation, contributing to the external heat load.

To ensure the cabinet operates efficiently, you need to calculate the total heat load, which includes both internal and external heat contributions. This calculation will help you determine the required cooling capacity to maintain optimal operating conditions and prevent equipment failure.

Applying the Formula to Calculate Total Heat Load

To calculate the total heat load, you combine the internal heat load (Q i) and the external heat load (Q r). Using the formulas provided earlier:

1. Internal Heat Load (Q i):

   Q i = Σ (P x t)


   For this scenario, assume the cabinet contains the following equipment:

   • A server consuming 500 W, operating 24 hours a day.

   • A router consuming 200 W, operating 24 hours a day.

   • A power supply consuming 100 W, operating 24 hours a day.

   Calculation:

   Q i = (500 x 24) + (200 x 24) + (100 x 24)
   Q i = 12,000 + 4,800 + 2,400
   Q i = 19,200 watt-hours (or 19.2 kWh)


2. External Heat Load (Q r):

   Q r = (U x A x ΔT) + (SHG x A)


   For a steel cabinet with a heat transfer coefficient (U) of 5.5 W/m²·K, a surface area (A) of 10.4 m², a temperature difference (ΔT) of 15 K, and a solar heat gain coefficient (SHG) of 200 W/m²:

   Q r = (5.5 x 10.4 x 15) + (200 x 10.4)
   Q r = 858 + 2,080
   Q r = 2,938 W


3. Total Heat Load (Q total):
   Add the internal and external heat loads:

   Q total = Q i + Q r
   Q total = 19,200 + 2,938
   Q total = 22,138 watt-hours (or 22.14 kWh)


This calculation demonstrates the combined impact of internal and external factors on the total heat load. The empirical data below highlights typical heat outputs for various components, which you can use to refine your calculations:

Determining the Required Cooling Capacity

Once you have calculated the total heat load, you must determine the required cooling capacity. To ensure reliability, apply the safety factor of 1.2 to account for unexpected heat loads or environmental changes. Multiply the total heat load by 1.2:

Required Cooling Capacity = Q total x 1.2
Required Cooling Capacity = 22,138 x 1.2
Required Cooling Capacity = 26,565.6 watt-hours (or 26.57 kWh)

This calculation indicates that the cooling system must have a capacity of at least 26.57 kWh to maintain optimal conditions. When selecting a cooling solution, consider the following benchmarks:

• Maintain an internal temperature below 95 °F to ensure equipment longevity.

• Choose a system with high energy efficiency to reduce power consumption during outages.

• Evaluate whether an open-loop or closed-loop cooling system best suits your needs.

By following these steps, you can confidently select a cooling system that meets the specific requirements of your telecom cabinet. This ensures reliable operation, minimizes energy costs, and extends the lifespan of your equipment.

Tip: Regularly monitor the cabinet's thermal performance to identify potential issues early and maintain optimal cooling efficiency.

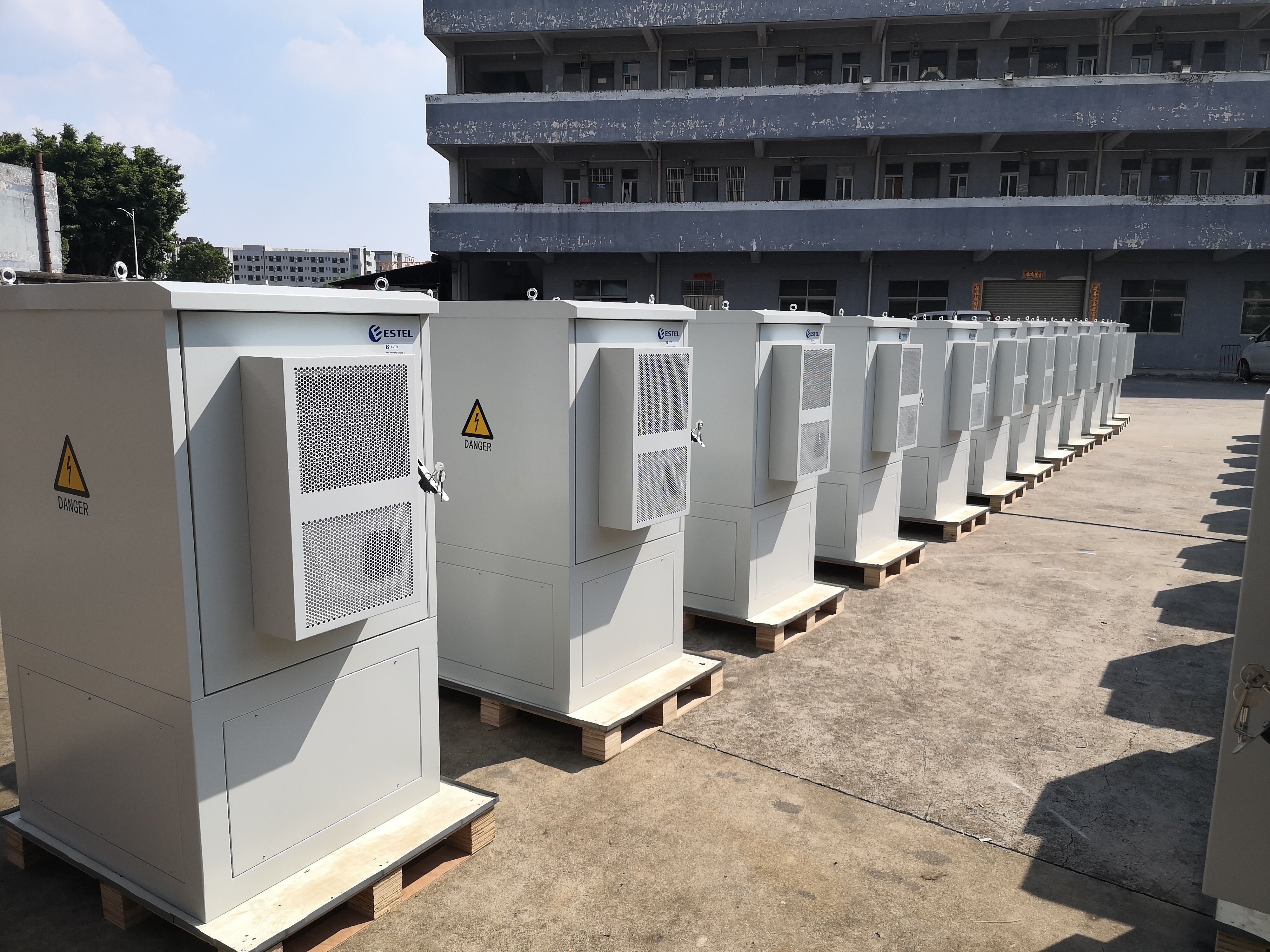

Selecting the Right ESTEL Air Conditioner

Choosing the right air conditioner for your telecom cabinet is crucial for maintaining optimal performance and protecting sensitive equipment. ESTEL air conditioners stand out as a reliable solution, offering advanced features tailored to meet the specific cooling demands of telecom environments. Here’s how you can ensure you select the best option for your needs.

Key Features of ESTEL Air Conditioners

When evaluating air conditioners, you should focus on features that directly impact performance, reliability, and suitability for your telecom cabinet. ESTEL air conditioners excel in these areas, as demonstrated by the following specifications:

These features ensure that ESTEL air conditioners can handle the heat loads generated by your equipment while withstanding environmental challenges. The IP55 protection level, for instance, safeguards the unit against dust and water, making it ideal for outdoor installations. Additionally, the ISO9001 certification guarantees that the product meets stringent quality standards, giving you peace of mind about its durability and performance.

Matching Cooling Capacity to Heat Load

To select the right air conditioner, you must first calculate the total heat load of your telecom cabinet. This includes both internal and external heat loads, as well as a safety factor to account for unexpected conditions. Once you have determined the required cooling capacity, compare it with the specifications of ESTEL air conditioners. For example, if your total heat load is 1000W, an ESTEL unit with a cooling capacity of 1000W would be a perfect match.

Tip: Always choose an air conditioner with a cooling capacity slightly higher than your calculated heat load. This ensures the system operates efficiently without being overburdened.

Ensuring Compatibility with Environmental Conditions

Environmental factors play a significant role in the performance of your cooling system. ESTEL air conditioners are designed to perform reliably in both indoor and outdoor settings. Their robust construction and IP55 protection level make them resistant to harsh weather conditions, including high temperatures and humidity. This versatility allows you to deploy them in a wide range of environments without compromising performance.

Long-Term Benefits of Choosing ESTEL

Investing in an ESTEL air conditioner offers long-term advantages for your telecom cabinet. High reliability ensures consistent cooling, reducing the risk of equipment failure due to overheating. The energy-efficient design helps lower operational costs, while the durable construction minimizes maintenance requirements. By choosing ESTEL, you not only protect your equipment but also enhance the overall efficiency of your telecom infrastructure.

Note: Regular maintenance and monitoring of your air conditioning system are essential for ensuring optimal performance and extending its lifespan.

By considering these factors and leveraging the advanced features of ESTEL air conditioners, you can confidently select a cooling solution that meets the unique demands of your telecom cabinet.

Practical Considerations for Telecom Cabinet Cooling

Matching Cooling Capacity to Heat Load

Matching the cooling capacity to the heat load is essential for maintaining the efficiency and reliability of your cooling system. When the cooling capacity aligns with the actual heat load, your system operates optimally, preventing overheating and unnecessary energy consumption. Effective airflow management plays a critical role in achieving this balance. For example, a telecom cabinet with a 12kW heat load requires approximately 1860 CFM (cubic feet per minute) of airflow to maintain proper cooling. However, poor cable management can obstruct airflow, leading to bypass airflow. This reduces the system's cooling efficiency and may leave some areas of the cabinet inadequately cooled. Adhering to cable management standards helps recapture stranded cooling capacity, ensuring consistent performance.

To optimize cooling, you should regularly assess the heat load and adjust the cooling system as needed. This proactive approach minimizes energy waste and extends the lifespan of your equipment.

Energy Efficiency and Cost Considerations

Energy efficiency is a key factor when selecting a cooling system for your telecom cabinet. Efficient systems not only reduce operational costs but also contribute to environmental sustainability. Studies have shown that Free Cooling (FC) systems are highly effective in reducing energy consumption compared to traditional air conditioning (AC) systems. For instance:

• At a telecom cell site in Ghana, FC systems significantly reduced energy usage over three years.

• As the temperature threshold increased to 30 °C or higher, FC systems accounted for nearly all cooling needs, resulting in substantial energy savings.

By setting higher control system temperatures, you can maximize the benefits of FC systems. This approach reduces reliance on energy-intensive AC systems, lowering both energy costs and carbon emissions. When evaluating cooling options, prioritize systems with high energy efficiency ratings and consider the long-term cost savings they offer.

Maintenance and Monitoring for Optimal Performance

Regular maintenance and monitoring are vital for ensuring the long-term performance of your cooling system. Dust accumulation, wear and tear, and environmental changes can impact the system's efficiency over time. Routine inspections help identify potential issues early, allowing you to address them before they escalate into costly repairs or equipment failures.

Monitoring tools, such as temperature sensors and airflow meters, provide real-time data on the system's performance. These tools enable you to detect anomalies, such as uneven cooling or airflow blockages, and take corrective action promptly. Additionally, maintaining clean filters and ensuring proper airflow pathways enhance the system's efficiency and reliability.

By implementing a comprehensive maintenance plan, you can extend the lifespan of your cooling system and protect the sensitive equipment housed within your telecom cabinet.

Accurate cooling calculations are vital for ensuring the optimal performance of your telecom cabinet. By understanding and applying the formula's components—internal heat load, external heat load, and the safety factor—you can prevent overheating and extend the lifespan of your equipment. Industry studies highlight that precise cooling strategies, such as liquid cooling, can reduce operating costs by up to 30 times compared to traditional air-cooled systems. This underscores the value of selecting the right cooling solution.

ESTEL air conditioning systems offer reliable and efficient cooling tailored to your needs. Their advanced features and energy-efficient designs make them an excellent choice for maintaining the stability of your telecom infrastructure. Choosing ESTEL ensures long-term reliability and cost savings for your operations.

FAQ

What is the purpose of calculating heat load for telecom cabinets?

Calculating heat load ensures your cooling system matches the cabinet's requirements. This prevents overheating, protects sensitive equipment, and extends its lifespan. Proper calculations also improve energy efficiency and reduce operational costs.

How do I determine the internal heat load of my telecom cabinet?

Identify all heat-generating devices, such as servers and power supplies. Use the formula Q i = Σ (P x t), where P is power consumption (watts) and t is operating time (hours). Add the results for all devices.

Why is the safety factor important in cooling calculations?

The safety factor (1.2 multiplier) accounts for unexpected heat loads or environmental changes. It ensures your cooling system operates reliably under varying conditions, preventing equipment failure and extending system durability.

What materials are best for telecom cabinet insulation?

Reflective metals like aluminum or stainless steel reduce solar heat gain. Insulation materials such as foam, glass wool, or rubber enhance thermal resistance, minimizing external heat transfer and improving cooling efficiency.

How can I reduce energy costs for telecom cabinet cooling?

Use energy-efficient cooling systems like Free Cooling (FC) units. Set higher control temperatures to reduce reliance on air conditioning. Regular maintenance and proper airflow management also optimize energy use.

What makes ESTEL air conditioners suitable for telecom cabinets?

ESTEL air conditioners feature high reliability, IP55 protection, and energy-efficient designs. They handle both indoor and outdoor conditions, ensuring consistent performance and protecting sensitive equipment from overheating.

How often should I maintain my telecom cabinet cooling system?

Perform routine inspections every three to six months. Clean filters, check airflow pathways, and monitor system performance using sensors. Regular maintenance prevents efficiency loss and extends the system's lifespan.

Can I use ESTEL air conditioners in extreme climates?

Yes, ESTEL air conditioners are designed for harsh environments. Their robust construction and IP55 protection level ensure reliable performance in high temperatures, humidity, and direct sunlight.

Tip: Always monitor your cooling system's performance to identify potential issues early and maintain optimal efficiency.
