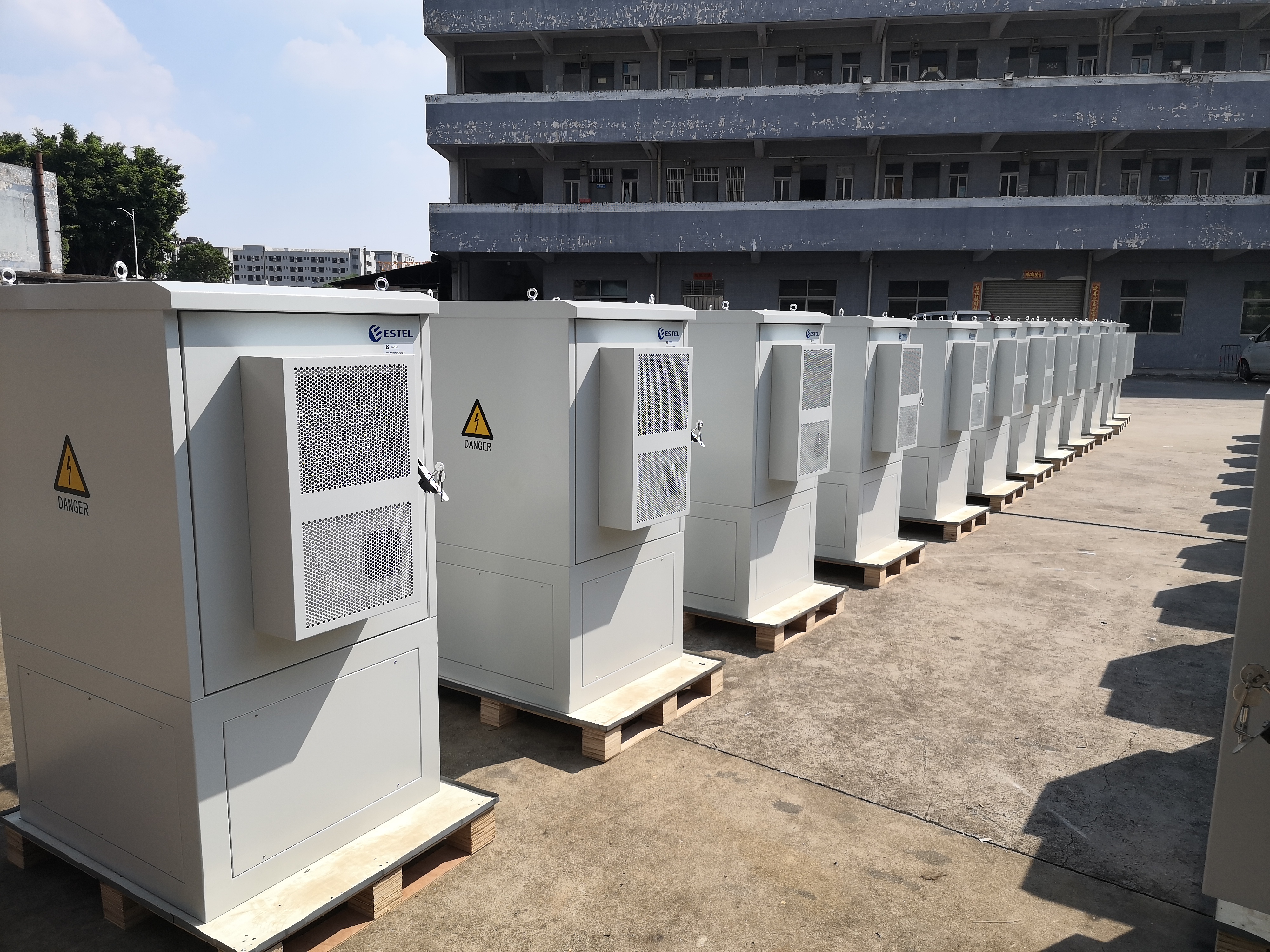

Key Points of Structural Design for ESTEL Integrated Outdoor Telecommunication Cabinets
Outdoor telecom equipment faces harsh conditions. You must ensure a robust structural design for any telecom cabinet to protect sensitive components. Environmental factors like extreme temperatures, UV rays, and humidity can degrade materials and disrupt performance. Without proper design, equipment failure becomes inevitable.
ESTEL specializes in creating innovative solutions. Their advanced designs shield telecom cabinets from environmental threats while ensuring long-term durability. With ESTEL's expertise, you can confidently safeguard your equipment and maintain optimal performance in any climate.
Key Takeaways
Outdoor telecom cabinets face tough weather. Use strong materials like stainless steel or aluminum to last longer.
Sunlight can harm equipment. Pick UV-resistant materials to protect telecom cabinets for a longer time.
Keeping the right temperature is important. Add good cooling systems to stop overheating and keep things working well.
Moisture can break equipment. Use waterproof designs with high protection ratings to block water.
Dust and rain can cause problems. Choose cabinets that follow strict dust and rain protection rules for better performance.
Rust is a big problem near the ocean. Use rust-proof materials and special coatings to make them last longer.
Good cable management makes work easier. Arrange cables neatly to save time and avoid problems.
Plan for future needs. Modular designs make upgrades simple and fit new technology easily.
Environmental Challenges in Outdoor Telecom Cabinet Design
UV Rays and Material Durability
Outdoor telecom cabinets face constant exposure to sunlight, making UV radiation a significant concern. Prolonged UV exposure can weaken materials, reducing their lifespan and causing failures in critical components. For instance:
UV radiation can shorten the lifespan of standard cables by up to 50%.
Cables without UV protection deteriorate quickly, leading to electrical system failures and costly downtime.
To combat this, you should prioritize UV-resistant materials in your cabinet designs. These materials, such as UV-stabilized plastics or powder-coated metals, offer enhanced durability. Additionally, using UV-resistant cables ensures long-term reliability for your telecom cabinet, even in areas with intense sunlight.
Temperature Control and Thermal Management
Temperature fluctuations can severely impact the performance of telecom cabinets. Sudden changes in temperature can cause hardware components to overheat or malfunction. Predictive models have shown that monitoring temperature variations can help identify potential performance issues early. Historical data also reveals that consistent temperature management reduces the risk of system failures.
To maintain optimal performance, you should incorporate efficient cooling systems into your cabinet design. Options include active cooling systems like fans, heat exchangers, or HVAC units. These systems regulate internal temperatures, ensuring that sensitive equipment operates within safe limits. Proper thermal management not only extends the lifespan of your equipment but also minimizes maintenance costs.
Humidity and Waterproofing Solutions
Humidity poses another challenge for outdoor telecom cabinets. Moisture can seep into enclosures, leading to corrosion, short circuits, and equipment damage. Waterproofing is essential to prevent these issues. Sealed and insulated designs block out moisture and debris, protecting internal components.
You should look for cabinets with high ingress protection (IP) ratings, such as IP65 or higher. These ratings indicate the cabinet's ability to resist water and dust. Additionally, weather-resistant enclosures that comply with NEMA standards provide an extra layer of protection. By investing in waterproof designs, you can ensure the reliability of your telecom cabinet in humid or rainy environments.
Rain and Dust Protection Standards
Rain and dust can significantly impact the performance of outdoor telecom cabinets. Without proper protection, water ingress and dust accumulation can lead to short circuits, equipment malfunctions, and costly repairs. To ensure operational integrity, you should prioritize enclosures that meet stringent rain and dust protection standards.
One effective way to evaluate protection levels is by checking the cabinet's ingress protection (IP) rating. For example:
IP55: Offers protection against limited dust ingress and low-pressure water jets.
NEMA 3R: Designed for outdoor use, it protects against falling rain and ice formation.
These ratings indicate the cabinet's ability to withstand environmental challenges, ensuring long-term reliability.
The benefits of adhering to rain and dust protection standards are clear. The following table highlights their importance:
Aspect | Description |
|---|---|
Reliability | Well-protected equipment operates more reliably, minimizing risks of short circuits from water ingress. |
Safety | Reduces malfunctions due to dust accumulation, ensuring safer usage. |
Cost Efficiency | Appropriately rated enclosures lower maintenance costs and prevent costly downtime from failures. |
By investing in cabinets with high IP ratings or NEMA compliance, you can safeguard your telecom equipment against environmental threats. This proactive approach not only enhances reliability but also reduces maintenance expenses over time.
Corrosion Resistance for Coastal Environments
Coastal environments present unique challenges for outdoor telecom cabinets. The high salt content in the air accelerates corrosion, which can weaken the cabinet's structure and compromise its protective capabilities. If left unchecked, corrosion can lead to equipment failure and increased maintenance costs.
To combat this issue, you should select materials specifically designed for corrosion resistance. Stainless steel and aluminum alloys are excellent choices due to their natural resistance to rust. Additionally, applying protective coatings, such as powder coating or galvanization, can further enhance durability. These coatings create a barrier that prevents salt and moisture from reaching the cabinet's surface.
Another critical consideration is the design of the cabinet itself. Sealed enclosures with minimal seams and joints reduce the risk of saltwater intrusion. Ventilation systems equipped with filters can also prevent salt particles from entering the cabinet, ensuring the internal components remain protected.
By prioritizing corrosion-resistant materials and designs, you can extend the lifespan of your telecom cabinet in coastal areas. This approach not only ensures reliable performance but also minimizes the need for frequent replacements or repairs.
Key Structural Design Points for Telecom Cabinets
Dustproof and Waterproof Features
Dust and water are two of the most common threats to outdoor telecom cabinets. Without proper protection, these elements can infiltrate the cabinet, causing equipment malfunctions and reducing its lifespan. To ensure durability, you should prioritize enclosures with high ingress protection (IP) ratings. For example, an IP55-rated cabinet offers excellent resistance to both dust and water ingress.
Incorporating filters at air intake and exhaust points is another effective strategy. These filters prevent dust from accumulating inside the cabinet while maintaining proper ventilation. Additionally, sealed designs with weatherproof gaskets block water from entering, even during heavy rain. By focusing on these features, you can protect your telecom cabinet from environmental damage and ensure reliable performance.
Grounding Systems for Safety
Grounding systems play a critical role in ensuring the safety and functionality of telecom cabinets. They provide a low-impedance path for fault currents, protecting both personnel and equipment from electrical hazards. Without proper grounding, high voltages from lightning strikes or wiring failures can cause shock, fire, or equipment damage.
To enhance safety, you should include grounding busbars in your cabinet design. These components reduce electromagnetic interference (EMI) effects, ensuring stable equipment performance. Research shows that effective grounding minimizes dangerous voltages on equipment enclosures, protecting users from shock. For optimal results, grounding systems must adhere to standards like the National Electrical Code (NEC). By implementing these measures, you can create a safer and more reliable telecom cabinet.
Electromagnetic Shielding Techniques
Electromagnetic interference (EMI) can disrupt the performance of sensitive telecom equipment. To combat this, you should incorporate electromagnetic shielding techniques into your cabinet design. Faraday boxes, for instance, use conductive materials to reflect and absorb electromagnetic waves. This dual mechanism ensures minimal interference reaches the equipment inside.
Common materials like aluminum and copper are ideal for EMI shielding due to their excellent conductivity. These materials reflect electromagnetic waves away from the cabinet while absorbing some energy and converting it into heat. Additionally, shielding can redirect interference to a safe area, often grounding it to prevent further impact. By using these techniques, you can protect your telecom cabinet from EMI and maintain optimal equipment performance.
Practical Considerations for Outdoor Telecom Cabinets
Durability and Material Selection
Choosing the right materials is crucial for the longevity and performance of outdoor telecom cabinets. Materials must withstand harsh environmental conditions while maintaining structural integrity. Metals like stainless steel and aluminum are popular choices due to their strength and corrosion resistance. Plastics, on the other hand, offer lightweight and aesthetic benefits, making them suitable for less demanding environments. Composite materials combine the best of both worlds, providing high strength and customization options for performance-critical applications.
Material Type | Advantages | Applications |
|---|---|---|
Metal | Strength, durability, corrosion resistance | Industrial and commercial |
Plastic | Lightweight, corrosion resistance, aesthetic appeal | Residential |
Composite | High strength, lightweight, customizable | Performance-critical applications |
When selecting materials, prioritize environmental resilience and mechanical security. High-quality materials not only protect sensitive equipment but also reduce maintenance costs over time. By investing in durable materials, you ensure your telecom cabinet remains reliable in any setting.
Cooling Systems for Optimal Performance
Effective cooling systems are essential for maintaining the optimal performance of telecom cabinets. As technology advances, equipment generates more heat, especially with the rise of 5G applications. Without proper cooling, overheating can lead to equipment failure and reduced efficiency.
The global market for electronic cabinet cooling systems reflects this growing need. Valued at approximately USD 2.5 billion in 2023, it is projected to reach nearly USD 4.8 billion by 2032, growing at a compound annual growth rate (CAGR) of 7.2%. This expansion highlights the importance of advanced cooling solutions.
Feature/Benefit | Description |
|---|---|
5G Technology Impact | Increased heat generation from IT applications necessitates advanced cooling systems. |
Continuous Operation | AFL fans ensure reliability in demanding environments. |
Intelligent Control | EC Fan Intelligent Control Technology provides precise airflow control. |
Cooling systems like HVAC units, heat exchangers, and intelligent fans help regulate internal temperatures. These systems ensure continuous operation and protect sensitive components from thermal damage. By incorporating advanced cooling technologies, you can enhance the reliability and lifespan of your telecom cabinet.
Security Features and Anti-Tampering Measures
Security is a top priority for outdoor telecom cabinets. Unauthorized access or tampering can compromise equipment functionality and lead to data breaches. To prevent these risks, you should implement robust mechanical security features.
Feature | Description |
|---|---|
Mechanical Security | Protects equipment from unauthorized access and tampering. |
Environmental Resilience | Ensures operational continuity in harsh weather conditions. |
Material Quality | Enhances durability and safeguards sensitive equipment. |
Anti-tampering measures include reinforced locks, intrusion detection systems, and alarm mechanisms. These features deter unauthorized access and alert you to potential security breaches. Additionally, using high-quality materials enhances the cabinet's resistance to physical attacks. By prioritizing security, you protect your equipment and maintain uninterrupted operations.
Cable Management and Accessibility

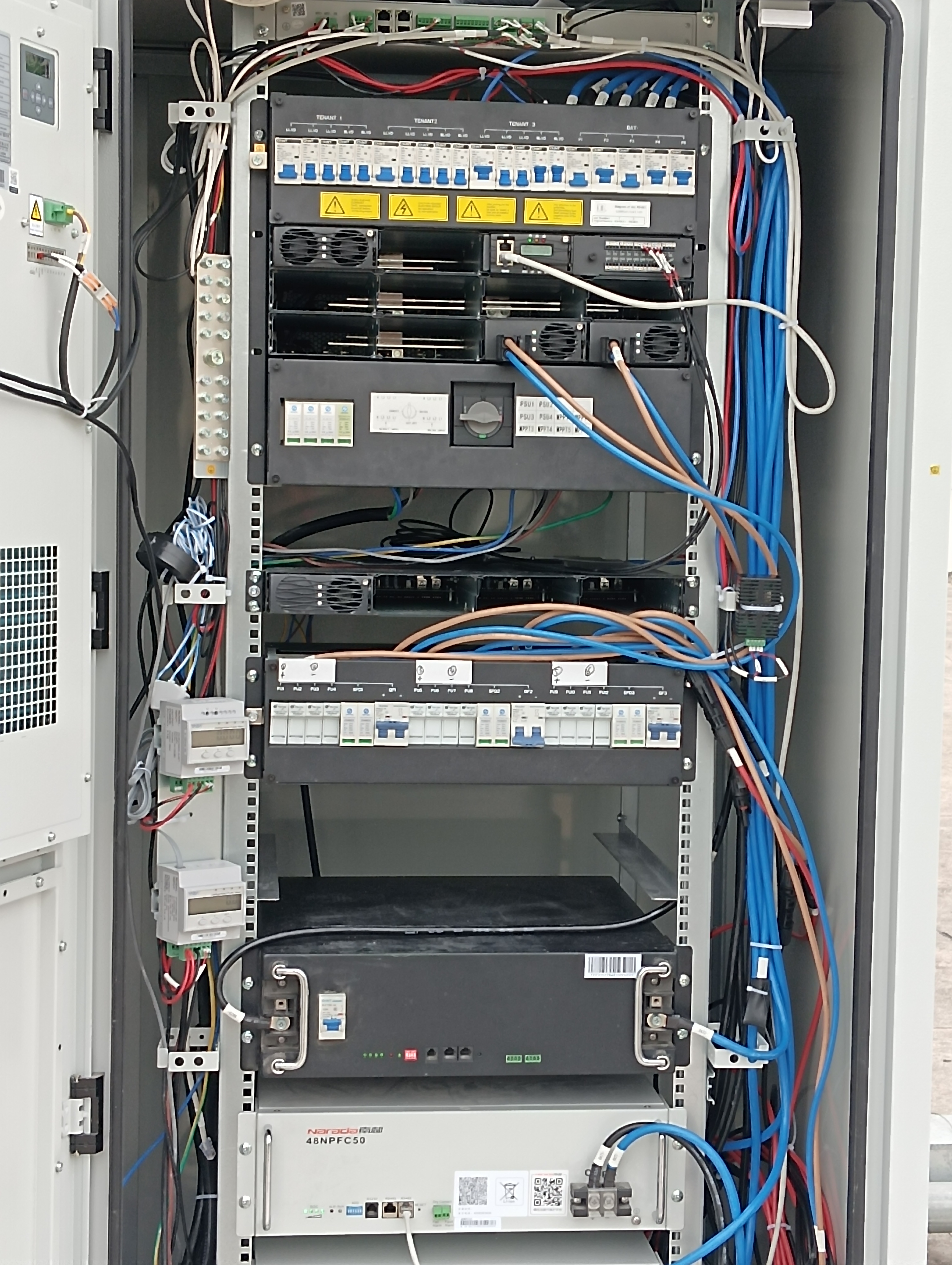

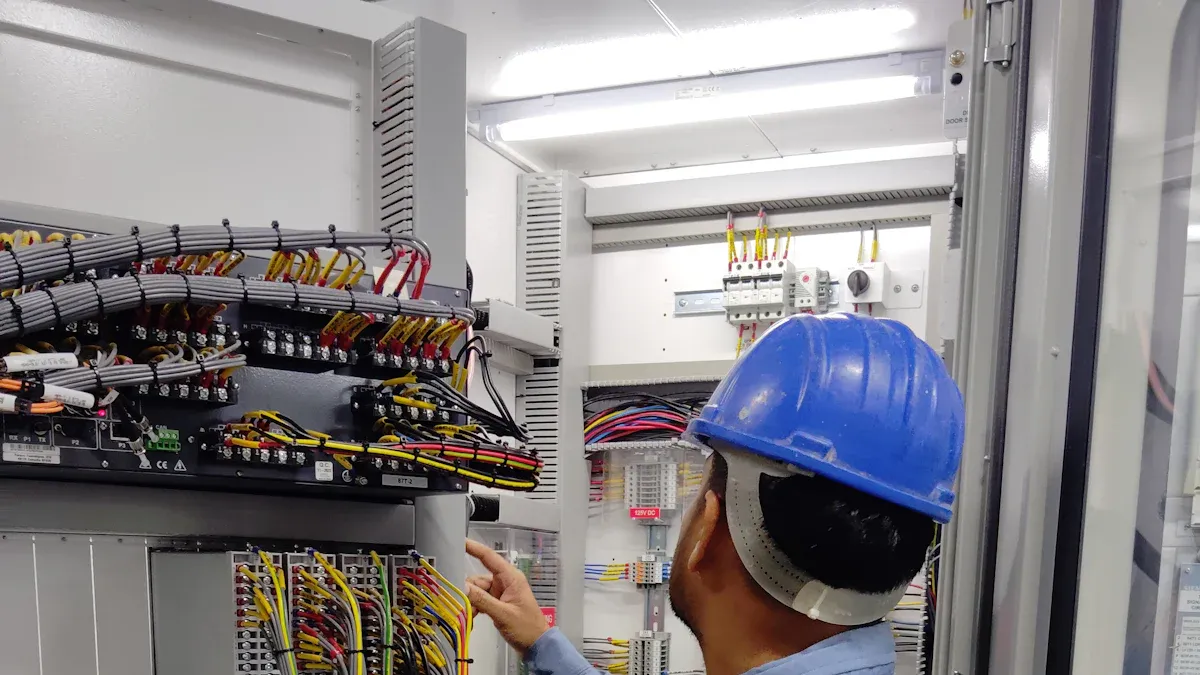

Effective cable management is essential for maintaining the functionality and reliability of outdoor telecom cabinets. Poorly organized cables can lead to operational inefficiencies, increased maintenance time, and even equipment failure. By implementing proper cable management solutions, you can enhance accessibility, improve performance, and reduce downtime.
Organized cables allow you to quickly identify and access specific components, making maintenance tasks safer and more efficient. Additionally, separating power and data cables minimizes crosstalk and interference, which improves overall system performance. Proper cable routing also ensures that airflow paths remain unobstructed, enhancing cooling efficiency and preventing overheating.
The following table highlights the key benefits of effective cable management:
Benefit | Description |
|---|---|
Enhanced availability | Easier access and identification for cables and IT devices. |
Improved maintenance | Ensures easier and safer access to individual components within the rack. |
Increased cooling efficiency | Keeps cables organized and out of critical airflow paths, allowing hot exhaust air to escape. |
Improved scalability | Simplifies moves, adds, and changes, facilitating future growth. |
Implementing these practices not only improves the organization of your telecom cabinet but also enhances its long-term reliability. For example, keeping cables neatly arranged reduces the risk of accidental disconnections during maintenance. This proactive approach ensures that your equipment operates efficiently and remains accessible for future upgrades or repairs.
Tip: Use cable ties, Velcro straps, and labeled pathways to keep cables secure and easy to identify. These small investments can save significant time and effort during troubleshooting or system upgrades.
Scalability and Future-Proofing
As technology evolves, the demands on telecom cabinets continue to grow. Designing for scalability ensures that your cabinet can adapt to future requirements without significant modifications. Scalable designs allow you to integrate new technologies, expand capacity, and meet increasing data traffic demands.
Predictive studies show that nearly 60% of organizations are adopting modular systems to replace outdated equipment. Modular designs enable you to add or remove components as needed, reducing costs and minimizing downtime. Additionally, the global data traffic is projected to reach 175 zettabytes by 2025, emphasizing the need for cabinets that can handle higher capacities.

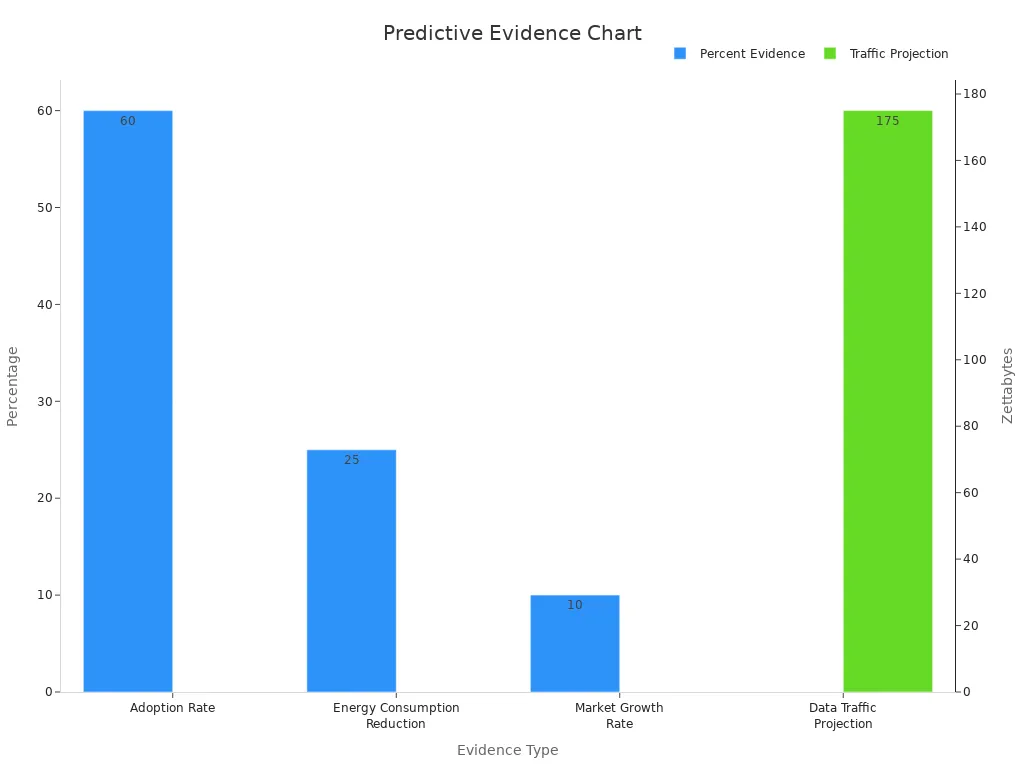

The following chart illustrates key trends supporting scalable designs:
Scalable cabinets also contribute to energy efficiency. For instance, a telecommunications company achieved a 25% reduction in energy consumption by transitioning to modular systems. This approach not only supports environmental sustainability but also lowers operational costs.
To future-proof your telecom cabinet, consider the following strategies:
Use modular designs that allow for easy upgrades.
Select materials and components that support higher data speeds and capacities.
Incorporate flexible cable management systems to accommodate new configurations.
By prioritizing scalability, you can ensure that your telecom cabinet remains relevant and efficient in the face of technological advancements. This forward-thinking approach protects your investment and positions your infrastructure for long-term success.
Designing outdoor telecom cabinets requires attention to durability, weatherproofing, and scalability. High-quality materials like galvanized steel or aluminum ensure long-term reliability by resisting corrosion. Cabinets meeting IP65 or NEMA 4X standards provide effective protection against environmental factors. Rigorous performance testing and extreme condition simulations further guarantee structural integrity and thermal management.
Feature | Description |
|---|---|
Material Quality | Cabinets should be made from high-quality materials like galvanized steel or aluminum for durability and corrosion resistance. |
Weatherproofing Standards | Look for cabinets that meet industry standards such as IP65 or NEMA 4X for effective weatherproofing. |
ESTEL excels in delivering telecom cabinet solutions tailored to your needs. Their designs offer flexibility for future expansions, customizable options, and modular structures that simplify maintenance. By choosing ESTEL, you ensure your equipment remains protected and operational in any environment.
FAQ
What is the ideal material for outdoor telecom cabinets?
Stainless steel and aluminum are excellent choices. They resist corrosion and withstand harsh weather conditions. For lightweight applications, consider UV-stabilized plastics. Composite materials also offer durability and customization for performance-critical environments.
How do I ensure proper cooling in telecom cabinets?
Install active cooling systems like fans, heat exchangers, or HVAC units. Intelligent control technologies optimize airflow and temperature. Proper ventilation and unobstructed airflow paths also enhance cooling efficiency.
Why is grounding important for telecom cabinets?
Grounding protects equipment and personnel from electrical hazards. It provides a safe path for fault currents and reduces electromagnetic interference. Use grounding busbars and follow standards like the National Electrical Code (NEC) for optimal safety.
What does an IP rating indicate?
An IP rating measures a cabinet's resistance to dust and water. For example, IP65 ensures complete dust protection and resistance to water jets. Higher ratings provide better environmental protection, ensuring long-term reliability.
How can I prevent tampering with outdoor cabinets?
Use reinforced locks, intrusion detection systems, and alarms. High-quality materials enhance resistance to physical attacks. Anti-tampering measures protect equipment and ensure uninterrupted operations.
What are the benefits of modular cabinet designs?
Modular designs allow easy upgrades and expansions. They reduce downtime and costs when integrating new technologies. This approach supports scalability and ensures your cabinet adapts to future requirements.
How do I manage cables effectively in telecom cabinets?
Organize cables using ties, Velcro straps, and labeled pathways. Separate power and data cables to minimize interference. Proper cable management improves accessibility, cooling efficiency, and system performance.
Why is corrosion resistance critical for coastal environments?
Coastal air contains high salt levels, which accelerate corrosion. Corrosion weakens cabinets and compromises protection. Use stainless steel, aluminum alloys, or protective coatings like galvanization to extend cabinet lifespan.
Tip: Regular maintenance and inspections help identify potential issues early, ensuring your telecom cabinet remains reliable over time.
