Overload Protection Techniques for Shared Telecom Cabinet Communication Power Systems with Hierarchical Current Limiting During Sudden Surges

Telecom power systems often face sudden electrical surges that threaten equipment safety. Hierarchical current limiting responds quickly to these overloads. Advanced strategies like load-sharing and surge protection help prevent serious failures. Real-time monitoring and adaptive protection maintain system reliability. These methods reduce downtime and protect valuable hardware.

Key Takeaways

• Hierarchical current limiting uses multiple layers of devices to quickly control overloads and protect telecom power systems from sudden surges.

• Surge Protective Devices (SPDs) shield sensitive equipment by diverting harmful voltage spikes, preventing damage and service interruptions.

• Load-sharing strategies balance electrical loads across modules, reducing overload risk and allowing easy maintenance without downtime.

• Real-time monitoring with adaptive controls detects problems early and helps operators respond fast to keep systems stable and reliable.

• Advanced protection techniques improve equipment safety, reduce downtime, and extend system life, but require careful setup and regular maintenance.

Overload Risks in Telecom Power Systems

Overload Scenarios

Telecom power systems face several overload scenarios that threaten network stability. Recent industry analysis shows that legacy network limitations, such as copper wire and T1 systems, once increased overload risks. Modern upgrades like fiber optics and wireless technology have improved capacity and resilience. However, overloads still occur during emergency events, such as natural disasters or sudden spikes in demand. For example, incidents like the Minneapolis bridge collapse and the Boston Marathon bombing led to unexpected surges in network usage. The COVID-19 lockdown in 2020 also caused significant traffic increases. Other common causes include:

• IT and network complexity, which accounts for nearly a quarter of impactful outages due to software updates or misconfigurations.

• Human error, often from not following procedures, leads to more than half of outages.

• Failures from third-party providers, including cloud and telecom partners.

• Natural disasters, grid failures, equipment malfunctions, and energy shortages.

Strong operational discipline and real-time monitoring help prevent many avoidable outages.

Surge Events

Surge events differ from standard overloads in both cause and effect. The table below highlights key differences:

Surge events require fast-acting protection to prevent damage to delicate telecom equipment.

System and Equipment Impact

Overloads and surges can severely affect telecom power systems. Undersized rectifier modules may fail during peak loads, causing service interruptions and reducing equipment lifespan. Overloading risks system downtime and damage to critical devices. Power surges can break down insulation, damage integrated circuits, and burn out circuit boards. Frequent surges speed up component aging and degrade insulating materials. Severe surges may cause short circuits, overheating, or even fires, putting both equipment and personnel at risk. Effective surge protection devices absorb voltage spikes, prevent equipment damage, and ensure system stability. Proper sizing, modular designs, and real-time monitoring tools help maintain reliability and extend the life of telecom infrastructure.

Hierarchical Current Limiting

Principles

Hierarchical current limiting uses a layered approach to control fault currents in electrical networks. Engineers divide fault areas in multi-terminal DC grids based on how converter nodes connect to the grid. Nodes with two or more DC lines form higher-coupled areas, while nodes with only one DC line create lower-coupled areas. This division helps clarify the spatial arrangement of current-limiting devices (CLDs) and allows for step-by-step optimization.

1. Fault areas are separated by coupling degree of converter nodes.

2. Different CLDs, such as current-limiting reactors (CLRs), fault current limiters (FCLs), and DC circuit breakers (DCCBs), work together in layers to suppress and isolate fault currents.

3. Engineers select device parameters in lower-coupled areas first, which reduces uncertainty in the system.

4. Coordination between CLRs and FCLs balances effectiveness, cost, and stability. CLRs alone may increase costs or cause instability.

5. Protection sequence and timing matter. DCCBs usually act about 6 milliseconds after a fault, while CLDs limit the initial fault current.

Tip: Combining CLRs and FCLs allows for quick response and stable operation. CLRs react in 1–3 milliseconds, but large values can raise costs or affect stability. Using both devices together helps achieve reliable and economical fault current suppression.

Application in Telecom Power Systems

Telecom power systems benefit from hierarchical current limiting by improving overload protection and system reliability. Engineers install CLRs, FCLs, and DCCBs at strategic points in the cabinet. These devices work in a coordinated sequence to limit fault currents during sudden surges. The system first uses CLRs for rapid response, then FCLs for sustained current control, and finally DCCBs to isolate faults.

Operators configure device parameters based on the coupling degree of each node. Lower-coupled areas receive priority for parameter selection, which helps stabilize the entire system. Real-time monitoring tools track current levels and trigger protection devices as needed. This layered approach reduces equipment damage, prevents downtime, and extends the lifespan of telecom power systems.

Protection Techniques

Threshold-Based Cut-Off

Threshold-based cut-off mechanisms play a vital role in protecting telecom cabinet equipment from overload conditions. These systems use devices such as thermal overload relays, bi-metallic strips, and thermistors to monitor temperature and current. When the system detects abnormal rises, it triggers automatic disconnection or sends alarms. This rapid response prevents overheating and insulation damage. Proper sensor placement at critical points, along with calibrated threshold settings, ensures accurate detection and avoids false trips. Overcurrent protection devices like fuses and circuit breakers also isolate affected sections, maintaining operational continuity and minimizing downtime. These methods help keep equipment safe and stable during overload events.

Note: Careful integration of threshold-based cut-off devices with monitoring systems increases reliability and reduces the risk of equipment failure.

Load-Sharing Strategies

Load-sharing strategies distribute electrical loads evenly across multiple modules or rectifiers. Modular rectifier designs with redundancy and hot-swappable features allow maintenance without shutting down the system. This approach balances the load, prevents individual module overload, and supports system scalability. Uninterruptible Power Supply (UPS) systems and battery backups further enhance protection by providing continuous power during interruptions. Wide input voltage tolerance in rectifier modules ensures stable operation, even when grid voltage fluctuates. These strategies collectively reduce the risk of overload and extend the lifespan of telecom cabinet components.

• Modular rectifiers with redundancy

• Hot-swappable modules for easy maintenance

• UPS systems and battery backups

• Wide input voltage tolerance

Surge Protective Devices

Surge Protective Devices (SPDs) shield telecom cabinet power systems from voltage surges caused by lightning, grid switching, or load fluctuations. SPDs work by diverting excess voltage away from sensitive equipment, preventing damage and service disruption. Different types of SPDs, including voltage-limiting, switching, and composite types, are chosen based on application needs. Proper selection and budgeting of SPDs ensure cost-effective and reliable protection.

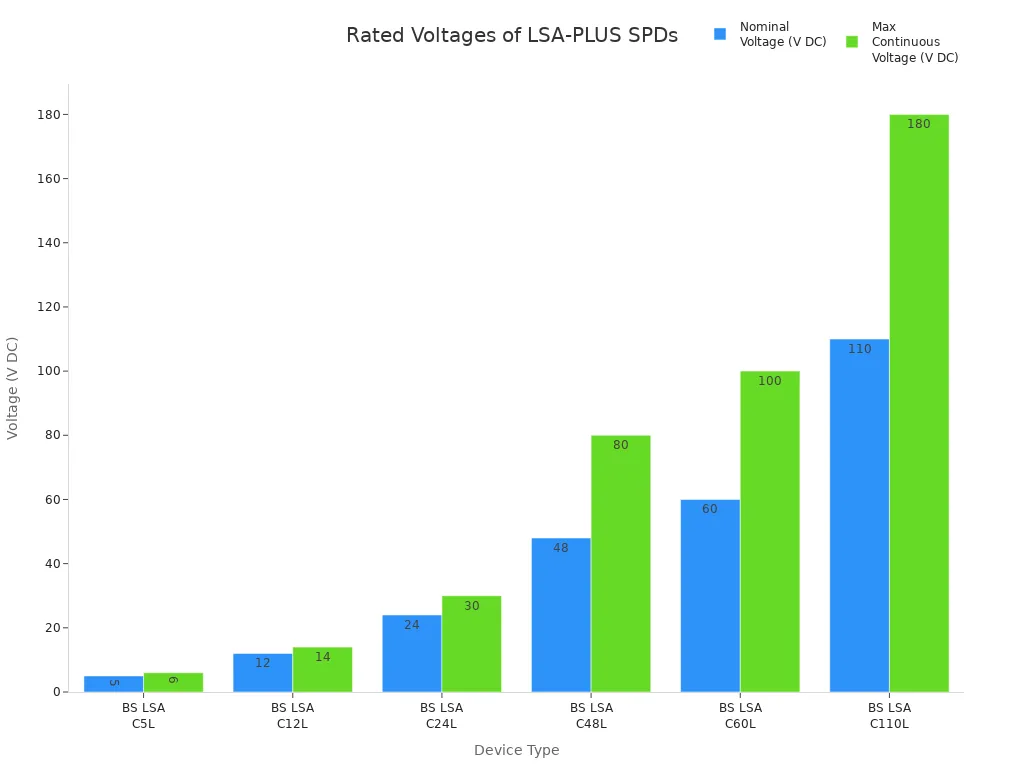

The table below shows common LSA-PLUS SPDs used in telecom cabinet power systems:

These modular, pluggable SPDs fit LSA-PLUS terminal blocks and protect signal lines from voltage surges. Type 1 SPDs handle lightning surge capacities of at least 12.5 kA, while high-energy switching surge capacity should reach 40 kA or more. The voltage protection level remains below 1.5 kV for sensitive electronics, and response times are typically under 25 nanoseconds. Type 1+2 combination SPDs are ideal for compact telecom panels.

SPDs are often mounted on DIN rails and integrated into the power distribution system, sometimes with remote monitoring. This setup ensures equipment protection, reduces downtime, and maintains operational continuity.

Current-Limiting Devices

Current-limiting devices prevent excessive current from damaging telecom cabinet components. These devices include both passive and active types. Passive current limiting uses resistors to restrict current to safe levels, protecting equipment like LEDs and sensitive electronics. Active current limiting employs transistors, such as BJTs and MOSFETs, along with current-sensing resistors. The system monitors voltage across the sensing resistor and dynamically adjusts or cuts off current flow when limits are exceeded.

Modern circuits use low RDS(on) MOSFETs to reduce power loss and heat, improving efficiency and reliability. Engineers specify maximum current limits and select suitable sensing techniques, such as shunt resistors or Hall-effect sensors. These methods ensure that current does not exceed safe thresholds, protecting telecom power systems from overload and enhancing system longevity.

1. Passive limiting with resistors

2. Active limiting with transistors and sensing resistors

3. Modern MOSFET-based circuits for efficiency

4. Careful design and calibration for optimal protection

Adaptive and Real-Time Protection

Adaptive and real-time protection strategies use advanced technologies to maintain continuous operation during surges. IoT sensors, edge computing, and AI-driven analytics monitor power and environmental parameters around the clock. These systems detect voltage fluctuations, overloads, and temperature spikes early, sending instant notifications to maintenance teams through email, SMS, or push alerts. AI-driven adaptive features balance loads and activate surge protection automatically, preventing equipment damage and outages.

Integration with remote management tools speeds up maintenance response, reducing mean time to repair and improving first-time fix rates. Predictive maintenance becomes possible, lowering the number of required maintenance visits and enabling 24/7 fault identification. Built-in safeguards, such as overload protection and thermal management, help avoid critical failures during surge events. Modular cabinet designs and climate control further protect power components from environmental stress, ensuring stable power delivery and continuous network uptime.

Tip: Combining adaptive protection with real-time monitoring creates a proactive defense against surges and overloads, keeping telecom power systems reliable and resilient.

Implementation Steps

Hardware Integration

Engineers begin by selecting and installing key hardware components that support hierarchical current limiting. The system uses a modular approach, with each stage handling a specific function in power conversion and protection. The table below outlines the main components and their roles:

This hierarchical arrangement enables staged current control and protection at multiple points in the power system.

Software and Configuration

Software plays a critical role in configuring and managing hierarchical current limiting. Modern systems require several advanced features:

• High-frequency data acquisition, with devices sampled every 100 ms, captures current and event data.

• Hierarchical equipment categorization supports multi-layered device management.

• Centralized management platforms handle alarm and event processing.

• Integration with power distribution hardware enables real-time control.

• Intelligent PDUs and RPPs provide remote management, current monitoring, automated load shedding, and power usage reporting.

• DCIM software offers centralized monitoring, reporting, analysis, automation, and integration.

• The software supports scalability, managing large numbers of devices and indicators.

These features ensure that operators can monitor, control, and optimize the system efficiently.

Real-Time Simulation

Before deployment, engineers validate the system using real-time simulation. This process models fault conditions, overloads, and surge events in a controlled environment. Simulation tools test the response of hardware and software, ensuring that current limiting devices activate as intended. Engineers adjust parameters based on simulation results to achieve optimal protection. Real-time simulation helps identify weaknesses, verify system stability, and reduce the risk of unexpected failures after installation.

Tip: Real-time simulation provides valuable insights, allowing teams to fine-tune both hardware and software for maximum reliability.

Case Study: Telecom Power Systems

Surge Event Example

A large telecom provider experienced a sudden surge during a summer thunderstorm. Lightning struck near a major network hub. The surge entered the cabinet through the power lines. Sensitive equipment faced immediate risk. Network engineers noticed voltage readings spiking above safe levels. The surge lasted less than a second, but the impact threatened routers, switches, and backup batteries.

The team had prepared for such events. They installed surge protective devices and monitored the system using real-time sensors. The monitoring platform sent alerts to the operations center. Engineers responded quickly, checking the status of each module.

Hierarchical Limiting Response

The hierarchical current limiting system activated in stages. Current-limiting reactors responded first, absorbing the initial spike. Fault current limiters then engaged, restricting the flow to safe levels. DC circuit breakers isolated affected sections within milliseconds. The system prioritized nodes with lower coupling degrees, ensuring stability across the cabinet.

Operators used remote management tools to track the response. The software displayed real-time current data and device status. Engineers adjusted parameters based on live feedback. The layered approach allowed each device to perform its role without delay.

Tip: Hierarchical current limiting provides a structured defense against unpredictable surges. Each layer acts quickly, reducing the risk of equipment failure.

Results and Insights

The surge event did not cause any equipment damage. Network uptime remained above 99.99%. The telecom power systems continued to operate without interruption. Engineers reviewed the event logs and confirmed that all protection devices functioned as designed.

Key insights included:

• Layered protection reduced downtime and maintenance costs.

• Real-time monitoring improved response speed.

• Modular cabinet design allowed easy replacement of affected parts.

A table summarizes the event outcome:

The case study shows that hierarchical current limiting and adaptive protection strategies help telecom power systems withstand sudden surges.

Benefits and Challenges

Advantages

Hierarchical current limiting and advanced overload protection offer several important benefits for modern communication power systems. These advantages help operators maintain stable and reliable service, even during unexpected surges.

• Enhanced Equipment Safety: Layered protection devices act quickly to prevent damage from overloads and surges. Sensitive electronics remain safe, which reduces repair costs.

• Reduced Downtime: Fast-acting current limiters and surge protective devices minimize service interruptions. Network uptime stays high, which supports critical communications.

• Scalability and Flexibility: Modular designs allow easy upgrades and maintenance. Operators can add or replace modules without shutting down the entire system.

• Real-Time Monitoring: Continuous data collection and adaptive controls help teams respond to problems before they cause failures.

• Cost Savings: Preventing equipment damage and reducing maintenance visits lowers operational expenses.

Operators who use these techniques often see improved reliability and longer equipment lifespans.

Limitations

Despite the clear benefits, some challenges remain when implementing hierarchical current limiting and advanced protection strategies.

1. Initial Investment: Advanced hardware and software require higher upfront costs. Smaller organizations may find these expenses difficult to justify.

2. Complex Configuration: Setting up layered protection demands careful planning and skilled personnel. Incorrect settings can lead to false alarms or missed faults.

3. Maintenance Requirements: Regular testing and calibration ensure that protection devices work as intended. This process adds to ongoing operational tasks.

4. Space Constraints: Adding extra modules and surge devices can increase cabinet size. Limited space may restrict how much protection can be installed.

5. Technology Integration: Combining new systems with legacy infrastructure sometimes creates compatibility issues.

Careful planning and regular training help teams overcome these challenges and maximize the value of advanced protection systems.

Hierarchical current limiting and advanced protection techniques deliver strong overload defense during sudden surges. Integrating surge protection, load-sharing, and adaptive methods ensures robust system reliability. Best practices include:

• Real-time monitoring with AI-driven analytics

• Modular cabinet designs for easy upgrades

• Intelligent power management and predictive maintenance

Future trends point to smart PDUs, IoT integration, and compatibility with renewable energy. These innovations will help modern telecom infrastructure remain resilient and efficient.

FAQ

What is hierarchical current limiting in telecom power systems?

Hierarchical current limiting uses multiple layers of protection devices. Each layer responds to overloads or surges at different points in the system. This method helps prevent equipment damage and keeps the network running.

How do surge protective devices (SPDs) work in telecom cabinets?

SPDs detect voltage spikes and divert excess energy away from sensitive equipment. They act quickly, often within nanoseconds. This action protects circuit boards and communication lines from damage.

Why is real-time monitoring important for overload protection?

Real-time monitoring tracks current, voltage, and temperature. It alerts operators to abnormal conditions. Fast detection allows quick action, which reduces downtime and prevents equipment failure.

Can modular cabinet designs improve overload protection?

Yes. Modular cabinet designs allow easy upgrades and maintenance. Operators can replace faulty modules without shutting down the entire system. This flexibility supports better overload management.

What challenges do operators face when using advanced protection techniques?

Operators may face high initial costs and complex setup. Regular maintenance and calibration are also needed. Space limitations in cabinets can restrict the number of protection devices installed.
