High-Temp Reliability of Telecom Cabinet Communication Power Systems: Failure Modes via Thermal Cycling + Vibration Tests

Telecom power systems face significant reliability threats when exposed to high temperatures, thermal cycling, and vibration. Cooling and HVAC systems play a vital role in protecting sensitive equipment from overheating and premature failure.

• Inadequate cooling often leads to compromised functionality, while poor cable management can restrict airflow and further increase risk.

• A safety factor in cooling design and regular maintenance, such as monitoring with temperature sensors, help extend equipment lifespan.
  Engineers and operators must understand these challenges to maintain operational stability and reduce costly outages.

Key Takeaways

• High temperatures inside telecom cabinets come mainly from internal equipment and solar heat, which can cause overheating and damage.

• Effective cooling systems like air conditioning and heat exchangers protect equipment by keeping temperatures stable and preventing failures.

• Common failure modes include solder joint fatigue, electromigration, corrosion, and conductive filament formation, all worsened by heat and vibration.

• Thermal cycling and vibration tests help engineers find weak spots and improve designs to make telecom power systems more reliable.

• Routine maintenance, backup power, and predictive diagnostics using sensors and AI reduce downtime and extend equipment life.

High-Temperature Challenges

Heat Sources in Cabinets

Telecom cabinets contain several sources of heat that can threaten system reliability.

• Internal electronic equipment, especially power conversion devices such as rectifier modules, generate substantial heat during operation.

• High power loads and dense layouts of active components increase the overall heat produced.

• Components like MOSFETs and power diodes often experience significant thermal stress.

• AC to DC conversion and switching operations further contribute to internal heat buildup.

• Poor heat dissipation leads to thermal overload, component degradation, and the formation of hot spots.

The primary heat inside telecom cabinets comes from the equipment itself and from external solar exposure. Internal heat transfers to the ambient air by convection and radiates outward. These factors make internal electronic devices and power modules the main contributors to rising temperatures within the enclosure.

Cooling and HVAC Importance

Effective cooling and HVAC systems are essential for maintaining optimal temperatures in telecom power systems.

• TEC air conditioning can keep cabinet interiors stable, even when outside temperatures soar, providing precise control for sensitive electronics.

• Closed-loop heat exchangers efficiently manage heat loads and shield equipment from dust and moisture, making them suitable for harsh or high-density environments.

• Fan cooling works well for moderate heat loads but may not suffice for high-density setups.

• Hybrid and smart cooling systems monitor real-time conditions and adjust cooling levels automatically, improving efficiency and reducing energy waste.

• Proper insulation and backup power solutions, such as UPS or generators, help maintain stable temperatures during power interruptions or extreme weather.

Selecting the right cooling method depends on environmental conditions, equipment density, and energy efficiency requirements. Modular and scalable systems can lower total ownership costs and extend equipment lifespan.

Effects on Telecom Power Systems

High temperatures have a direct impact on the performance and longevity of telecom power systems. When cooling is inadequate, components often exceed safe operating temperatures, typically between 85°C and 105°C. This overheating leads to performance degradation, data errors, and even complete shutdowns.

Operators notice that brief thermal excursions can cause soft failures, such as system drops or operational halts, due to timing issues.

Elevated temperatures accelerate chemical reactions in batteries, causing faster degradation, increased self-discharge, and corrosion. For every 10°C rise above 25°C, battery lifespan drops by about 50%. Extreme heat can trigger thermal runaway, resulting in permanent damage.

• Passive components like electrolytic capacitors lose capacitance and increase ESR at higher temperatures, degrading circuit performance.

• Thermal cycling causes mechanical stress, leading to fractures in solder joints and wire bonds.

High temperature also increases conduction losses, reduces efficiency, and raises failure rates, lowering the mean time between failures (MTBF). Proper thermal management remains critical for maintaining the reliability and service life of telecom power systems.

Failure Modes in Telecom Power Systems

Solder Joint Fatigue

Solder joint fatigue stands as a leading cause of failure in telecom power systems, especially under repeated thermal cycling and vibration.

• Thermal expansion mismatch between different materials in the solder joint assembly creates mechanical stress.

• This stress leads to combined creep and fatigue damage, which worsens at high temperatures, particularly in lead-free solders.

• Vibration introduces additional mechanical strain, accelerating the fatigue process.

• Microstructural factors, such as alloy composition and intermetallic compound formation at interfaces, play a critical role in fatigue resistance.

Engineers often use finite element analysis and viscoelastic models to predict solder joint behavior under these harsh conditions. During accelerated thermal cycling tests, cracks typically initiate near the copper pad and solder interface, especially around intermetallic compounds. Pb-free solder alloys, like SAC 387, generally offer better reliability than traditional tin-lead solder. However, even with alloy strengthening, the combined effects of thermal cycling and vibration can significantly reduce solder joint integrity, leading to intermittent or permanent failures in telecom power systems.

Electromigration

Electromigration (EM) refers to the movement of metal atoms within solder joints caused by the momentum transfer from high-density electrical currents. This process becomes especially problematic in telecom power systems, where power devices handle large currents and elevated temperatures. The table below summarizes key aspects of electromigration:

Thermal gradients within devices further complicate electromigration, sometimes enhancing or counteracting the effect depending on the contact location. As a result, telecom power systems may experience unpredictable failure patterns, making EM a critical reliability concern.

Corrosion

Corrosion poses a persistent threat to telecom power systems, especially in environments with high humidity and airborne contaminants. Moisture condensation on metal surfaces accelerates corrosion, particularly when relative humidity exceeds 70%. Pollutants such as sulfur dioxide and chlorine from cable sheathing react with metal surfaces, further increasing the risk. Rapid temperature fluctuations can cause condensation, compounding the problem.

Technicians detect corrosion by visually inspecting power cables, battery terminals, air conditioning units, and door seals for signs of wear, swelling, or oxidation. Regular inspection schedules and detailed maintenance records help prevent unexpected failures. Corrosion not only degrades electrical connections but also shortens the lifespan of critical components.

Conductive Filament Formation

Conductive anodic filament (CAF) formation occurs when electrochemical migration creates conductive paths along non-metallic substrates, such as printed circuit board laminates. High temperature and humidity, especially above 85°C and 87% relative humidity, combined with electrical bias, promote CAF growth. Factors like conductor spacing, hole sizes, and glass fiber orientation in PCB materials influence susceptibility.

• CAF formation degrades operational reliability by creating unintended conductive paths, leading to short circuits or intermittent failures.

• Telecom cabinets often operate in harsh environments, making them vulnerable to CAF-related issues.

• Standard test methods, such as IPC-TM-650, expose test coupons to prolonged environmental and electrical stress to evaluate CAF risk.

Improvements in materials and design help reduce CAF formation, directly supporting the long-term reliability of telecom power systems.

Stress-Induced Voiding

Stress-induced voiding arises from atomic migration and mechanical stress within solder joints. Electromigration causes atoms to move, leading to the nucleation and growth of microscopic voids, especially near the cathode side. These voids act as stress concentrators, weakening the mechanical properties of solder joints.

• Growth of brittle intermetallic compounds at the solder joint interface further promotes void formation.

• Thermal cycling induces stress concentration at interfaces and voids, accelerating crack initiation.

• Voids reduce the effective cross-sectional area, lowering mechanical strength and reliability.

Engineers identify stress-induced voiding during thermal cycling by monitoring electrical signals in real time, using X-ray imaging to detect voids, and employing dye and pry tests to reveal fracture areas. Scanning electron microscopy provides microstructural insights, while finite element analysis simulates stress distributions. These combined methods allow for accurate detection and assessment of void-related failures in telecom power systems.

Dielectric Breakdown

Dielectric breakdown occurs when the electric field across an insulating material exceeds its dielectric strength, causing the insulator to become conductive. In telecom power systems, this often results from air pockets or voids trapped within solid insulation, which break down at lower voltages than the surrounding material.

• Partial discharges from defects like cracks or bubbles cause local ionization and heating, degrading insulation and forming carbonized conductive channels.

• Overvoltages and high-voltage impulses impose stresses beyond normal operating levels, increasing breakdown risk.

• Breakdown in solid insulation is usually irreversible, leading to permanent damage such as carbonized paths or holes.

Prevention relies on using materials with high dielectric strength, avoiding impurities, and ensuring uniform electric field distribution. Proper insulation design and quality control remain essential for maintaining the reliability of telecom power systems.

Thermal Cycling and Vibration Tests

Test Methods

Engineers use a range of standardized methods to evaluate the durability of telecom power systems under thermal and mechanical stress. These tests simulate real-world conditions, such as temperature swings and vibrations from transportation or seismic events. Common standards include:

• Telcordia GR-63-CORE (NEBS) for vibration and seismic requirements

• IEC 60068-2-6 for sinusoidal vibration testing

• IEC 60068-2-27 for shock testing

• ASTM D999, D4728, D3580 for various vibration scenarios

• JESD22-B103B for component qualification

• IEEE 693 for seismic design in substations

Specialized software, such as VibrationVIEW, helps automate and analyze vibration test data. Test parameters often include temperature ranges from -70°C to +180°C and vibration frequencies from 5 Hz to 2000 Hz. The table below summarizes typical defect locations and failure mechanisms identified during these tests:

Reliability Insights

Thermal cycling and vibration testing have revealed several key insights about the reliability of telecom power systems:

1. Vibration tests often expose weaknesses in components such as capacitors, connectors, and mounting brackets. These parts may suffer from fatigue or structural failure.

2. Engineers have improved designs by adding vibration-dampening materials and reinforcing frames. Optimized cooling systems also help reduce vibration effects.

3. These changes have led to greater durability and fewer failures, resulting in more reliable network infrastructure.

4. Improved reliability reduces maintenance costs and downtime, which benefits both operators and customers.

Note: Combined temperature and vibration testing can reveal failure modes, such as cracking from the interaction of thermal expansion and mechanical fatigue, that isolated tests might miss.

Field vs. Lab Results

Laboratory tests use accelerated aging and highly accelerated life testing (HALT) chambers to simulate harsh outdoor conditions. These tests apply rapid temperature changes, vibration, humidity, and corrosion to expose design weaknesses early. In the field, telecom cabinets face similar stresses from daily temperature fluctuations, mechanical shocks, and environmental exposure. Test parameters, such as cycle durability and sealing effectiveness, reflect real-world demands. For example, vibration resistance testing per MIL-STD-810 mimics transportation stresses, while salt spray tests ensure corrosion resistance. By aligning lab tests with field conditions, engineers can better predict and prevent failures in telecom power systems.

Design and Maintenance Strategies

Thermal Management

Effective thermal management forms the backbone of reliable telecom cabinet operation. Air conditioners remain the most common and cost-effective solution, using direct expansion or split-type units to maintain stable internal temperatures. Modern AC units offer energy efficiency through full inverter compressors, EC fans, and smart controllers with remote monitoring. Proper sizing of cooling units is critical. Undersized systems often lead to overheating and premature equipment failure. Cabinets must also protect against UV radiation, humidity, and condensation. Energy-saving features can reduce cooling energy consumption by up to 30%, supporting both sustainability and lower operational costs. For high-density or advanced deployments, future-proofing with extra space and power capacity ensures readiness for technologies like 5G.

Routine Maintenance

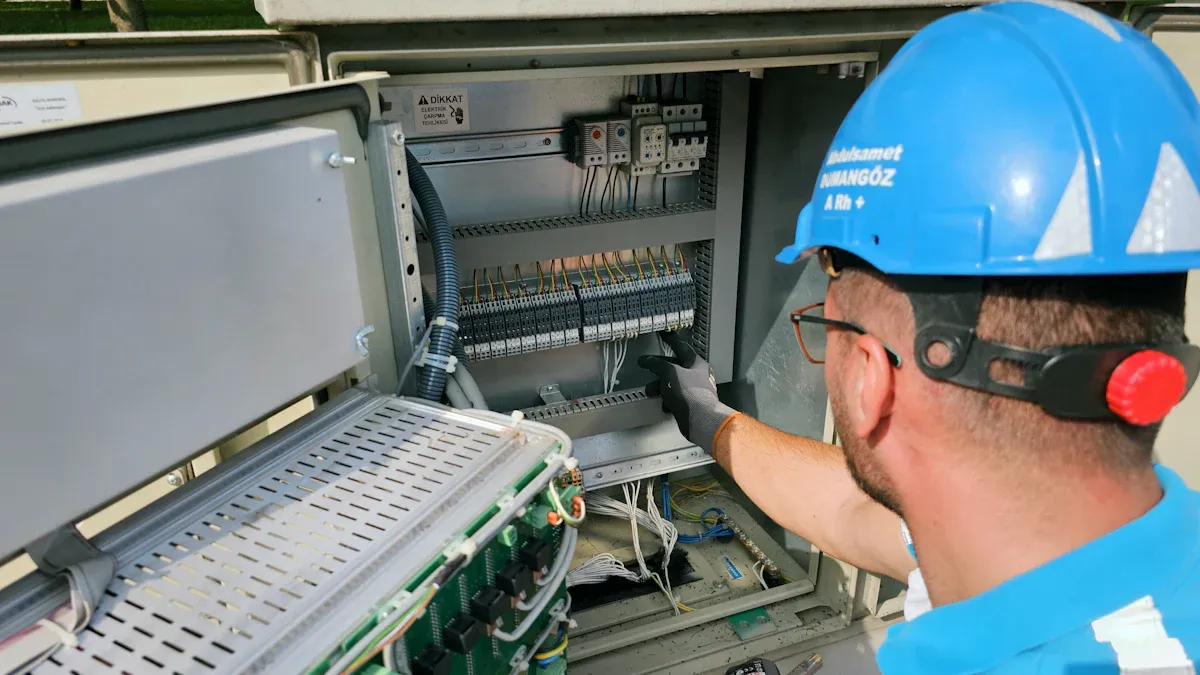

Routine maintenance directly impacts the long-term reliability of telecom power systems. Technicians perform regular inspections, voltage checks, and cleaning to prevent corrosion and battery degradation. Seasonal maintenance addresses specific environmental challenges, such as increased humidity in summer or debris in fall. Training maintenance personnel ensures proper inspection and monitoring. Keeping spare parts and batteries on hand reduces repair time during emergencies. Advanced monitoring tools, including battery sensors and predictive maintenance software, enable early detection of issues. Standardizing and automating maintenance processes further reduce human error and improve responsiveness.

Backup Power Solutions

Reliable backup power solutions keep telecom cabinets operational during thermal or mechanical stress. MPPT solar modules adapt to sunlight and temperature changes, optimizing power extraction. Proper sizing of solar modules and batteries prevents energy waste and reduces strain. Advanced Battery Management Systems monitor battery health and safety. Active thermal management, such as fans and air conditioning, keeps battery temperatures below critical thresholds. Enclosures with high IP ratings protect against dust and water, while vibration-resistant connectors and mechanical supports minimize damage from shocks. Modular rectifier designs allow hot-swappable modules, ensuring continuous operation during maintenance.

Predictive Diagnostics

Predictive diagnostics use sensors to monitor vibration, temperature, and pressure in real time. Data integration with analytics platforms enables rapid analysis and response. AI algorithms and machine learning models detect subtle performance changes, predicting failures before they occur. This approach allows maintenance scheduling based on actual equipment condition, reducing unnecessary interventions. Early detection prevents catastrophic failures, reducing downtime by up to 50% and extending equipment life. IoT and edge computing support scalable data processing and fast anomaly detection, enhancing the reliability of telecom power systems.

Engineers can boost reliability by adopting modular rectifier systems, integrating AI-driven predictive maintenance, and using advanced semiconductor materials.

1. Ensure robust thermal management with effective heat dissipation and environmental controls.

2. Implement routine cleaning, connection checks, and firmware updates.

3. Employ vibration isolation and certified converters for added protection.

• Select solar modules with N+1 redundancy and advanced cell technology.

• Use regular thermal imaging and optimize cable management.

• Design scalable cabinets and intelligent power distribution for future needs.

These strategies deliver longer equipment life, reduced downtime, and improved operational efficiency.

FAQ

What is the most common failure mode in telecom power systems under high temperatures?

Solder joint fatigue often appears first. Repeated thermal cycling and vibration cause cracks, leading to intermittent or permanent failures. Operators notice these issues during routine inspections and thermal cycling tests.

How do engineers detect corrosion in telecom cabinets?

Technicians look for discoloration, swelling, or oxidation on cables and terminals. They use visual inspections and maintenance records. Regular checks help prevent unexpected outages.

Why are thermal cycling and vibration tests important?

These tests simulate real-world stresses. Engineers use them to identify weak points in components. Results guide design improvements and maintenance schedules.

Can predictive diagnostics prevent equipment failure?

Yes. Predictive diagnostics use sensors and analytics to spot early warning signs. This approach allows operators to schedule maintenance before failures occur.

What role does HVAC play in telecom cabinet reliability?

HVAC systems control temperature and humidity. Proper operation prevents overheating and condensation. Reliable HVAC extends equipment lifespan and reduces downtime.
