Lightning Protection Design for Telecom Power Systems: Multi-Stage Protection Circuits vs Surge Suppressors

Lightning remains the leading cause of failures in telecom power systems, with studies showing over 60% of transmission line outages linked to lightning strikes. Industry standards and real-world data reveal that multi-stage protection circuits deliver higher reliability than single surge suppressors, especially under severe weather conditions.

Both direct and indirect protection remain essential, as dynamic lightning activity can increase failure probability by up to 58 times. Modern telecom power systems require adaptive solutions that address high-energy surges and transient events.

Key Takeaways

• Multi-stage protection circuits use several layers of devices to stop lightning surges before they reach sensitive telecom equipment, offering stronger and more reliable defense than single surge suppressors.

• Surge suppressors protect against indirect lightning and switching surges by quickly diverting excess voltage to the ground, but they may wear out over time and need replacement.

• Proper installation and reliable grounding are essential for both protection methods to work effectively and prevent equipment damage.

• Multi-stage circuits suit large, critical telecom sites needing long-term reliability and easy monitoring, while surge suppressors fit smaller setups with moderate surge risks and lower initial costs.

• Regular maintenance and inspections after storms keep protection systems working well and help avoid costly failures and downtime.

Multi-Stage Protection Circuits

How They Work

Multi-stage protection circuits use a layered approach to defend telecom power systems from lightning-induced surges. Each stage targets a specific threat, combining high-current and fast-acting components to intercept and suppress surges before they reach sensitive equipment. The design addresses both high-energy lightning strikes and fast transient surges, ensuring comprehensive protection.

Multi-stage protection circuits function through a coordinated sequence:

1. Primary Protection: Type 1 surge arresters intercept lightning surges at system entry points.

2. Secondary Protection: Type 2 arresters reduce voltage spikes at internal locations, such as server rooms.

3. Equipment-Level Protection: Devices like routers and switches receive additional protection through built-in or external arresters.

4. Complementary Measures: Tower lightning rods and grounding systems work alongside surge arresters to minimize damage.

5. Maintenance: Regular monitoring and upkeep maintain the effectiveness of all protection layers.

Components and Stages

A typical multi-stage circuit includes several specialized components arranged in sequence. The first line of defense often uses a TISP® thyristor surge protector, which activates when voltage exceeds a set threshold, diverting excess energy away from the load. Next, a TBU® high-speed protector blocks excessive current, disconnecting the load and the TISP® device from the power line. Metal oxide varistors (MOVs), GMOV™, and IsoMOV® hybrid protectors then clamp the voltage to safe levels. If the surge persists, a SinglFuse™ fuse opens to permanently disconnect the circuit, preventing further damage. This arrangement ensures that each component addresses a specific surge characteristic, enhancing the reliability of telecom power systems.

Pros and Cons

Multi-stage protection circuits offer several advantages. They reduce maintenance costs, extend equipment life, and safeguard data integrity by mitigating electrical surges. Fast-acting devices like transient voltage suppressors (TVS) respond in picoseconds, clamping dangerous voltages before they reach critical systems. Hot-swap controllers add features such as current sensing, thermal shutdown, and undervoltage lockout, which improve system robustness. However, these circuits require careful selection and installation. Components like fuses need replacement after a surge event, increasing maintenance demands. Improper design or installation can lead to fire hazards or equipment failure. Advanced protection schemes may also increase initial costs and design complexity, but they provide superior long-term reliability for telecom power systems.

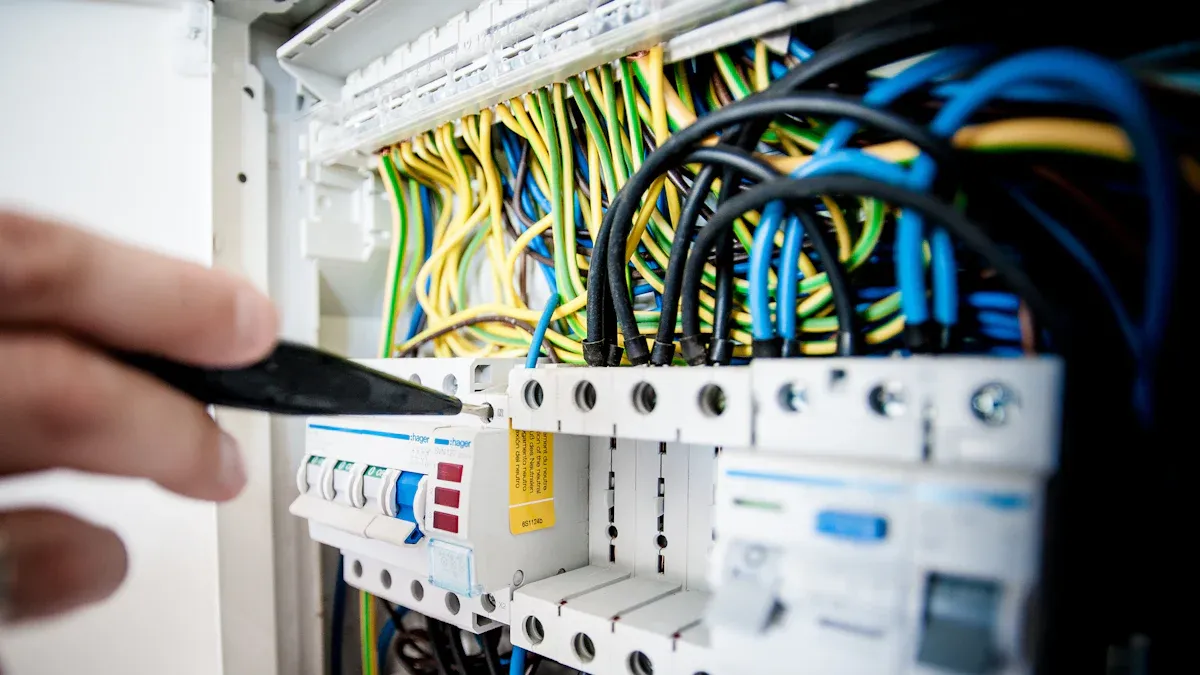

Surge Suppressors

Operation

Surge suppressors play a vital role in protecting telecom power systems from indirect lightning strikes and switching surges. These devices connect just before sensitive telecom equipment and to ground, providing a low-impedance path for transient over-voltages. Under normal conditions, components such as metal oxide varistors (MOVs), gas discharge tubes (GDTs), and transient voltage suppression (TVS) diodes remain inactive, simply monitoring voltage levels. When a surge occurs, these components react within nanoseconds, switching to a conductive state. They then divert excess energy safely to ground, preventing damage to critical equipment. The surge energy dissipates as heat, ensuring the system continues to operate. Reliable grounding is essential for this process. Without a low-resistance path to earth, surge suppressors cannot effectively protect telecom power systems.

Types and Applications

Telecom surge protectors are used on incoming and internal telephone lines, including POTS, ISDN, DSL, T1, and T3. They come in configurations such as terminal strips, modular jacks, and punch-down blocks, meeting standards like UL497A for low let-through voltage.

Strengths and Limitations

Note: Advanced surge suppressors can withstand multiple high-current surges, maintaining network uptime and protecting sensitive circuits.

Surge suppressors offer several strengths. They protect against switching surges and lightning-induced transients, extending equipment lifespan and reducing downtime. Advanced models, such as those using Strikesorb technology, do not require resetting or replacement after a surge, supporting continuous operation in critical telecom infrastructure. However, traditional devices like MOVs and GDTs may degrade or fail after a strong surge, requiring replacement. Some types respond more slowly, which can reduce effectiveness in fast transient environments. The effectiveness of any surge suppressor depends on proper installation and especially on reliable, low-resistance grounding. The National Electric Code recommends grounding resistance below 25 ohms, with sensitive telecom sites aiming for 5 ohms or less. Without proper grounding, even the best surge suppressors cannot fully protect telecom power systems.

Telecom Power Systems Protection Comparison

Effectiveness

Multi-stage protection circuits and surge suppressors both play critical roles in safeguarding telecom infrastructure. Multi-stage designs incorporate several protective technologies, including MOVs, gas discharge tubes, and TVS diodes. These components work together to intercept high-energy surges and clamp residual voltages to safe levels. Surge suppressors, while effective against indirect lightning and switching surges, often rely on a single technology and may not provide the same level of layered defense.

• Comparative studies reveal several key findings:

  • High-quality, multi-stage surge protection devices (SPDs) offer superior protection and longer life cycles due to redundancy and multiple fusing stages.

  • Real-world testing over five years showed that two out of three plug-in surge protectors failed to prevent equipment damage, despite similar claims.

  • SPD design quality and component selection significantly impact real-world effectiveness.

Multi-stage SPDs achieve fast response times and precise voltage control, making them highly effective for protecting sensitive telecom electronics. Surge arresters and lightning arresters handle bulk energy but lack the precision needed for delicate devices. Layered protection strategies, where multi-stage circuits are installed downstream of arresters, provide refined defense for telecom power systems.

Reliability

Reliability remains a top priority for telecom operators. Multi-stage protection circuits combine MOVs for high-energy absorption and TVS diodes for ultra-fast, precise clamping. These circuits often include intelligent monitoring and remote status reporting, which help maintain system integrity over time. TVS diodes do not degrade, ensuring consistent performance through repeated surge events.

Traditional surge suppressors, which rely mainly on MOVs, may degrade with repeated surges. This degradation reduces their effectiveness and increases the risk of failure in long-term operation. Multi-stage circuits, especially those with TVS diodes, maintain stable performance and extend equipment lifespan.

Cost

Cost considerations influence the selection of protection strategies. Multi-stage protection circuits require higher initial investment due to advanced components and integration. These systems often include intelligent monitoring and remote management features, which add to upfront costs. However, they reduce long-term expenses by minimizing equipment damage, downtime, and maintenance needs.

Surge suppressors present a lower initial cost and simpler installation. They suit small-scale or temporary setups but may require frequent replacement if exposed to repeated surges. Over time, the cost of replacing degraded suppressors and repairing damaged equipment can exceed the savings from lower upfront investment.

Tip: Investing in multi-stage protection circuits can lower total cost of ownership for large telecom installations by reducing downtime and maintenance.

Maintenance

Maintenance requirements differ between the two approaches. Multi-stage protection circuits feature modular components, such as fuses and MOVs, which technicians can replace individually. Intelligent monitoring systems alert operators to component failures, enabling proactive maintenance. TVS diodes, which do not degrade, further reduce maintenance frequency.

Surge suppressors often lack advanced monitoring. Technicians must inspect devices manually and replace units after strong surges. MOV-based suppressors degrade over time, increasing the risk of unnoticed failures. Regular testing and replacement become necessary to maintain protection levels.

• Maintenance checklist for telecom operators:

  • Inspect protection devices after major surge events.

  • Replace degraded MOVs and fuses as needed.

  • Monitor system status using remote management tools.

  • Verify grounding resistance remains below recommended thresholds.

Scalability

Scalability determines how well a protection strategy adapts to growing telecom networks. Multi-stage protection circuits integrate easily into rack-mounted power distribution units (PDUs) and cabinets. These systems protect entire equipment circuits and support centralized monitoring, making them ideal for large data centers and telecom facilities.

Surge suppressors suit small setups or individual devices. Scaling protection across a large network requires installing many units, which complicates management and increases maintenance workload. Multi-stage circuits offer a unified solution that grows with the network, supporting future expansion and evolving protection needs.

Multi-stage protection circuits provide scalable, layered defense for telecom power systems, supporting both current operations and future growth.

Choosing the Right Solution

When to Use Multi-Stage Circuits

Multi-stage protection circuits suit environments where equipment faces frequent high-energy surges and transient events. Engineers often select these systems for large data centers, central offices, and remote telecom sites with critical infrastructure. Multi-stage designs provide layered defense, combining devices such as MOVs, TVS diodes, and fuses. Operators should consider several factors when choosing this approach:

1. Select surge protective devices (SPDs) based on classification and testing level for each protection stage. Class I or II SPDs work best at main distribution points, while Class II or III fit dedicated equipment protection.

2. Evaluate protection distance and connecting wire length. Ensure the SPD's protection level remains below the equipment's impulse withstand voltage.

3. Maintain short, straight connecting wires—ideally less than 0.5 meters—to maximize protection.

4. Install additional SPDs at distribution points or near equipment if the distance from the first stage SPD exceeds 10 meters.

5. Coordinate energy matching between multiple SPD stages to prevent interference.

Multi-stage circuits deliver robust protection for Telecom Power Systems in high-risk areas, supporting long-term reliability and scalability.

When to Use Surge Suppressors

Surge suppressors offer practical solutions for smaller installations or locations with moderate surge risk. Technicians often deploy these devices near individual equipment, such as routers or switches, where indirect lightning strikes and switching surges pose the main threat. Surge suppressors work well when physical installation constraints limit the use of multi-stage circuits. Operators should follow these guidelines:

• Use surge suppressors for short cable runs and when equipment sits close to the main power entry.

• Choose hybrid suppressors for environments with mixed surge types.

• Ensure reliable grounding and keep connecting wires as short as possible.

• Install decoupling devices if the line length between different SPD types falls below 10 meters, unless energy matching functions exist.

Surge suppressors provide cost-effective protection for Telecom Power Systems in small offices, remote cabinets, and temporary setups.

Real-World Telecom Power Systems Examples

Telecom operators often face unique challenges when designing protection schemes. In a large urban data center, engineers installed multi-stage circuits with Class I SPDs at the main distribution panel and Class II SPDs at server racks. This configuration reduced downtime and equipment loss during severe storms. At a rural cell tower, technicians used surge suppressors with hybrid MOV-GDT technology to protect outdoor equipment from indirect lightning strikes. The short cable runs and reliable grounding ensured effective surge mitigation. In a remote repeater station, operators added additional SPDs near sensitive equipment due to the long distance from the main protection point. These examples highlight the importance of matching protection strategies to site conditions and equipment needs.

Tip: Telecom engineers should assess site layout, surge risk, and equipment sensitivity before selecting a protection method. Coordinated protection ensures network reliability and minimizes maintenance.

Implementation Tips

Selection Guidelines

Selecting the right lightning protection devices requires careful consideration of system requirements and industry standards. Engineers should:

• Choose surge protection devices (SPDs) based on classification, such as Type 1, Type 2, or Type 1+2, and verify performance parameters.

• Ensure compliance with IEC 61643 standards for low-voltage surge protection.

• Assess system voltage level, grounding conditions, and the nature of connected equipment before making a selection.

• Evaluate installation factors, including device position and wiring length, to minimize residual voltage and improve response time.

• Select antenna feeder arresters with adequate surge current capacity and frequency response to protect communication networks.

• Confirm that SPDs offer suitable voltage protection levels and energy absorption capabilities.

• Prioritize devices with low residual voltage and fast response times for sensitive electronics.

• Coordinate signal SPDs with power surge protectors to achieve comprehensive protection.

Tip: Coordination between upstream and downstream protective devices maintains system safety and signal integrity.

Installation

Proper installation ensures that lightning protection devices function as intended. Technicians should follow these best practices:

1. Use low-impedance grounding systems, such as ground rings around buildings and towers, to dissipate lightning energy efficiently.

2. Bond all grounding points together using methods like Star-IBN or Mesh-IBN for a unified grounding network.

3. Protect incoming AC and DC power feeders with SPDs to handle voltage transients.

4. Install SPDs that activate quickly and can momentarily short-circuit surge energy to ground.

5. Ground coaxial feeders at strategic points, such as the top of telecom towers, and maintain continuous feeder trays.

6. Select appropriate grounding materials, including copper-bonded steel conductors and electrodes.

7. Verify correct installation of SPDs on both ends of DC power and Ethernet cables.

8. Apply DC surge protection on both positive and negative lines to ground, and consider line-to-line protection for grounded DC systems.

9. Ensure proper AC power surge protection at the main power source.

10. Confirm reliable ground connections, as inadequate grounding often leads to equipment failure.

Note: Avoid common errors such as coiling ground wire, using thin wire gauges, and creating multiple grounding points, which increase resistance and reduce protection effectiveness.

Maintenance

Routine maintenance preserves the effectiveness of lightning protection systems. Operators should:

1. Conduct regular safety checks, including testing circuit breakers, fuses, and verifying grounding.

2. Maintain detailed records of inspections, repairs, and issues to track performance.

3. Establish preventive maintenance schedules based on manufacturer guidelines and site conditions.

4. Implement predictive maintenance techniques, such as thermal imaging and vibration analysis, to anticipate failures.

5. Ensure all personnel receive technical training and follow safety protocols, including lockout/tagout and use of PPE.

6. Inspect batteries and power modules regularly, using advanced management systems to monitor health and charge levels.

7. Manage equipment load properly by sizing power supplies and employing modular designs.

8. Integrate protective devices like LLVDs, BLVDs, and circuit breakers for ongoing system protection.

9. Perform regular cleaning and inspection to prevent dust accumulation and corrosion.

10. Use maintenance-free batteries when possible to reduce service needs and improve safety.

Regular maintenance and proper installation practices ensure reliable lightning protection and long-term system resilience.

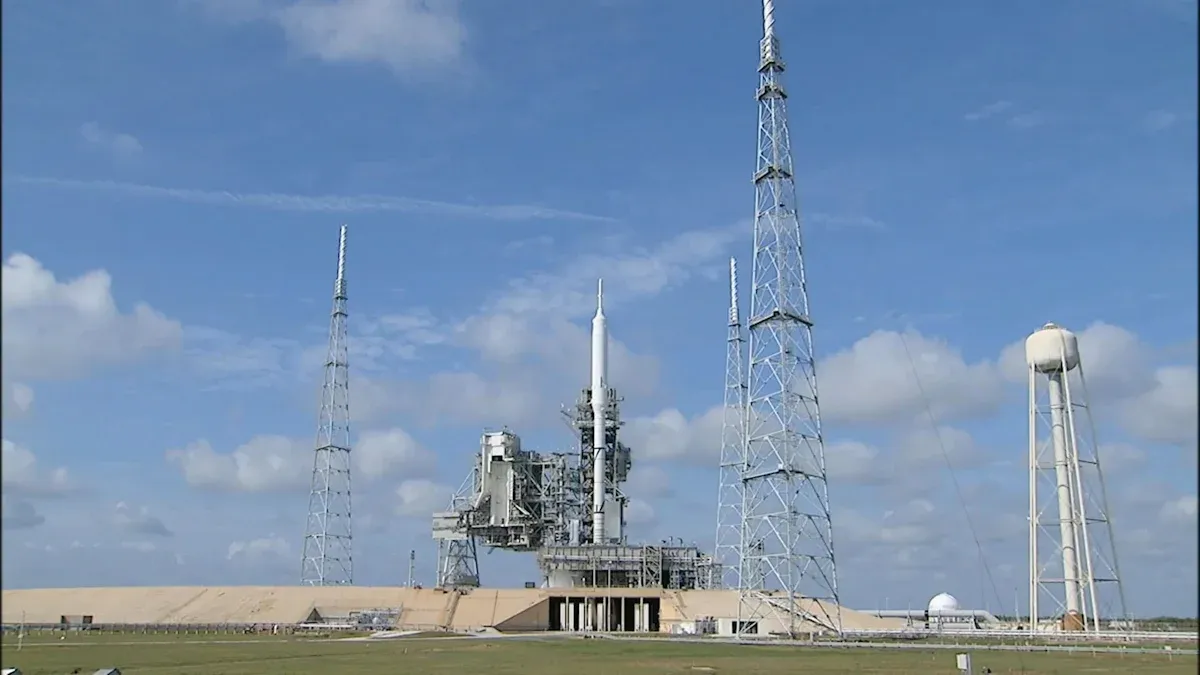

Industry experts recommend a comprehensive approach for Telecom Power Systems, combining external protection with isolated down conductors, robust grounding, and internal surge arresters. This multi-layered strategy preserves equipment, ensures network reliability, and aligns with international standards like IEC 62305 and NFPA 780.

Telecom engineers and managers should assess site-specific risks, consult current guidelines, and seek expert advice to design effective lightning protection. Protecting critical infrastructure demands ongoing attention and a systematic, standards-based approach.

FAQ

What is the main difference between multi-stage protection circuits and surge suppressors?

Multi-stage protection circuits use several components in sequence to handle different surge types. Surge suppressors usually rely on a single device. Multi-stage designs offer layered defense, which increases reliability for telecom power systems.

How often should telecom operators inspect lightning protection devices?

Experts recommend inspecting protection devices after every major storm. Operators should also schedule routine checks every six months. Regular inspections help identify degraded components and maintain system reliability.

Can surge suppressors protect against direct lightning strikes?

Surge suppressors cannot handle direct lightning strikes. They protect equipment from indirect surges and voltage spikes. For direct strikes, operators must use external lightning arresters and robust grounding systems.

What standards should telecom engineers follow for lightning protection?

Engineers should follow these standards to ensure effective and compliant protection.
