Telecom Cabinet Communication Power + PV + Storage: Key Design Points for Multi-Energy Complementary Systems — Image Source: pexels

Multi-energy complementary systems combine communication power, photovoltaic generation, and energy storage within telecom cabinets. These systems optimize capacity and energy use, improving reliability and efficiency for Telecom Power Systems. Engineers achieve higher energy efficiency by integrating electric power generation, cooling, and heating. Complementarity of renewables such as solar and wind enhances cost performance and supports stable, decentralized power supply. Incorporating energy storage further increases supply stability and enables precise matching of energy sources.

Key Takeaways

Combining solar power, energy storage, and communication power in telecom cabinets boosts reliability and cuts energy costs.
Proper sizing of solar panels and batteries ensures stable power supply and prepares systems for future growth.
Smart controllers and remote monitoring help detect problems early, reduce downtime, and extend equipment life.
Redundancy with extra modules and modular designs keeps telecom systems running smoothly even if parts fail.
Good thermal management and climate protection improve system durability and reduce maintenance needs.

System Architecture

Key Components

Telecom Power Systems rely on a combination of advanced components to ensure reliable and efficient operation. The main elements include:

Communication Power Supply: Delivers uninterrupted DC power to telecom equipment, even during outages.
Photovoltaic (PV) Modules: Capture solar energy and convert it into electricity, reducing dependence on the grid.
Energy Storage Units: Typically lithium-ion batteries, these store excess energy for use during low solar production or grid failures.
Charge Controllers: Manage the flow of energy from PV modules to batteries and equipment. MPPT (Maximum Power Point Tracking) controllers offer up to 99% efficiency, maximizing solar energy harvest and supporting a wide range of solar arrays.
Power Distribution Units (PDUs): Distribute power to various loads within the cabinet, ensuring stable operation.
Controllers and Monitoring Systems: Enable real-time diagnostics, predictive maintenance, and remote management, which are essential for minimizing downtime.
Optional Hydrogen Storage: Hydrogen fuel cell generators provide clean backup power, especially valuable in extreme environments.

The table below summarizes common system architectures used in Telecom Power Systems:

Architecture Type	Description	Key Features
Intermediate Bus Architecture (IBA)	Uses a semiregulated intermediate bus voltage (42-50V) to reduce distribution losses.	High efficiency; employs niPOLs for final voltage regulation.
Factorized Power Architecture (FPA)	Builds on IBA by using fixed ratio converters for isolation and current multiplication, eliminating the intermediate bus.	Further improves efficiency by avoiding intermediate bus losses.

Note: Technical standards such as SCTE 267, ANSI/SCTE 271, and IEEE 2030 series provide guidelines for system design, monitoring, and interoperability, supporting safety and reliability in multi-energy telecom power systems.

Integration of PV and Storage

Effective integration of PV and storage with traditional power sources forms the backbone of modern Telecom Power Systems. Engineers use several strategies to optimize performance and sustainability:

Integration Strategy	Description & Benefits
System Size Optimization	Tailors solar and hybrid systems to telecom energy demands, ensuring reliable power without overspending.
Hybrid Systems	Combines solar, wind, diesel, and battery storage for flexibility, reliability, and reduced emissions.
Battery Storage	High-capacity batteries provide uninterrupted power during outages or low solar input.
Solar Charge Controllers	MPPT controllers improve efficiency by up to 30% compared to traditional types.
Inverters	High-efficiency inverters (95-98%) convert DC to AC with stable output and remote monitoring.
Monitoring & Maintenance	Remote monitoring and routine maintenance extend system life and enable early issue detection.
Space & Structural Solutions	Modular, compact designs address limited space in urban telecom sites.
Financial Viability	Hybrid systems lower operational costs and emissions compared to diesel-only setups.
Scalability	Modular systems allow easy expansion to meet growing energy needs.
Environmental Benefits	Hybrid systems significantly reduce greenhouse gas emissions.

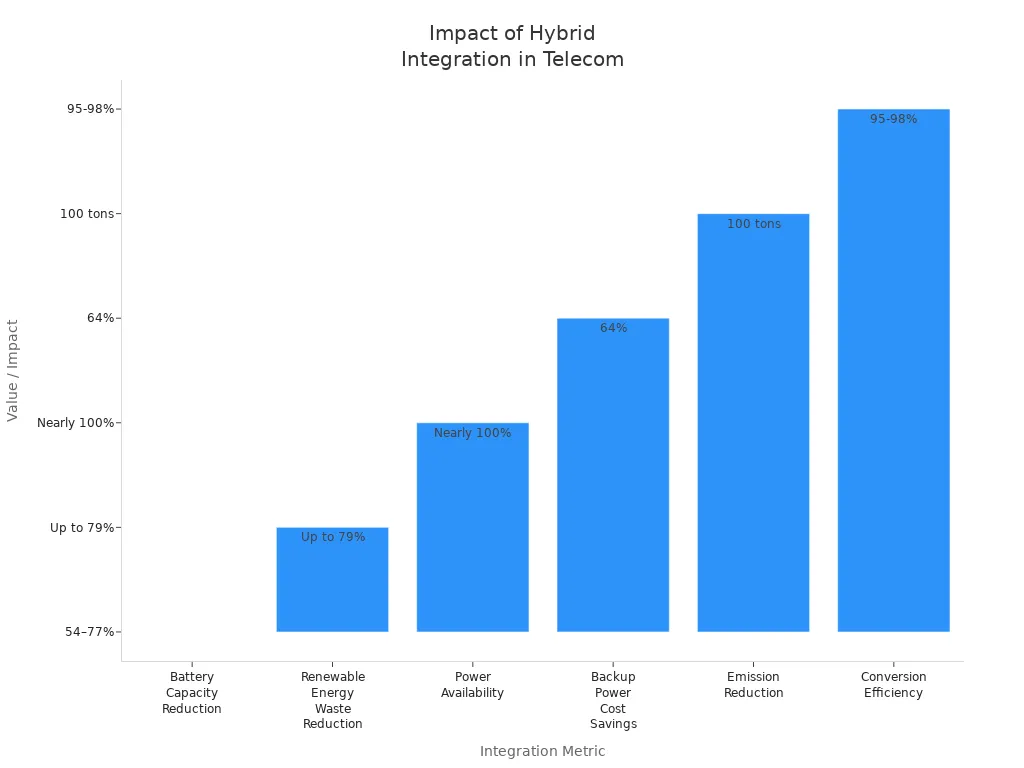

Bar chart comparing integration impacts for PV, storage, and traditional power in telecom cabinets

Telecom Power Systems benefit from hybrid integration by achieving nearly 100% power availability and reducing battery size requirements by up to 77%. Advanced controllers and smart monitoring further enhance efficiency and reliability. Modular and scalable cabinet designs support future upgrades, while hydrogen fuel cells and next-generation batteries offer promising solutions for backup power and sustainability.

Sizing and Planning

Load Analysis

Accurate load analysis forms the foundation of reliable Telecom Power Systems. Engineers begin by listing every device inside the cabinet and recording each one's power consumption and operating hours. They calculate the internal heat load by multiplying each device's power by its runtime, then sum these values. For external heat load, they use the cabinet's material properties, surface area, temperature difference, and solar heat gain coefficient. The formula Q_r = (U × A × ΔT) + (SHG × A) helps determine this value, where U is the heat transfer coefficient, A is the surface area, ΔT is the temperature difference, and SHG is the solar heat gain coefficient. Adding internal and external loads gives the total heat load, which is then multiplied by a safety factor—usually 1.2—to account for environmental changes and future growth. This comprehensive approach guides the sizing of cooling systems and backup power.

Remote monitoring, AI-driven predictive maintenance, and regular audits further enhance accuracy. Real-time tracking and predictive analytics help reduce downtime and maintenance costs by identifying issues early. Engineers also plan for future growth and evolving regulations by choosing scalable, standards-compliant solutions.

Power Demand Category	Typical Power Range (kW)	Deployment Environment
Low Power	Up to 2–3 kW	Small cells, urban micro base stations (urban)
Medium Power	3–10 kW	Macro towers, suburban installations (urban/suburban)
High Power	Above 10 kW	Large macro towers, rural sites, multi-tenant towers (rural and some urban)

Load fluctuations can increase thermal stress on rectifier modules. Modular rectifier designs and effective cooling strategies, such as air or liquid cooling, help maintain efficiency and extend equipment lifespan.

PV Sizing

Proper PV sizing ensures stable operation and cost efficiency. Engineers consider several factors:

Power output requirements must match both continuous and peak demands.
Load fluctuations, such as those from cooling fans or emergency operations, require oversizing for stability.
Environmental conditions like weather variability, dust, and harsh climates affect panel efficiency.
Future expansion needs favor modular or larger PV systems.
Installation constraints, including available space and budget, influence panel selection.
Maintenance considerations balance the number of panels with reliability.
Battery capacity must align with panel output for continuous operation during low sunlight.

Factor	100W Panel Characteristics	200W Panel Characteristics
Power Output	Suitable for smaller or less fluctuating loads	Supports larger or multiple devices and load spikes
Space Requirement	Smaller footprint, easier to install	Larger footprint, may require reinforced mounts
Cost	Lower initial investment	Higher upfront cost but fewer panels needed
Maintenance	More panels to clean and inspect	Fewer panels, simpler maintenance
Durability	Adequate for mild climates	Better for harsh environments
Load Handling	May struggle with spikes and cloudy weather	Buffers load spikes and environmental variability
Future-proofing	Limited scalability	Supports upgrades and expansion
Battery Capacity	Recommended ~65Ah	Recommended ~130Ah

Field experience shows that oversizing solar modules helps compensate for losses from dust and system aging. High-quality, weather-resistant panels reduce maintenance visits, especially during harsh seasons. Choosing higher wattage panels provides a larger energy reserve, protecting sensitive telecom equipment and reducing service interruptions.

Storage Sizing

Selecting the right storage capacity is critical for uninterrupted operation. Engineers assess environmental conditions, such as temperature range and ingress protection ratings, to ensure reliability. They choose power systems with high energy efficiency—above 90%—to lower operational costs and heat generation. Scalable and modular systems allow for future expansion. Redundancy, such as N+1 or N+2 configurations, ensures continuous power for mission-critical applications. Voltage and current requirements must match the equipment in the cabinet.

Other important considerations include the physical size and weight of storage units to prevent overcrowding and overheating. Proper cooling and ventilation maintain safe operation. Security features, such as lockable doors, protect sensitive electronics. Careful cabinet layout planning optimizes performance and accessibility.

Technology	Advantages
Hybrid Energy Storage	High energy density and rapid charge/discharge, ideal for high power needs.
Quantum Dot Batteries	Higher energy density, faster charging, longer cycle life.
Organic Battery Materials	Eco-friendly, abundant, biodegradable, with improved energy density potential.
Silicon Anode Technology	Higher energy capacity and longer lifespan.
Solid-State Batteries	Higher energy density, safety, and longer cycle life.

Lithium-ion batteries dominate Telecom Power Systems due to their high energy density, long lifespan, and low maintenance. Lead-acid and nickel-cadmium batteries remain options for specific environments. Emerging technologies promise further improvements in energy density, safety, and sustainability. Proper installation and regular maintenance maximize reliability and performance.

Telecom Power Systems Control

Energy Flow

Telecom Power Systems rely on dynamic energy flow management to maintain reliable operation under various scenarios. These systems operate in several smart microgrid modes, each with distinct energy flow patterns:

Grid-connected mode: Energy moves both ways between the telecom cabinet and the main grid. This bidirectional flow helps balance supply and demand, especially during peak periods or when renewable generation fluctuates.
Islanded mode: The system disconnects from the main grid and depends on stored energy and renewables like solar or wind. This mode ensures telecom services continue during grid outages.
AC Microgrid (ACMG): Energy flows primarily as alternating current, supporting equipment that requires AC power.
DC Microgrid (DCMG): Direct current flows dominate, which improves efficiency for DC-powered telecom loads.
Hybrid Microgrid (HMG): Both AC and DC flows exist, allowing the system to adapt to different load types and generation sources.

Operators use intelligent load balancing to prioritize critical telecom equipment during high demand or limited supply. The system instantly switches to stored energy during outages, ensuring continuous operation. In remote or grid-limited sites, islanded operation and renewable integration become essential for reliable service. Real-time monitoring and adaptive control further optimize energy use and system resilience.

Power Quality Controllers

Maintaining stable operation in Telecom Power Systems requires advanced power quality controllers. These controllers monitor and regulate key electrical and environmental parameters to protect sensitive equipment and optimize performance.

KPI Metric	Purpose	Benefit
Current (A)	Maintain safe load balance	Prevent overloads
Voltage (V)	Ensure stable power delivery	Protect equipment
Active Power (W)	Track real-time consumption	Manage capacity
Apparent Power (kVA)	Assess total power demand	Improve power quality
Energy (kWh)	Monitor cumulative usage	Identify efficiency trends
Temperature/Humidity	Maintain optimal environment	Extend equipment lifespan

Operators track these metrics using smart controllers that support real-time monitoring and automated alerts. MQTT-enabled controllers provide lightweight, secure messaging and enable fast response to faults. These controllers, combined with Modbus and RS485 protocols, deliver robust data exchange even in harsh environments. Predictive maintenance features reduce mean time to repair by up to 35% and improve maintenance response times by 40%. As a result, equipment uptime increases by 20%, and unplanned outages decrease by up to 50%. The publish-subscribe model of MQTT supports scalable, secure cloud integration, making it ideal for managing multiple devices and legacy systems in Telecom Power Systems.

MPPT controllers play a crucial role in optimizing energy flow from solar modules to batteries. They maximize energy harvest by adjusting voltage and support a wide range of solar arrays. MPPT controllers offer up to 99% efficiency, outperforming traditional PWM controllers, especially in variable sunlight or colder conditions. Smart Battery Management Systems (BMS) work alongside these controllers to monitor voltage, current, and temperature, ensuring safe and balanced charging and discharging. Remote monitoring and AI-driven analytics further enhance power quality and system reliability.

Tip: Integrating environmental sensors with power quality controllers helps detect risks like overheating or water ingress early, preventing equipment damage and downtime.

Redundancy

Redundancy strategies are essential for ensuring high availability in Telecom Power Systems. Operators often use modular designs and spare capacity to eliminate single points of failure. The most common redundancy configurations include:

Redundancy Type	Description	Resilience	Cost	Typical Use Cases
N+1	N units plus 1 spare module to cover failure of any single unit	Handles one failure without downtime	Moderate	Widely used in telecom solar power setups
2N	Two independent full sets of N units	Handles multiple failures simultaneously	High	Critical facilities needing near-zero downtime
2(N+1)	Two independent N+1 systems	Highest redundancy, handles multiple simultaneous failures	Very high	Mission-critical operations like telecom networks and data centers

N+1 redundancy is the preferred choice for balancing cost and reliability. One extra module ensures continuous operation if a component fails. Modular, scalable designs allow easy expansion and maintenance. Hot-swappable modules minimize downtime during repairs. Integration with hybrid solar-battery systems and AI-enabled monitoring further enhances reliability.

Operators select modules with advanced cell technology and robust enclosures to improve durability. For example, 200W modules offer higher reliability and easier maintenance compared to smaller modules. AI-driven predictive analytics and proactive monitoring prevent up to 80% of recent outages and reduce downtime by up to 50%. Maintenance costs drop to 7% of traditional systems, and battery failure rates decrease by 98%. These improvements make redundancy a cornerstone of resilient Telecom Power Systems.

Note: Combining N+1 redundancy with advanced monitoring and modular design maximizes uptime and operational reliability, even in challenging environments.

Environmental Factors

Climate Impact

Environmental conditions play a critical role in the performance and longevity of telecom cabinet power systems. Several climate-related factors require careful consideration:

Ambient Temperature: High outdoor temperatures demand active cooling to protect sensitive electronics.
Solar Exposure and Heat Sources: Direct sunlight and nearby industrial heat increase thermal load, making insulation and shading essential.
Humidity and Condensation: Elevated humidity can cause condensation, leading to electrical faults and corrosion.
Airborne Contaminants: Dust, salt, and chemical vapors can clog filters and corrode components, especially in coastal or industrial areas.
Water, Snow, and Cleaning: Exposure to rain, snow, or high-pressure cleaning requires sealed, corrosion-resistant cabinets.
Ultraviolet (UV) Radiation: UV rays degrade cabinet coatings and raise internal temperatures, shortening equipment lifespan.

Every 10°C rise in temperature can halve the lifespan of electronic components. Proper climate adaptation extends equipment reliability and reduces maintenance costs.

Thermal Management

Effective thermal management ensures stable operation and protects against environmental extremes. Telecom cabinets benefit from a combination of passive and active cooling solutions. Weatherproof sealing and corrosion-resistant materials shield PV panels and electronics from rain, humidity, and dust. Integrated thermal management systems use passive ventilation, heat exchangers, and active cooling—such as micro air conditioners or fan-assisted systems—to maintain safe internal temperatures. Filters block dust and contaminants, while climate-controlled enclosures and smart monitoring software optimize battery performance and energy delivery.

Regular cleaning and inspection prevent dust buildup and moisture damage.
Smart thermal management tools and remote monitoring enable early detection of faults.
Hybrid cooling systems balance energy efficiency with precise temperature control.

Operators should maintain cabinet temperatures between 20°C and 24°C for optimal performance.

Installation

Proper installation ensures both safety and long-term performance. The following table summarizes key guidelines:

Installation Guideline	Explanation
Proper Ventilation	Ventilation slots dissipate heat from telecom equipment.
Environmental Considerations	Select cabinets based on local risks like dust, earthquakes, or moisture.
Easy Access	Design for straightforward maintenance and upgrades.
Cable Management	Organize cables to simplify repairs and maintain a clean setup.

Additional best practices include choosing rust-proof, corrosion-resistant cabinets, securing them on stable foundations, and sealing all openings to prevent water ingress. Compliance with NEMA and IP ratings ensures protection against dust and moisture. Regular maintenance, including remote monitoring, helps detect issues early and extends cabinet lifespan.

Safety and Maintenance

Standards

Safety in multi-energy telecom cabinet systems starts with adherence to international and regional standards. The use of -48VDC in telecom cabinets provides a recognized safety advantage. This voltage level remains below the 50V DC threshold, reducing electric shock risk. Negative voltage also helps minimize corrosion and electrochemical reactions, protecting metal components and ensuring long-term reliability. Grounding the positive terminal further stabilizes the system and limits leakage currents.

Several international standards guide the design and operation of these systems. IEC 60950-1 focuses on preventing electric shock, fire, and mechanical hazards in information technology equipment. IEC 60065 addresses safety for audio and video equipment, while IEC 60601-1 sets higher protection levels for insulation and leakage current. For PV and storage components, certifications such as UL, CE, and enclosure ratings like NEMA 4X or IP66 confirm compliance with safety and environmental requirements.

Certification/Standard	Description/Requirement	Application/Importance
UL, CE	International safety compliance	Product safety and reliability
IEC 61508, UL 508, IEC 62368, ISO 14971	Hybrid system safety and risk management	Framework for safe operation
NEMA/IP Ratings	Dust, water, and rust protection	Outdoor and indoor cabinet safety
Voltage Compliance	UL 62368-1, IEC 62368-1	Safe voltage operation

Maintenance

A structured maintenance schedule ensures the reliability and longevity of Telecom Power Systems. Operators perform daily and monthly checks, inspecting antennas, wiring, and equipment configuration. Backup tests verify system readiness. Seasonal maintenance adapts to environmental changes:

Summer: Clean outdoor cabinets, control temperature with fans or AC, inspect generators and battery backups.
Fall: Remove debris, inspect for hazards, check weatherproofing on cables and cabinets.
Winter: Protect equipment from freezing, maintain heaters and humidifiers, ensure uptime during storms.
Spring: Test commercial power efficiency, check backup systems, prevent water damage, and conduct site visits.

Routine cleaning, visual inspections, and backup system tests form the core of preventive maintenance. These steps help avoid unexpected failures and extend equipment life.

Remote Monitoring

Remote monitoring technologies play a vital role in maintaining system reliability. Intelligent PDUs, temperature and humidity sensors, and security devices provide real-time data. Operators use centralized dashboards to track environmental and power metrics across multiple sites. Customizable alerts notify teams of temperature spikes, power fluctuations, or unauthorized access.

Hardware Component	Key Features	Role in Reliability
Intelligent PDUs	Remote control, surge protection, scalability	Proactive power management
Temperature/Humidity Sensors	Multi-point monitoring	Prevent overheating and moisture damage
Security Sensors	Access and CCTV monitoring	Physical security

Predictive maintenance tools analyze sensor data to forecast failures and schedule timely interventions. Integration with communication platforms enables rapid response. These technologies reduce downtime, lower maintenance costs, and support the continuous operation of Telecom Power Systems.

Telecom Power Systems benefit from integrating solar collectors, Stirling engines, thermoelectric devices, and PEMFCs, which deliver reliable power in remote locations. Operators achieve lower costs and reduced environmental impact by optimizing system scheduling and capacity. Recent deployments highlight the value of life cycle analysis and advanced optimization methods.

For practical implementation, engineers should:

Assess site-specific energy needs
Select scalable, modular components
Prioritize remote monitoring and predictive maintenance
Adapt to new technologies and evolving site conditions

FAQ

What is the main advantage of integrating PV and storage in telecom cabinets?

Operators achieve higher reliability and lower energy costs. PV modules supply clean power, while storage units provide backup during outages. This combination supports continuous telecom service and reduces dependence on grid electricity.

How often should engineers perform maintenance on telecom cabinet systems?

Engineers should inspect systems monthly. They check wiring, clean panels, and test backup power. Seasonal adjustments help prevent failures caused by temperature changes or weather events.

Which standards ensure safety in multi-energy telecom power systems?

The table below lists key standards:

Standard	Purpose
IEC 60950-1	Electrical safety
UL, CE	Product compliance
NEMA/IP	Environmental protection

Can remote monitoring reduce downtime in telecom power systems?

Remote monitoring enables operators to detect faults early. They receive alerts for temperature spikes or power issues. This proactive approach minimizes downtime and improves system reliability.
